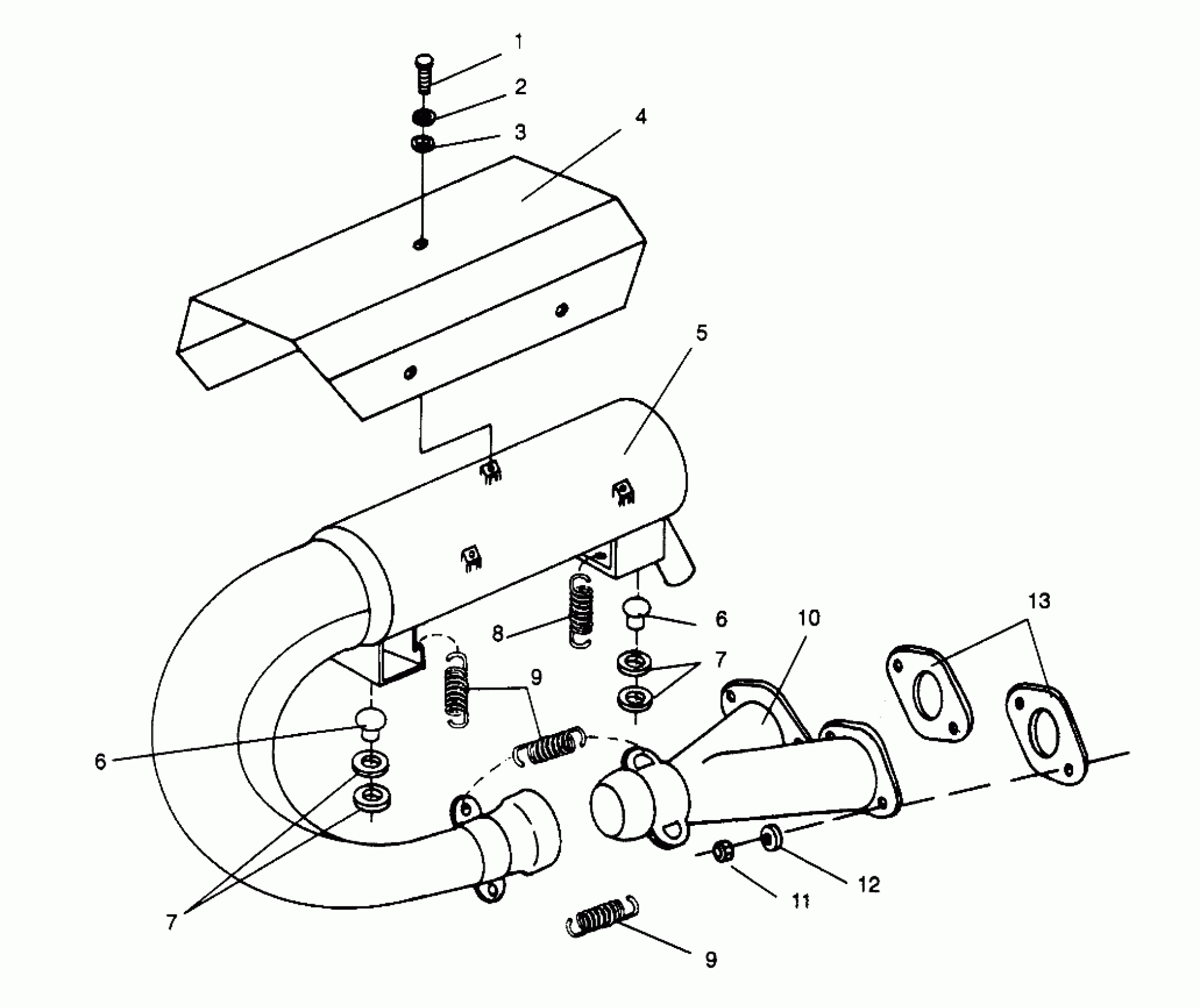

Polaris LITE - 0963433 EXHAUST SYSTEM LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166C001) Diagram

#

Description
Price

1

BOLT(10)

7515354

$3.99

2

WASHER(10)

7555734

$1.49

3

LOCK WASHER(10)

7552901

$1.49

4

SHIELD, MUFFLER

5222704

Unavailable

5

MUFFLER,(LITE GT)

1260578-029

Unavailable

6

DAMPNER, VIB.

5410467

$8.79

6

DAMPNER, VIB.

5410467

$8.79

7

WASHER(10)

7555726

Unavailable

7

WASHER(10)

7555726

Unavailable

8

SPRING-EXHAUST(10)

7042029

$4.84

9

SPRING, EXHAUST(10)

7042031

$5.65

9

SPRING, EXHAUST(10)

7042031

$5.65

10

Manifold

1260497-029

Unavailable

11

Nut (See Pg. A31, Ref. 5)

-------

Unavailable

12

Washer, Lock (See Pg. A31, Ref. 6)

-------

Unavailable

13

Gasket, Compl., Exhaust Non-Asbestos (See Pg. A31, Ref. 7)

-------

Unavailable
