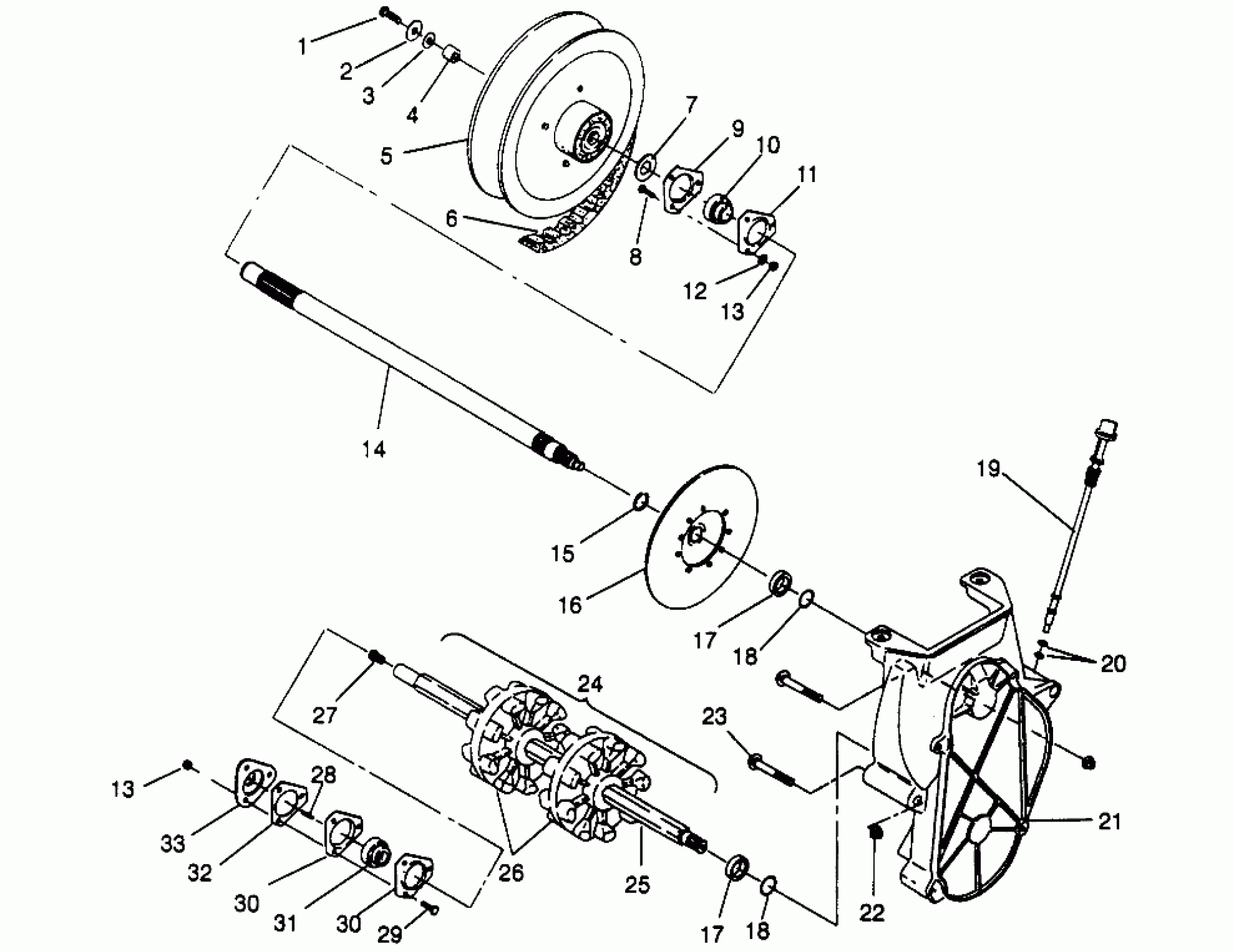

Polaris LITE - 0963433 DRIVE TRAIN LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166B007) Diagram

#

Description
Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER,DRIVEN CLUTCH

5020645

Unavailable

5

Asm., Driven Clutch (See Pg. A25, Ref. 1)

-------

Unavailable

6

BELT, DRIVE(5)

3211058

$79.99

7

WASHER SPECIAL(10)

7556509

Unavailable

8

BOLT(10) Substituted by 7512377

7512394

Unavailable

9

FLANGETTE,(GREASABLE)

5222647

$24.27

10

BEARING,JACKSHAFT

3514519

$64.99

11

FLANGETTE, (2-BOLT)

5222393

Unavailable

12

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

JACKSHAFT ASM. (Incl. 15)

1332146-067

Unavailable

15

RING, RETAINING(10)

7710422

$3.99

16

DISC ASM, BRAKE

1910086

Unavailable

17

SLEEVE, SEAL

5020588

$23.99

17

SLEEVE, SEAL

5020588

$23.99

18

O RING,(10)

5410613

$1.99

18

O RING,(10)

5410613

$1.99

19

DIPSTICK Substituted by 1332143

5431419

Unavailable

20

O-RING

5410675

$1.60

21

Cover, Chaincase (See Pg. A19, Ref. 15)

-------

Unavailable

22

NUT(10)

7542423

$3.99

23

BOLT(10)

7515428

$4.79

24

DRIVESHAFT ASM,HD,2DR Substituted by 1590250 (Incl. 25-27)

1590249

Unavailable

25

SHAFT,DRIVE(HI.STRENGTH)

6230083

Unavailable

26

SPROCKET, 9T

5430571

Unavailable

27

BUSHING METAL SPEEDO

3280019

$11.99

28

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

29

BOLT(10)

7512331

$3.99

30

FLANGETTE

5222751

$16.44

30

FLANGETTE

5222751

$16.44

31

BEARING,DRIVESHAFT

3514518

$64.99

32

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

33

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
