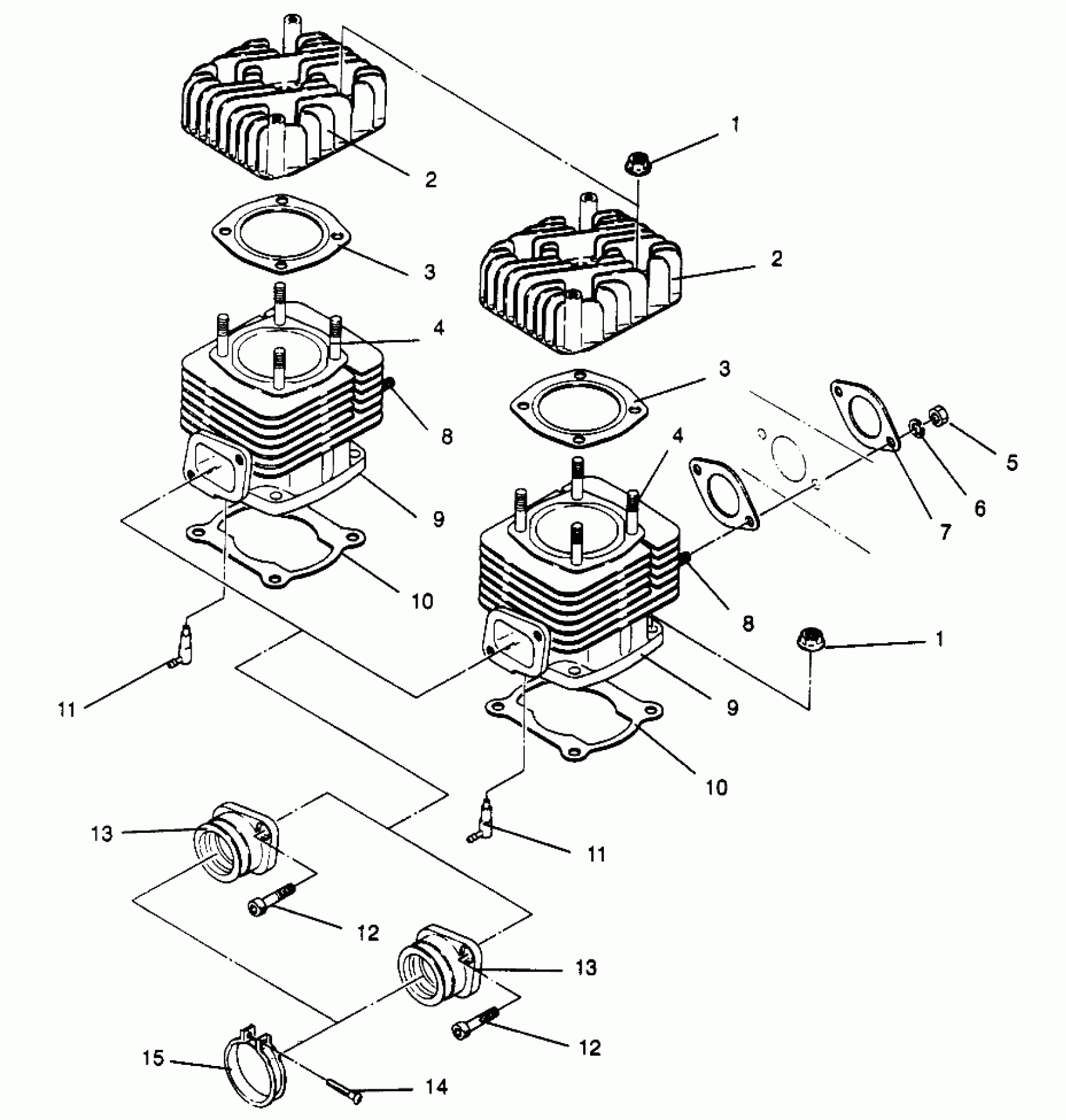

Polaris LITE - 0963433 CYLINDER LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166C005) Diagram

#

Description
Price

1

NUT-FLANGE(10)

3082910

$2.39

1

NUT-FLANGE(10)

3082910

$2.39

2

Head, Cylinder

3083573

$133.32

2

Head, Cylinder

3083573

$133.32

3

GASKET, HEAD Substituted by 3085844 (Head) Non-Asbestos

3084021

Unavailable

3

GASKET, HEAD Substituted by 3085844 (Head) Non-Asbestos

3084021

Unavailable

4

Stud

3080283

$12.94

4

Stud

3080283

$12.94

5

NUT(10)

3080285

Unavailable

6

WASHER LOCK ,(10)

3080530

$3.19

7

GASKET Substituted by 3085845

3084023

Unavailable

8

STUD (10)

3080016

$5.75

8

STUD (10)

3080016

$5.75

9

CYLINDER (Incl. 4, 8)

3083570

$507.94

9

CYLINDER (Incl. 4, 8)

3083570

$507.94

10

GASKET, CYL. Substituted by 3085843

3084022

Unavailable

10

GASKET, CYL. Substituted by 3085843

3084022

Unavailable

11

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

11

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

12

Bolt, Allen

3081330

$3.99

12

Bolt, Allen

3081330

$3.99

13

Adapter

3083576

Unavailable

13

Adapter

3083576

Unavailable

14

SCREW,(10)

3081497

$2.39

15

BAND-CARB MTG. (Incl. 14)

3082257

Unavailable
