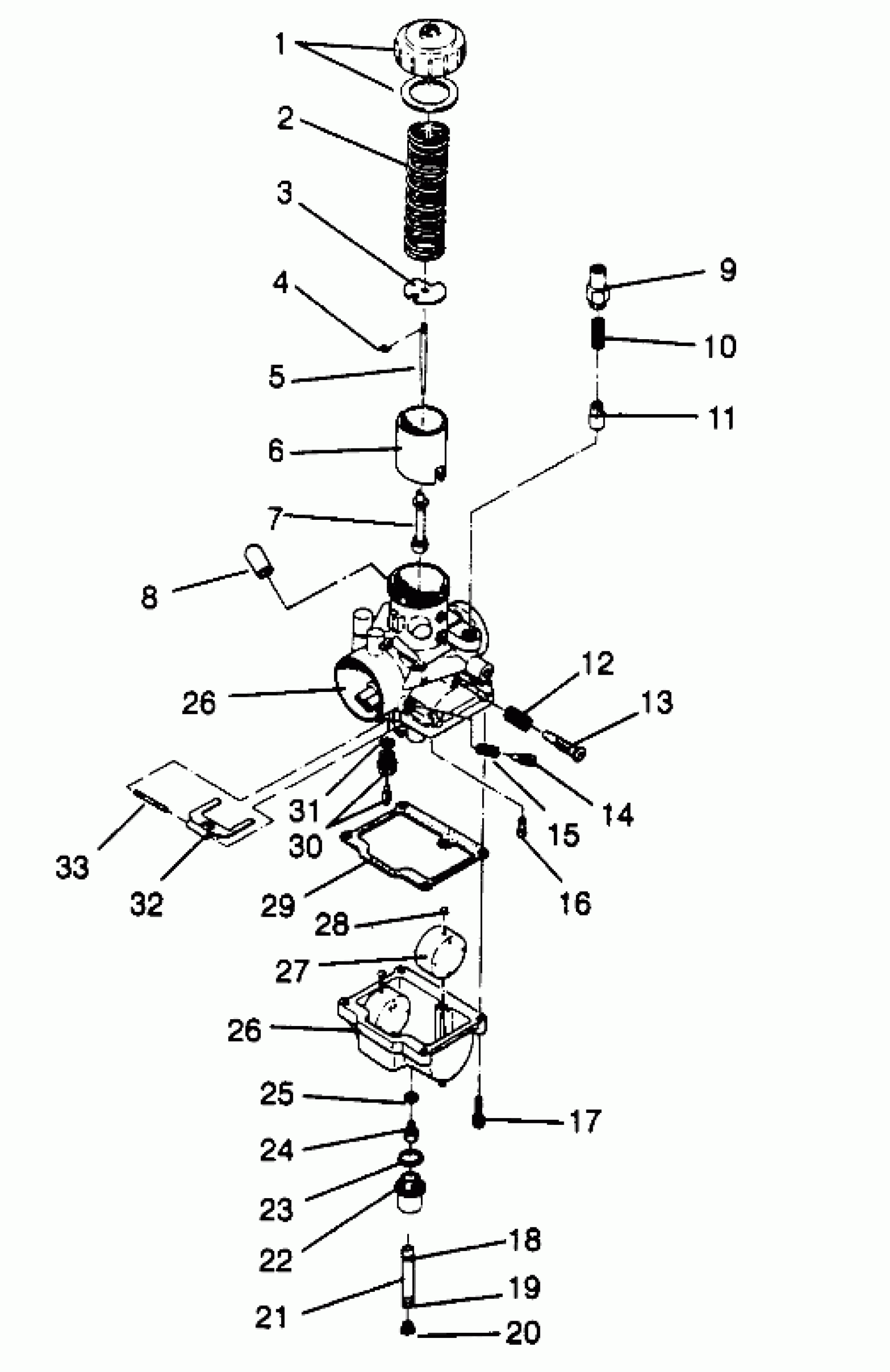

Polaris LITE - 0963433 CARBURETOR LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166C007) Diagram

#

Description
Price

1

TOP,MIX CHAMBER (Incl. Gasket)

3130060

Unavailable

2

SPRING,THROTTLE

3130354

$28.32

3

PLATE,THROTTLE

3130002

$20.22

4

E RING(10) Substituted by 3130508

3130003

Unavailable

5

JET NEEDLE Substituted by 3130155 (5DP7-2)

3130356

$24.27

6

VALVE,THROTTLE,2.5 (2.5)

3130468

$36.41

7

NEEDLE JET, O-6 (169)

3130469

$32.37

8

CAP

3130479

$14.56

9

Cap, Plunger

3130359

$14.56

10

SPRING,PLUNGER

3130006

$8.89

11

PLUNGER ASM, STARTER

3130328

$32.37

12

SPRING,THROTTLE ADJ.

3130010

$8.89

13

Screw, Throttle Stop

3130324

$19.84

14

SCREW,AIR

3130011

$19.99

15

SPRING,AIR ADJUST

3130012

$8.89

16

JET,PILOT,#35(10) (#35)

3130066

$8.89

17

SCREW & WASHER(10)

3130025

$3.19

18

CLAMP,SPRING,(10)

7080534

$1.59

19

CLAMP,HOSE(10)

7080544

Unavailable

20

PLUG,TRAP

5431893

$12.94

21

FUEL LINE, 5 FT.

8450045-153

$99.99

22

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

23

O RING

3130239

Unavailable

24

JET,MAIN,HX.HD.#145 (#145)

3130112

Unavailable

25

WASHER (10)

3130014

$1.59

26

CARBURETOR,(LITE) Substituted by 3130688 (Incl. 1-17, 23-33)

3130467

Unavailable

26

CARBURETOR,(LITE) Substituted by 3130688 (Incl. 1-17, 23-33)

3130467

Unavailable

27

FLOAT ASM

3130021

$40.46

28

CAP,(10)

3130237

$4.03

29

PACKING,FLOAT CHAMBER

3130020

$16.17

30

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

31

PACKING(10)

3130017

$4.03

32

ARM,FLOAT

3130018

$24.27

33

PIN, FLOAT

3130361

$8.89
