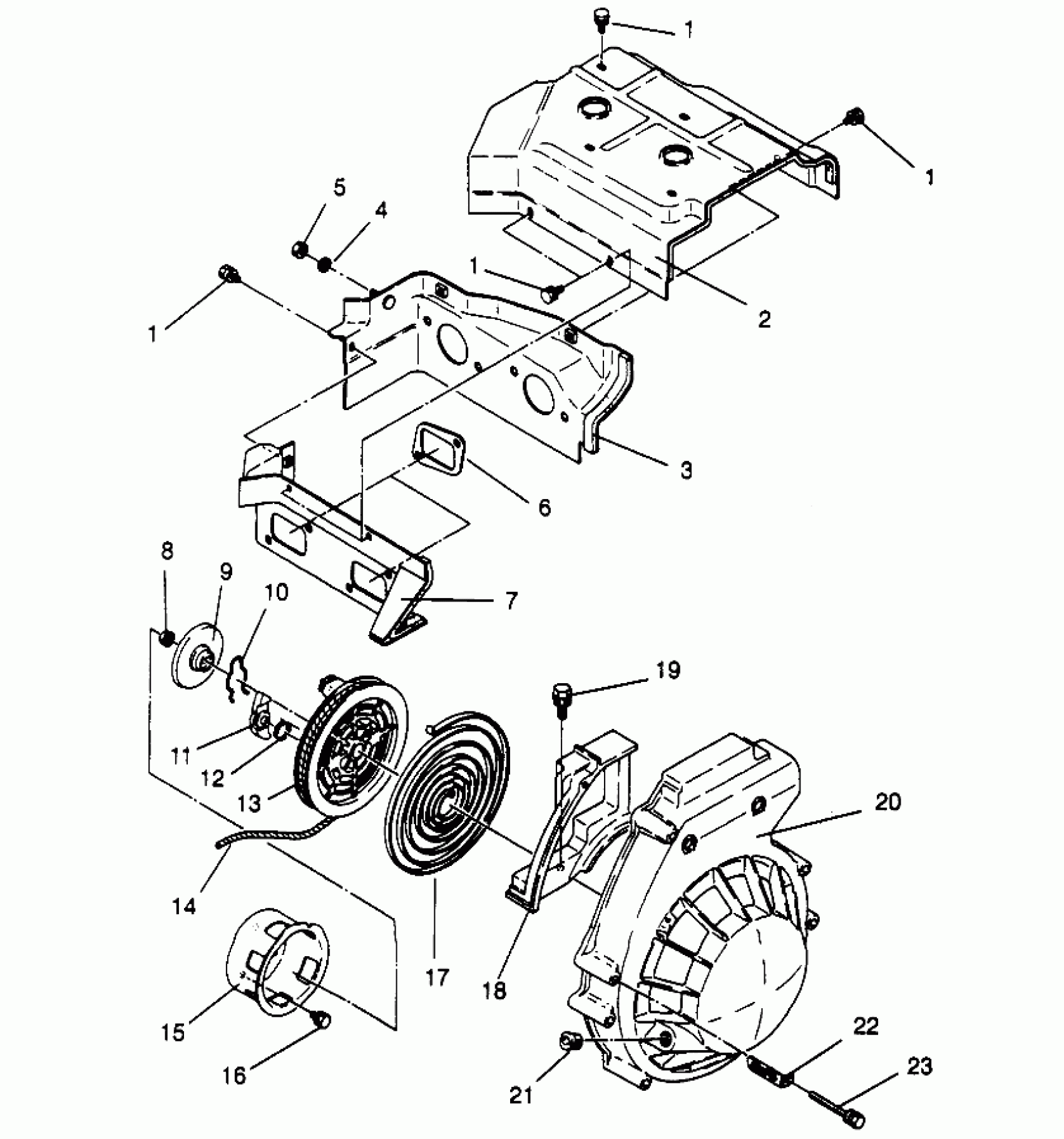

Polaris LITE - 0963433 BLOWER HOUSING & RECOIL LITE 0963433, EURO LITE E963433 and LITE DELUXE 096 (4931663166C011) Diagram

#

Description
Price

1

BOLT&WASHER ASM(10)

3083715

$0.63

1

BOLT&WASHER ASM(10)

3083715

$0.63

1

BOLT&WASHER ASM(10)

3083715

$0.63

2

BAFFLE#1, CYL.

3084420

Unavailable

3

BAFFLE#2, CYL.

3084421

$79.03

4

WASHER SPRING(10)

3080077

$2.39

5

NUT(10)

3084375

$2.99

6

GASKET, INTAKE Substituted by 3085846

3084024

Unavailable

7

BAFFLE,CYL.#3 Substituted by 3085847 (Incl. 6) Non-Asbestos

3084423

$81.17

8

NUT, FLANGE ,(10)

3083381

$2.99

9

Plate, Friction

3083464

$28.32

10

Spring, Friction

3083379

$24.27

11

Ratchet

3083378

$20.22

12

Spring, Return

3083463

$4.03

13

REEL, REWIND

3083377

$56.65

14

ROPE,100 FT,NYL.STARTER (Bulk, Cut to Fit)

2870621

Unavailable

15

PULLEY-STARTING

3083108

$29.52

16

BOLT,(10)

3081665

$3.19

17

Spring, Spiral

3083376

$179.11

18

HOUSING, BLOWER#2

3083591

$17.43

19

BOLT & WASHER

3081663

$1.49

20

CASE, STARTER

3083589

$148.79

20

RECOIL STARTER (Incl. 8-13, 17, 20, 21)

3083588

Unavailable

21

GUIDE-ROPE

3083107

Unavailable

22

Clamp

3083590

$3.99

23

BOLT&WASHER

3083729

$3.49
