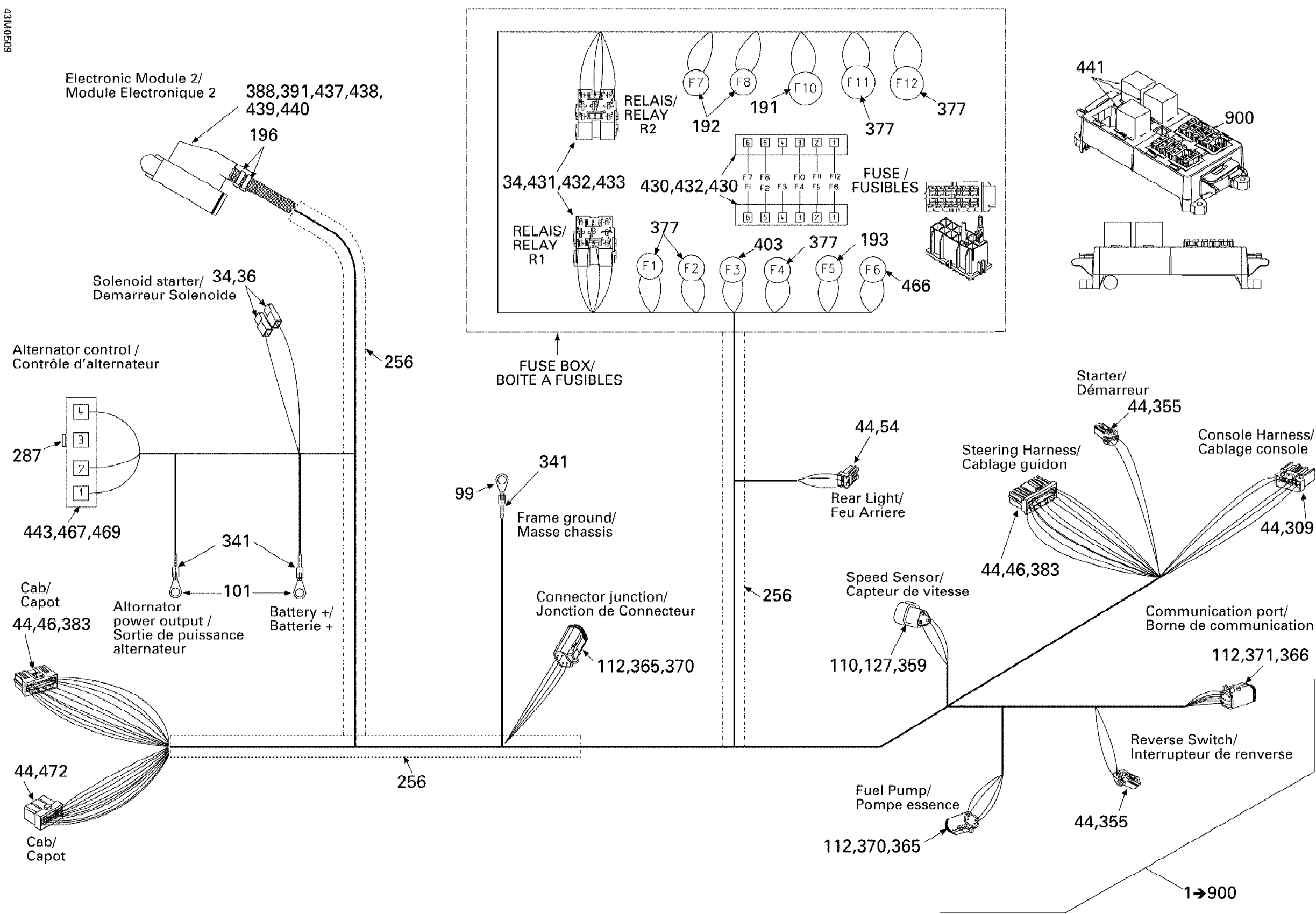

Ski-Doo Legend V-1000, 2005 10- Electrical Harness Diagram

#

Description
Price

1

Frame Harness | Includes 1 to 900

515176007

Unavailable

34

Female Terminal

409010100

$5.61

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

44

Female Terminal

515175231

$4.39

46

Female Terminal

515175282

$7.86

54

Female Housing, 3 Circuits

515175495

$16.18

99

Open Barrel

278000992

$2.21

101

Open Barrel Terminal

278001392

$4.79

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

122

Male Connector, 4 Circuits | CE

278000739

$19.49

127

Male Lock, 3 Circuits

409207600

$3.19

191

Fuse, 30 Amperes

410917200

$3.28

192

Fuse, 20 Amperes

409003900

$3.28

193

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

196

Tie Wrap 142 mm

293750002

$1.25

206

Female Terminal

409004200

$4.55

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

287

Cap

710000080

$8.29

298

Tape

293740005

Unavailable

309

Female Terminal Housing, 6 Circuits

515175543

$9.49

341

Not Available As Spare Part - Friction Washer

Unavailable

355

Female Housing, 2 Circuits

515175658

$16.18

359

Male Housing

515175666

$15.49

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

366

Male Housing, 6 Circuits

515175673

$15.49

370

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

371

Male Wedge, 6 Circuits

515175678

$5.39

377

Fuse, 5 Amperes | CE

278000344

$3.28

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

403

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

430

FUSE HOLDER - Call your local BRP dealership

515175857

Unavailable

431

RELAY HOLDER - Call your local BRP dealership

515175856

Unavailable

432

FEMALE TERMINAL - Call your local BRP dealership

515175855

Unavailable

433

FEMALE TERMINAL - Call your local BRP dealership

515175854

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.12

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

441

Relais *Relay This part replaces 410113604.

515177672

$46.49

443

Female Terminal

710000335

$2.29

466

Fuse, 0.5 Ampere

415128525

Unavailable

467

Female Terminal Housing, 4 Circuits

515175978

Unavailable

469

SEAL - Call your local BRP dealership

515175979

Unavailable

472

Female Terminal Housing

415128527

Unavailable

900

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable
