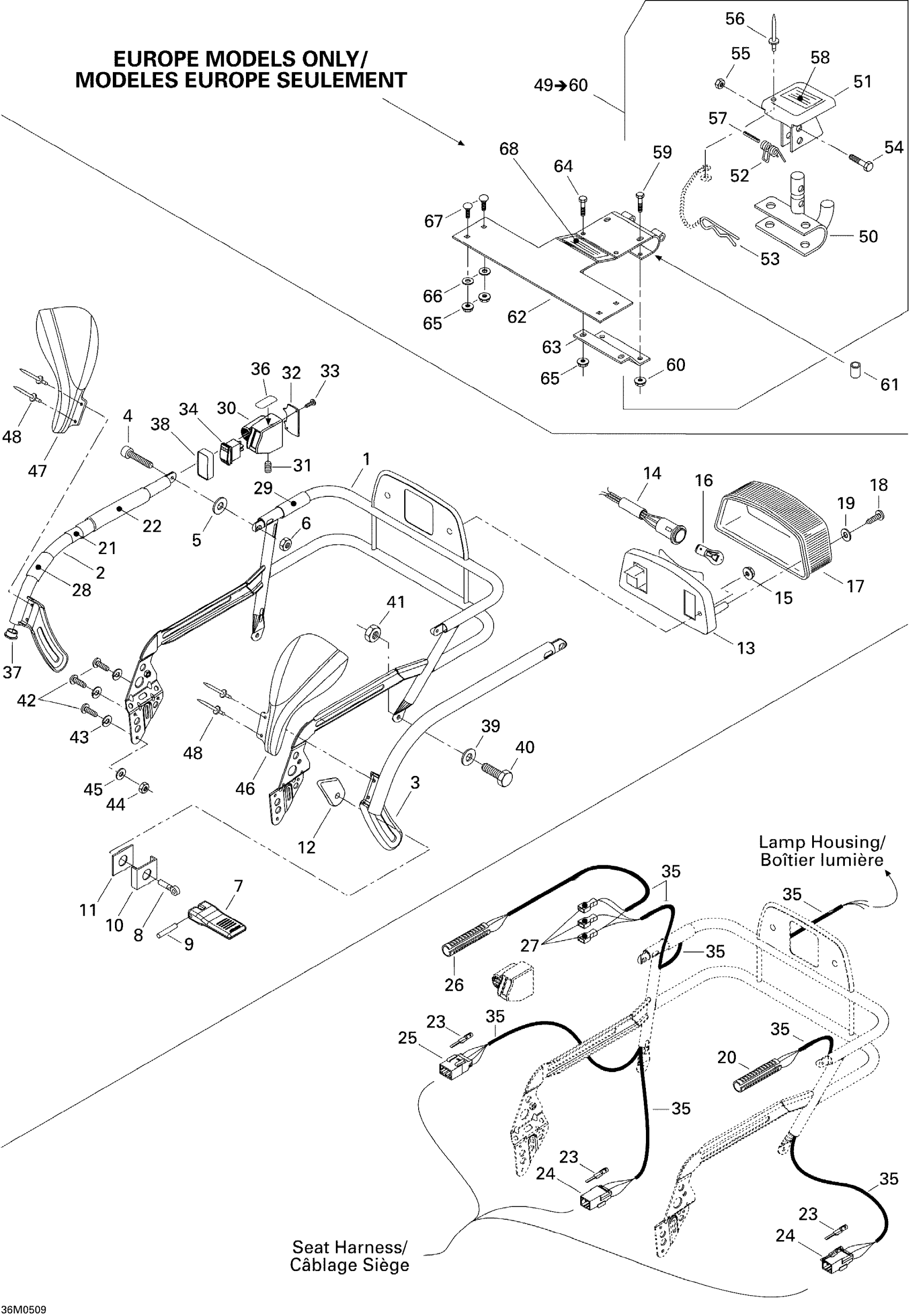

Ski-Doo Legend V-1000, 2005 09- Luggage Rack Diagram

#

Description
Price

1

Rack Ass’Y

511000124

Unavailable

2

RH Arm, Rack

511000012

Unavailable

3

LH Am, Rack

517300900

Unavailable

4

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

5

Flat Washer 6 mm

234062100

$1.26

6

Elastic Stop Nut M6

232561414

$0.55

7

Lock Lever

572038200

Unavailable

8

EYE BOLT - Call your local BRP dealership

517250100

Unavailable

9

Pin

414821400

$7.55

10

Guide

511000226

Unavailable

11

Outer Spacer

570063800

Unavailable

12

Spacer Block

572088900

Unavailable

13

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

14

Socket

511000224

Unavailable

15

Hex. Flange Elastic Nut M5

233251414

$1.04

16

Bulb

520000758

$9.10

17

Lens

414513700

$28.99

18

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

19

Washer - Call your local BRP dealership

414516400

Unavailable

20

Heater

515176085

Unavailable

21

Reflective Sheet

414988700

Unavailable

22

LH Grip, 370 mm

415050200

Unavailable

23

Male Terminal

515175232

$1.58

24

Male Housing, 3 Circuits

515175494

$16.18

25

Male Terminal Housing, 4 Circuits

515175846

$8.79

26

Heater

515176085

Unavailable

27

Female Terminal

409010800

$0.99

28

RH Grip, 250 mm

415050300

Unavailable

29

Grip, Short, 60 mm

415050400

Unavailable

30

Switch Housing

572089200

Unavailable

31

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

32

Plate

572089300

Unavailable

33

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

34

Rocker Switch

511000001

Unavailable

35

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

36

HEAT GRIP DECAL - Call your local BRP dealership

418001800

Unavailable

37

CAP, BLACK - Call your local BRP dealership

572110800

Unavailable

38

Switch Protector

511000002

Unavailable

39

Flat Washer 8 mm

234081410

$0.83

40

Hex. Screw M8 X 20

207182044

$0.74

41

Hex. Flange Elastic Nut M8

233281414

$1.47

42

Hex. Flange Screw M6 X 16

210261650

$1.67

43

Lock Washer Helical M6

234161601

$1.15

44

Elastic Stop Nut M6

232561414

$0.55

45

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

46

RH Protector

572089400

Unavailable

47

LH Protector

572089500

Unavailable

48

Pop Rivet 3/16”

293150108

$1.19

49

HITCH ASS?Y KIT - Call your local BRP dealership | Includes 49 to 60 / Europe

861778700

Unavailable

50

Hitch | Europe

517199300

Unavailable

51

Hitch Protector | Europe

517152700

Unavailable

52

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

53

Hair Pin

114045200

$11.11

54

Hex. Screw M6 X 30

207063044

$1.26

55

Elastic Stop Nut M6

232561414

$0.55

56

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

57

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

58

Security Label, Hitch

516001243

Unavailable

59

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

61

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

62

Fixation | Europe

511000217

Unavailable

63

Reinforcement | Europe

517223500

Unavailable

64

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

66

Flat Washer

224061201

$1.37

67

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

68

Security Label, Hitch | Europe

516001709

Unavailable
