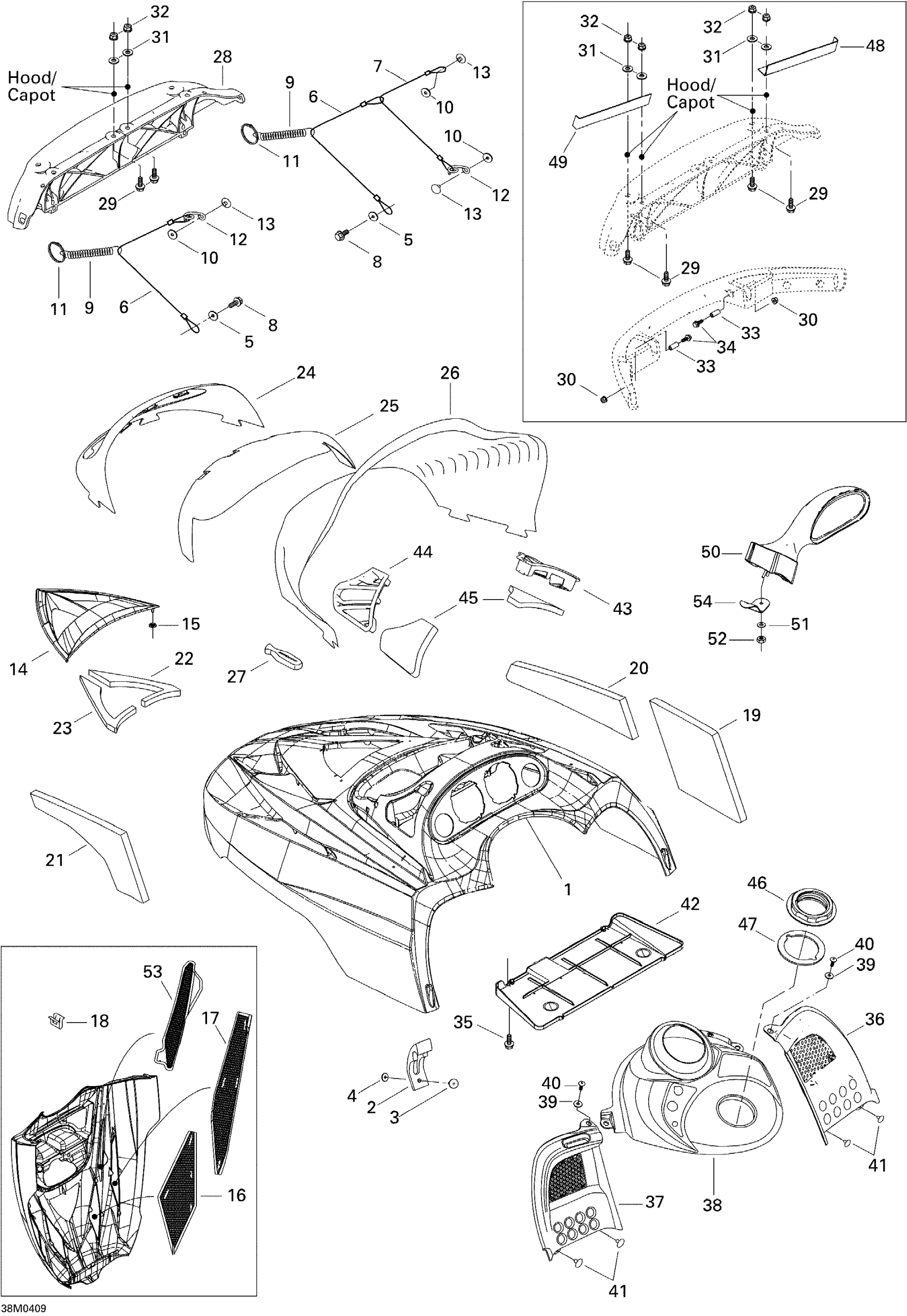

Ski-Doo Legend V-1000, 2005 09- Cab and Console Diagram

#

Description
Price

1

Hood, Deep Black | SE & SE GT

517303150

Unavailable

1

Hood, Deep Black | Sport & Sport GT

517303151

Unavailable

2

Hood Latch

570027100

$13.49

3

Pop Rivet 3/16”

293150108

$1.19

4

Washer

517124300

$0.19

5

Washer | DS 650 X

391301600

$0.48

6

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

7

Retainer Cable

517303135

Unavailable

8

Hex. Tapping Screw

365901000

Unavailable

9

Spring

415043300

Unavailable

10

Washer

517124300

$0.19

11

RING - Call your local BRP dealership

415058300

Unavailable

12

Bracket

517262800

Unavailable

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

14

Center Grille

517303016

Unavailable

15

Push Nut

250100034

$1.29

16

RH Intermediate Grille

517302994

Unavailable

16

LH Intermediate Grille

517302995

Unavailable

17

RH Side Grille

517302996

Unavailable

17

LH Side Grille

517302997

Unavailable

18

Edge Clip

517302785

$0.88

19

RH Side Foam

517302749

Unavailable

20

RH Rear Side Foam

517302941

Unavailable

21

LH Side Foam

517302750

Unavailable

22

RH CENTER FOAM - Call your local BRP dealership

517302942

Unavailable

23

LH Center Foam

517302943

Unavailable

24

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.99

25

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

26

HIGH WINDSHIELD - Call your local BRP dealership | SE & Sport

517302981

Unavailable

26

High Windshield | SE GT & Sport GT This part replaces 517302982.

517302560

$180.99

27

Windshield Latch

570023800

$4.49

28

Hinge

517302631

$48.99

29

Hex. Flange Screw M6 X 20

207662084

$1.69

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

31

Flat Washer

224061201

$1.37

32

Elastic Stop Nut M6

232561414

$0.55

33

BUSHING - Call your local BRP dealership

517302179

Unavailable

34

Hex. Flange Screw M6 X 35

207663544

$0.90

35

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

36

RH Console

517302709

Unavailable

37

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

38

Center Console | SE & SE GT

517302702

Unavailable

38

Center Console | Sport & Sport GT

517302757

Unavailable

39

Washer | DS 650 X

391301600

$0.48

40

Forming Screw M5 x 16

250000676

$1.01

41

Pop Rivet 3/16"

293150103

$0.55

42

Air Intake Plate

517302628

Unavailable

43

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

44

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

45

Air Intake Foam

517302151

Unavailable

46

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

47

Gasket

293250029

$14.82

48

RH Corner Support

517302949

Unavailable

49

LH Corner Support

517302950

Unavailable

50

RH MIRROR - Call your local BRP dealership

517302764

Unavailable

50

LH Mirror

517302766

Unavailable

51

Washer

517124300

$0.19

52

Elastic Stop Nut M4

232541414

$0.58

53

RH Side Grille

517302998

Unavailable

54

Holder Plate

517303057

Unavailable
