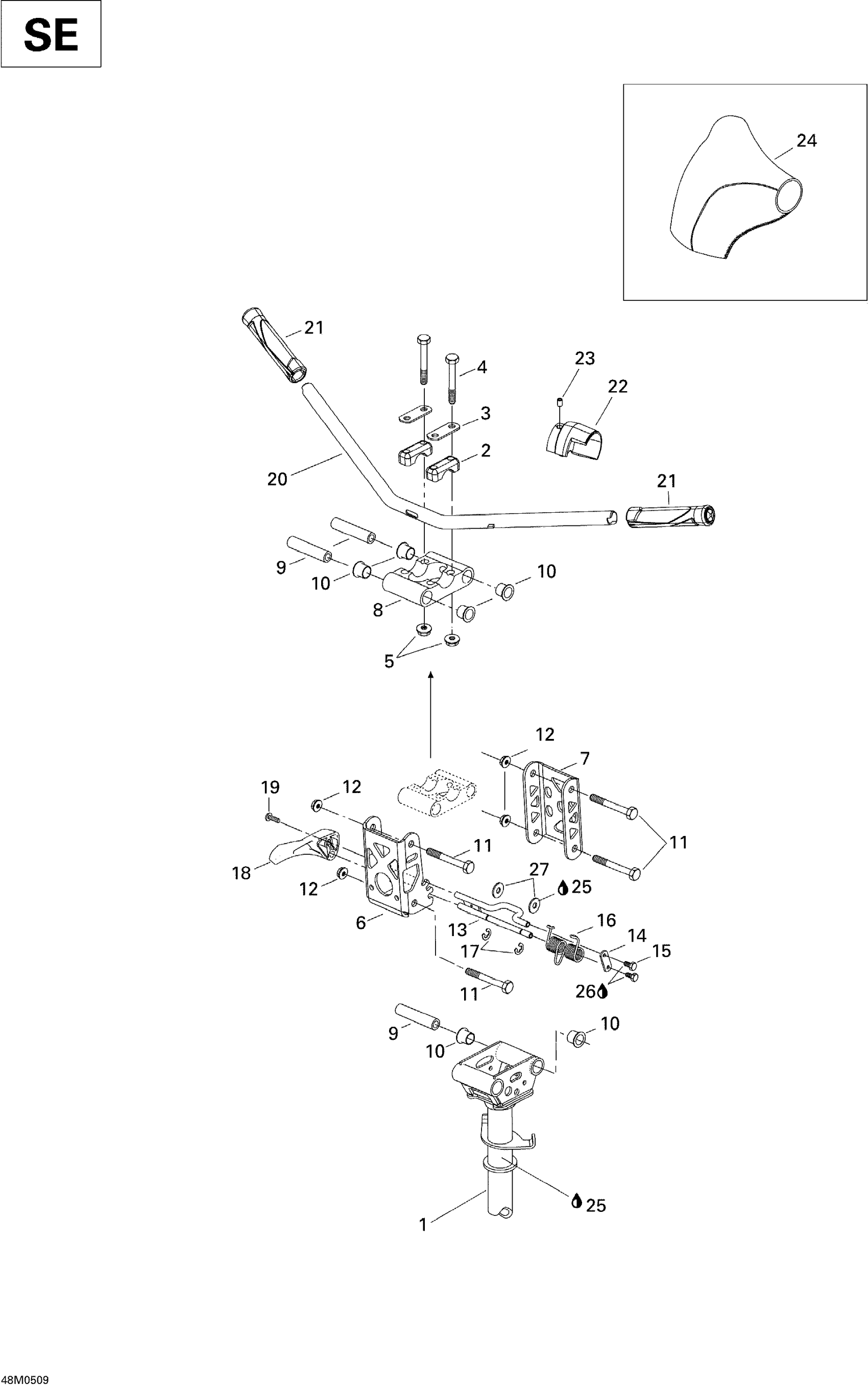

Ski-Doo Legend V-1000, 2005 07- Adjustable Handle Bar SE Diagram

#

Description
Price

1

Tube

506151764

Unavailable

2

Steering Support

709400919

$22.49

3

Stiffner

709400509

$4.69

4

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

FRONT ARM - Call your local BRP dealership

506151156

Unavailable

7

Rear Arm

506151152

Unavailable

8

Clamp

506151147

Unavailable

9

Spacer

506151146

Unavailable

10

Cushion

506152520

$15.72

11

HEX. FLANGED SCREW M8 X 80 - Call your local BRP dealership

207688044

Unavailable

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Lock

506151162

Unavailable

14

Plate

506151240

Unavailable

15

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

16

SPRING - Call your local BRP dealership

506151219

Unavailable

17

Circlip

414274500

$0.90

18

HANDLE - Call your local BRP dealership

506151188

Unavailable

19

Socket Head Screw M4 X 12

205041254

$2.11

20

HANDLEBAR - Call your local BRP dealership

506151685

Unavailable

21

Handle Grip

506152238

$78.49

22

ADAPTATOR - Call your local BRP dealership

506151566

Unavailable

23

SOCKET SET SCREW M8 X 12 - Call your local BRP dealership

206581244

Unavailable

24

COVER - Call your local BRP dealership

506151598

Unavailable

25

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

Washer

517302265

Unavailable
