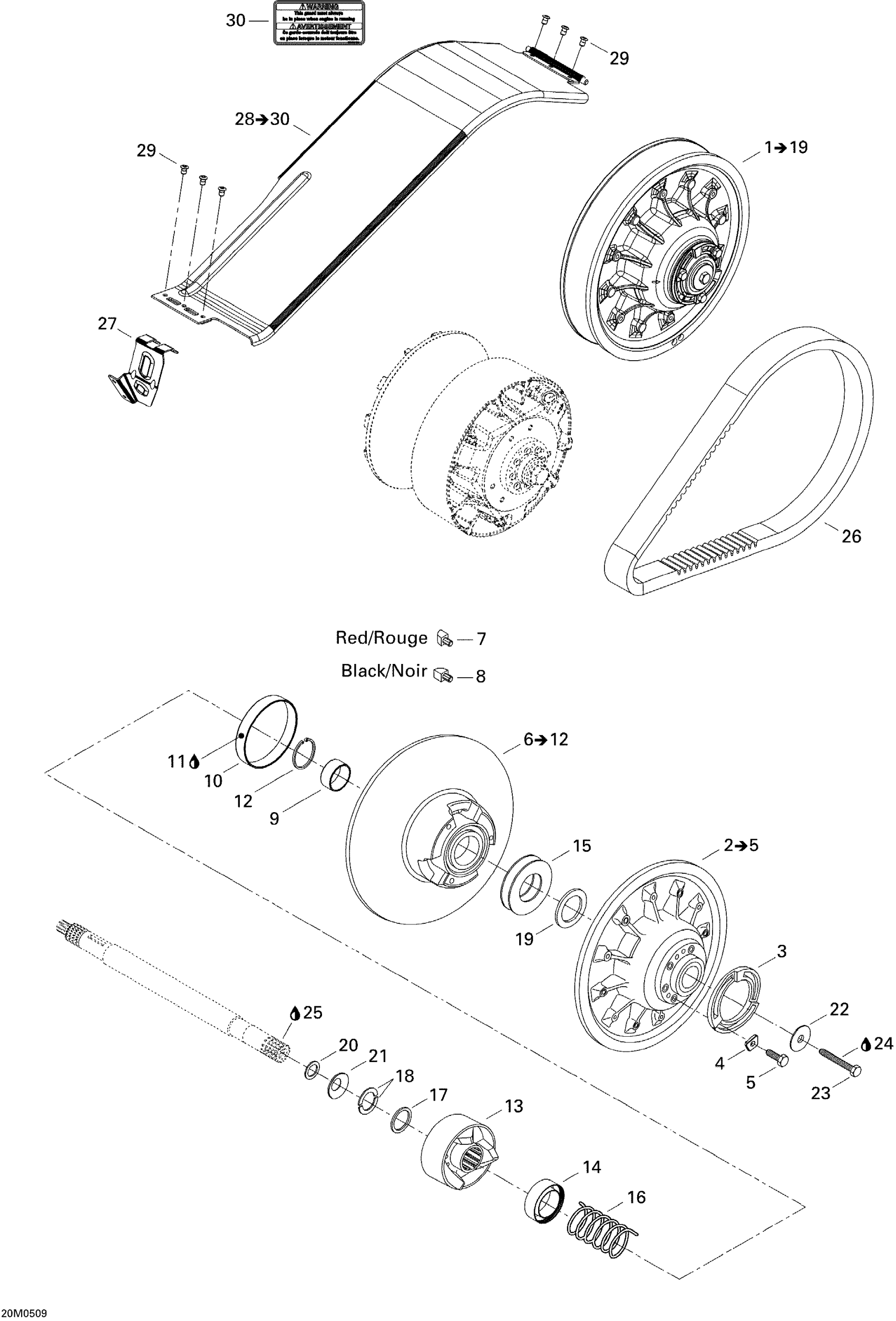

Ski-Doo Legend V-1000, 2005 05- Driven Pulley Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Fixed Flange Ass'y | Includes 40 to 44
417126603
Unavailable
3
Adjustment Ring
415005800
Unavailable
4
Adjustment Shim
415005900
Unavailable
5
HEX. SCREW M6 X 22 - Call your local BRP dealership
207162244
Unavailable
6
SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46
417126909
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
BUSHING - Call your local BRP dealership
417126902
Unavailable
12
CIRCLIP - Call your local BRP dealership This part replaces 619100033.
371911200
Unavailable
13
CAM ASSY - Call your local BRP dealership
417126721
Unavailable
14
GUARD - Call your local BRP dealership
415006000
Unavailable
15
STOPPER WASHER - Call your local BRP dealership
504099600
Unavailable
16
Release Spring, pink
417126735
Unavailable
17
SPACER - Call your local BRP dealership
417126733
Unavailable
18
HALF KEY - Call your local BRP dealership
417126734
Unavailable
19
SHIM - Call your local BRP dealership
504112300
Unavailable
21
PROTECTOR - Call your local BRP dealership
417300238
Unavailable
23
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
25
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
27
Bracket
417300172
Unavailable
28
Belt Guard Ass’Y | Includes 28 to 30
417300169
Unavailable
30
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
