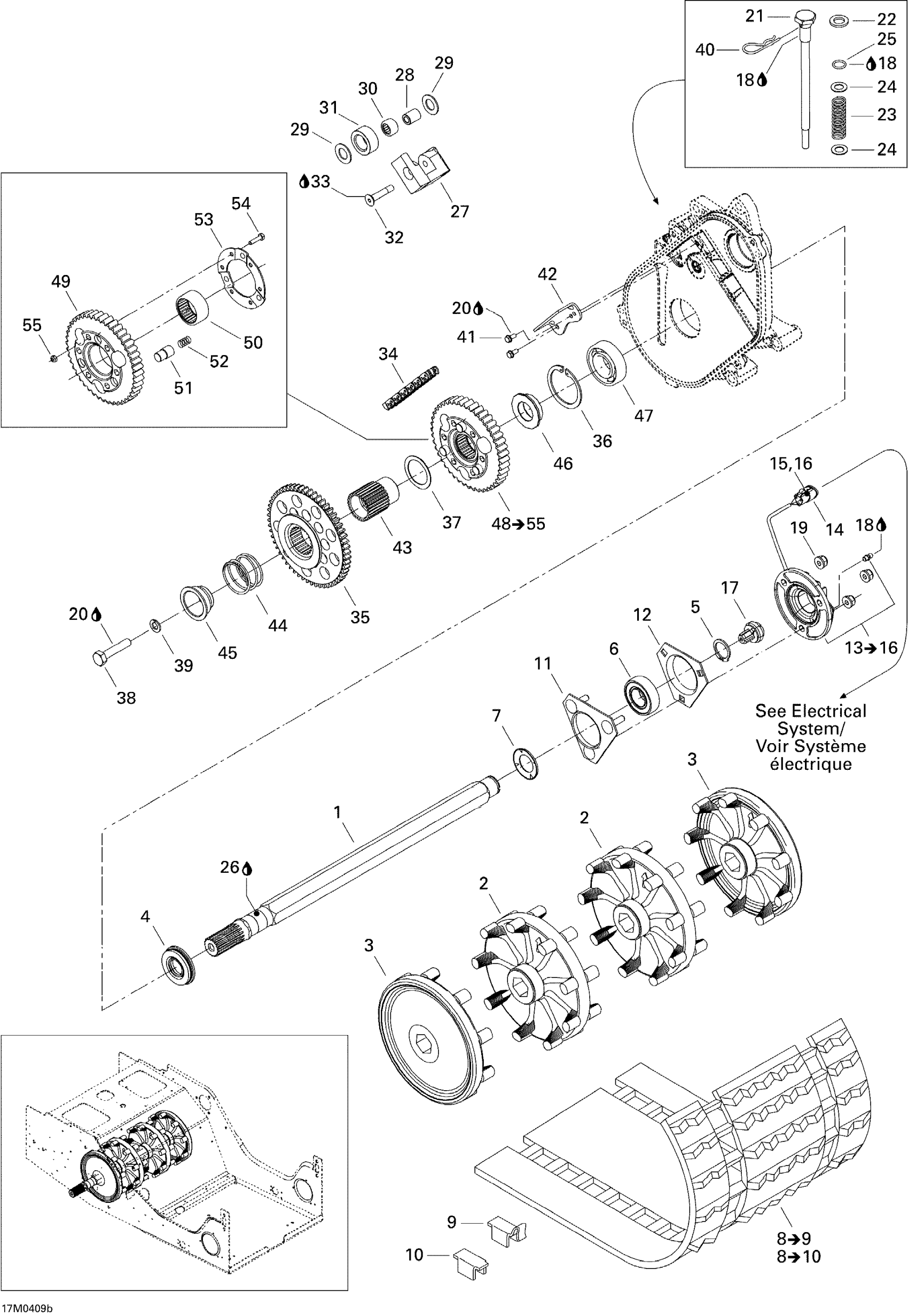

Ski-Doo Legend V-1000, 2005 05- Drive System 2 Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

HALF SPROCKET, 9 TEETH - Call your local BRP dealership

504151782

Unavailable

4

Oil Seal Ass'y

504151918

$20.49

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.

504152455

$799.99

8

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

$719.99

8

Track 15" X 136" X 1.25" Ass'y | Includes 7 to 9 / GTX SPORT 500 SS (Europe)

504152488

Unavailable

9

Track Guide | Track Width 16''

415129528

$3.29

9

Track Guide | Track Width 16''

415129528

$3.29

9

Track Guide | Track Width 16''

415129528

$3.29

10

Cleat

504152651

$9.69

10

Cleat

504152651

$9.69

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

FLANGE - Call your local BRP dealership

501025000

Unavailable

13

Flange, Speedo

504152173

$76.49

14

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

15

Female Terminal

278000632

$2.09

16

Female Lock, 3 Circuits

515175676

$5.39

17

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

18

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Loctite 271, 10 ml

293800005

$26.99

21

Adjustment Screw

504151946

Unavailable

22

Washer | 7415/7416. 7417/7418.

503189148

$2.85

23

SPRING - Call your local BRP dealership

504151945

Unavailable

24

HARD WASHER - Call your local BRP dealership | LTD

503125900

Unavailable

25

O-RING - Call your local BRP dealership

504151954

Unavailable

26

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

27

Chain Tensioner

504151940

Unavailable

28

SPACER - Call your local BRP dealership

504080200

Unavailable

29

WASHER - Call your local BRP dealership

504080300

Unavailable

30

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

31

ROLLER - Call your local BRP dealership

414531300

Unavailable

32

SCREW - Call your local BRP dealership

732601144

Unavailable

33

Loctite 271, 10 ml

293800005

$26.99

34

Drive Chain, 74 Links | Except Europe

504151857

$153.49

35

SLIDING GEAR, 56 TEETH - Call your local BRP dealership

504096800

Unavailable

36

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

37

WASHER - Call your local BRP dealership

504094300

Unavailable

38

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

39

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

40

Hair Pin

414575600

$1.89

41

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

42

SLIDER CHAIN - Call your local BRP dealership

504152036

Unavailable

43

Coupling Axle

504097700

Unavailable

44

Spring Release

504153178

$9.39

45

CAP - Call your local BRP dealership

504151964

Unavailable

46

RETAINING RING - Call your local BRP dealership

504076300

Unavailable

47

Ball Bearing

504152005

$46.49

48

SPROCK ASSY, 44 TEETH - Call your local BRP dealership | Includes 55 to 63

581096800

Unavailable

49

Sprocket, 44 Teeth

504084400

Unavailable

50

NEEDLE BEARING - Call your local BRP dealership

414772600

Unavailable

51

DRIVE PIN - Call your local BRP dealership

504076800

Unavailable

52

SPRING - Call your local BRP dealership

414772700

Unavailable

53

RETAINER RING - Call your local BRP dealership

504076100

Unavailable

54

Hex. Screw M5 X 20

207152044

$0.90

55

NUT-LOCK SPRING DIN.980V - Call your local BRP dealership

233551416

Unavailable
