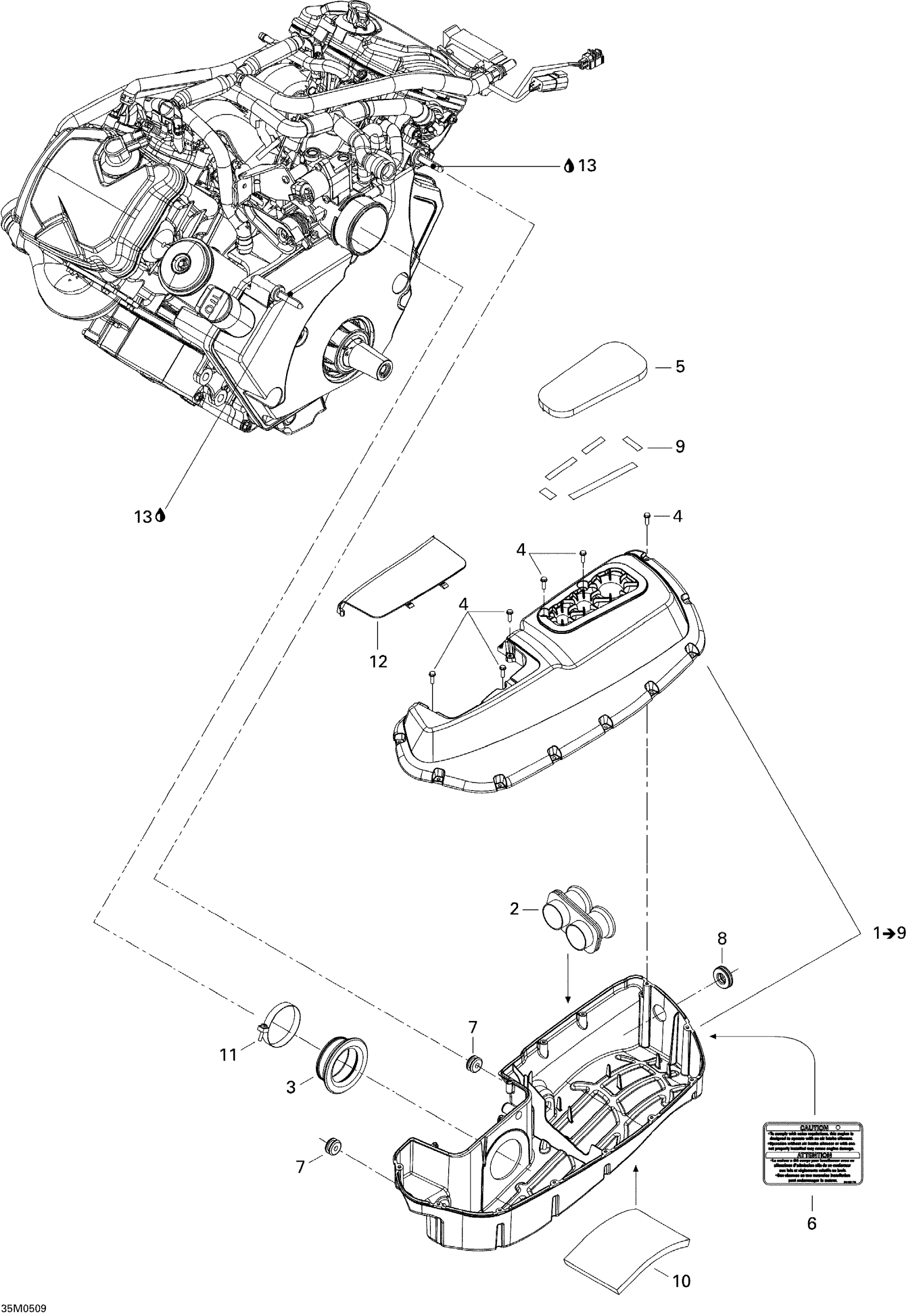

Ski-Doo Legend V-1000, 2005 Air Intake System Diagram

#

Description
Price

1

AIR INTAKE ASS?Y - Call your local BRP dealership | Includes 1 to 9

508000315

Unavailable

2

Inlet Tube

273000107

Unavailable

3

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

4

Hex. Screw M4.8 X 1.8

243141680

$4.86

5

AIR FILTER - Call your local BRP dealership

508000251

Unavailable

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

Grommet

508000331

Unavailable

8

GROMMET - Call your local BRP dealership

570065500

Unavailable

9

VELCRO 1/2? - Call your local BRP dealership

415110900

Unavailable

10

Inferior Foam

508000250

Unavailable

11

GEMI CLAMP - Call your local BRP dealership

508000382

Unavailable

12

Door

508000253

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
