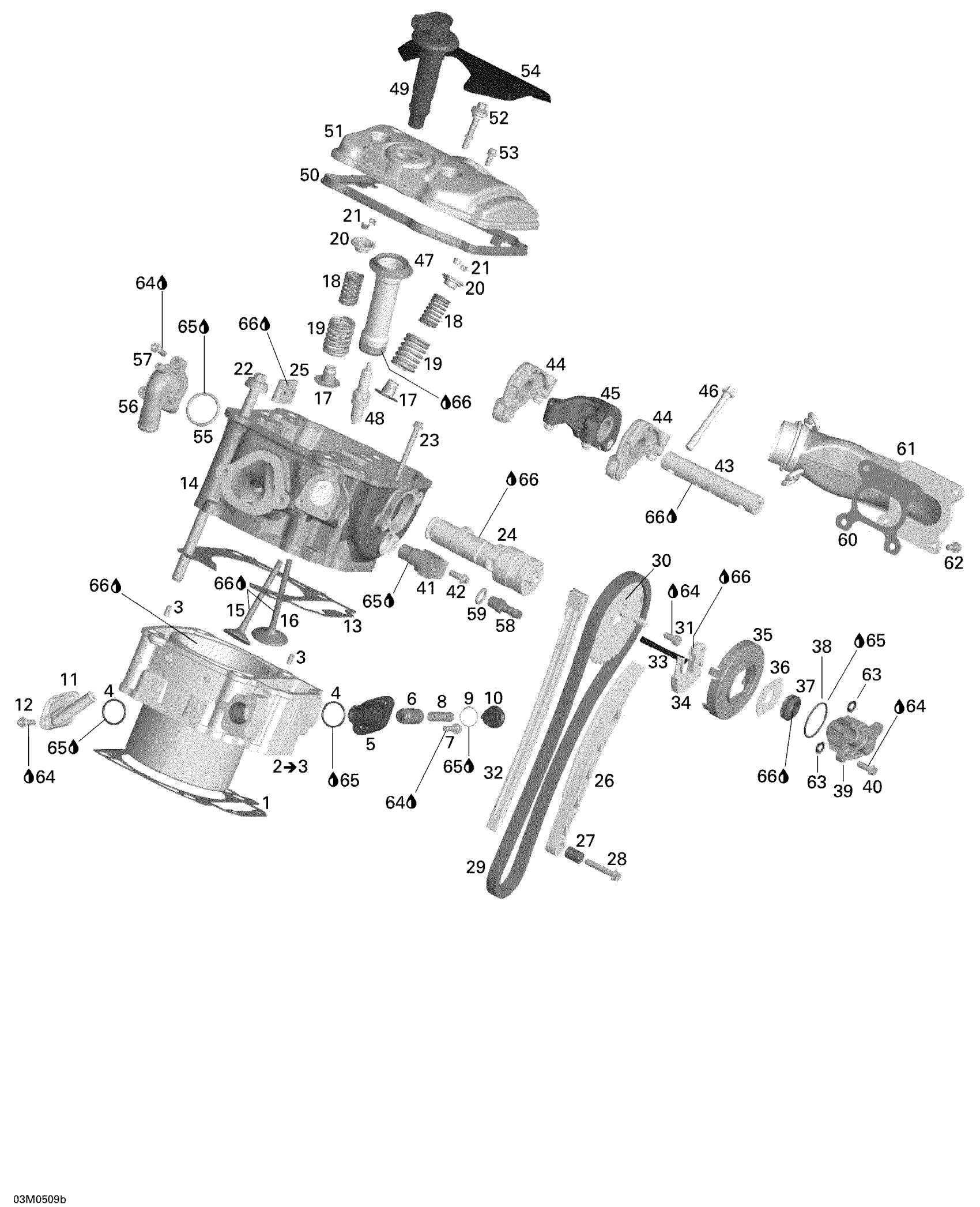

Ski-Doo Legend V-1000, 2005 Cylinder and Cylinder Head - Rear Side Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

420630080

Unavailable

2

CYLINDER ASS?Y - Call your local BRP dealership | Includes 2 to 3

420923948

Unavailable

3

Drive Pin 5 X 10

420929650

$1.34

4

O-Ring

420430373

$2.63

5

Chain Tensioner Housing

420236510

$11.09

6

Chain Tensioner Plunger

420236521

$14.48

7

Torx Flange Screw M6 X 25

420440234

$3.00

8

Spring

420238120

$7.23

9

O-Ring

420250890

$2.50

10

Plug Screw

420641150

$7.23

11

CONNECTION COVER - Call your local BRP dealership

420960810

Unavailable

12

Torx Flange Screw M6 X 25

420440234

$3.00

13

CYLINDER HEAD GASKET - Call your local BRP dealership

420950660

Unavailable

14

CYLINDER HEAD ASS?Y - Call your local BRP dealership

420613475

Unavailable

15

Exhaust Valve 31 mm

420254027

$73.42

16

Intake Valve 38MM

420253163

$33.77

17

Valve Steam Seal

420630202

$6.02

18

Valve Spring Inside

420838280

$10.58

19

Valve Spring

420238180

$12.97

20

Valve Spring Retainer

420254283

$7.05

21

Valve Cotter

420253645

$6.11

22

TORX SCREW M11 X 215 - Call your local BRP dealership

420641020

Unavailable

23

Torx Flange Screw M6 X 105

420440612

$6.11

24

Camshaft, Rear

420837456

Unavailable

25

Camshaft Guide

420851694

$26.62

26

Chain Tension Guide

420236541

$12.97

27

DISTANCE SLEEVE - Call your local BRP dealership

420247100

Unavailable

28

Torx Flange Screw M6 X 35

420440274

$0.83

29

Camshaft Chain

420297957

$97.66

30

Timing Gear, 38 Teeth

420254309

$57.82

31

Allen Screw M6 X 12

420840032

$3.61

32

Chain Guide

420236501

$11.48

33

Deko Shaft

420220790

Unavailable

34

Centrifugal Weight Ass’Y

420231064

Unavailable

35

Cover

420660037

$19.47

36

Thrust Washer

420627494

$6.11

37

V-Ring 20S FPM Blow By Valve

420630125

$9.37

38

O-Ring

420950870

$4.41

39

CAMSHAFT COVER - Call your local BRP dealership

420610272

Unavailable

40

Torx Flange Screw M6 X 16

420440162

$3.11

41

Camshaft Position Sensor Ass'y

420664046

$70.82

42

Torx Flange Screw M6 X 16

420440162

$3.11

43

ROCKER ARM SHAFT ASS'Y - Call your local BRP dealership

420854599

Unavailable

44

Rocker Arm, Exhaust

420254329

$112.42

45

Rocker Arm, Inner

420254316

$148.17

46

Torx Screw M8 X 72

420641080

$4.39

47

Spark Plug Pipe

420851754

$22.72

48

Spark Plug, NGK DCP-R8E

715900637

$5.66

49

Ignition Coil Kit This part replaces 420664020.

296000307

$86.42

50

Sealing Ring

420630071

$14.92

51

Valve Cover

420610185

Unavailable

52

Hex Screw M6 X 30

420440568

$7.10

53

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

54

Valve Cover

420660201

Unavailable

55

O-Ring

420950890

$4.28

56

Connecting Cover

420811700

Unavailable

57

Torx Flange Screw M6 X 25

420440234

$3.00

58

Hose Nipple

420440960

Unavailable

59

Copper Washer

420250640

$0.81

60

GASKET - Call your local BRP dealership

420950680

Unavailable

61

Exhaust Manifold Ass'y

420973781

Unavailable

62

Torx Flange Screw M6 X 16

420440162

$3.11

63

Seal Washer

420230415

$1.77

64

Loctite 243, 10 ml

293800060

$20.77

65

Grease, Super Lube

293550030

$24.67

66

Synth Oil 4T 12x1

293600054

Unavailable
