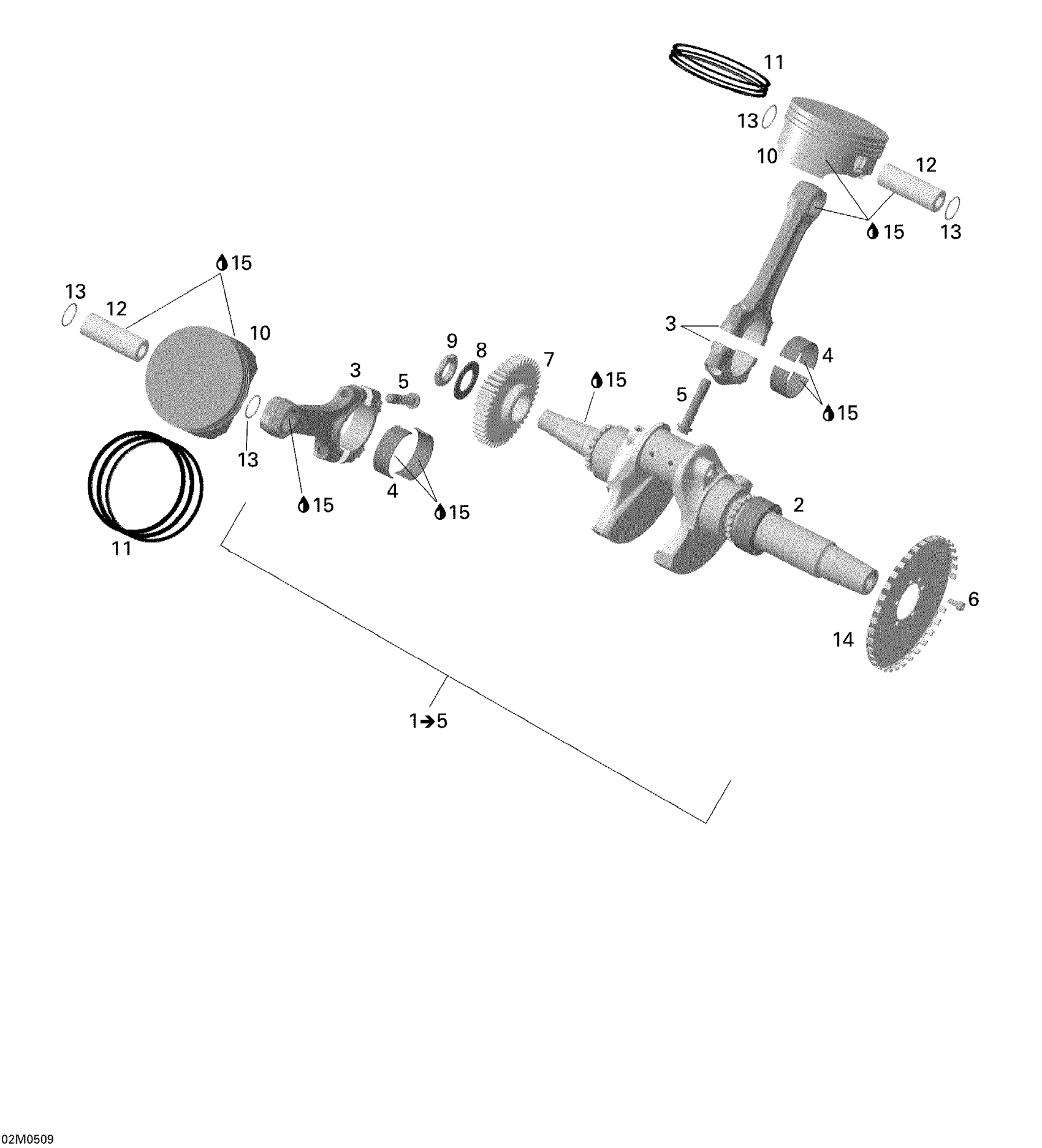

Ski-Doo Legend V-1000, 2005 01- Crankshaft And Pistons Diagram

#

Description

Price

1

CRANKSHAFT ASS?Y - Call your local BRP dealership | Includes 1 to 4

420889441

Unavailable

2

Crankshaft

420889440

Unavailable

3

CONNECTING ROD ASS?Y - Call your local BRP dealership

420917546

Unavailable

4

Half-Bearing

420933523

$19.19

5

Connecting rod Screw M10 X 1

420640991

$11.63

6

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

420640541

Unavailable

7

Drive Gear 45 Teeth

420834446

Unavailable

8

Spring Washer

420245860

$7.41

9

Nut

420242879

$7.65

10

Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5

420296565

$180.99

11

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$65.99

12

Piston Pin

420216250

$23.99

13

Circlip

420845580

$2.64

14

TRIGGER WHEEL - Call your local BRP dealership

420966850

Unavailable

15

Synth Oil 4T 12x1

293600054

Unavailable
