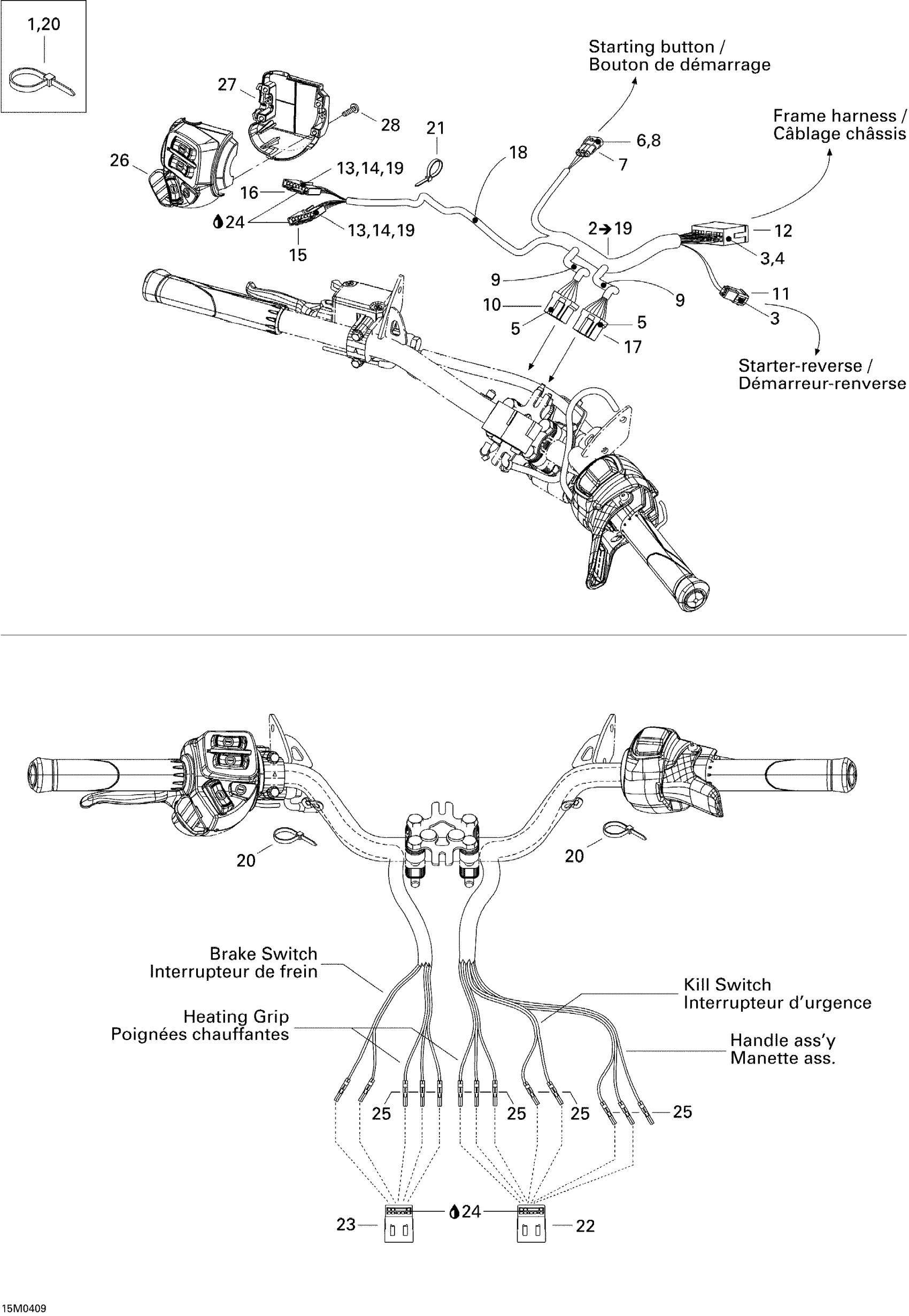

Ski-Doo Legend V-1000, 2004 10- Steering harness Diagram

#

Description
Price

1

Tie Wrap 368 mm

293750008

$1.04

2

Steering Harness | Sport Models / Includes 2 to 19

515176067

Unavailable

Steering Harness | SE Models / Includes 2 to 19

515176068

Unavailable

3

Male Terminal

515175232

$1.58

4

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

5

Female Terminal

515175231

$4.39

6

Male Terminal | Europe Models

409012900

$3.28

7

Housing

710000568

$11.12

8

Wire Seal

278001013

$3.28

9

Tubing 10 MM 1000MM Long

219704407

$2.79

10

Female Terminal Housing, 6 Circuits

515175543

$9.49

11

Male Terminal Housing, 2 Circuits

515175654

$9.12

12

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

13

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

14

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

15

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

16

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

17

Female Terminal Housing, 8 Circuits

515175819

$7.62

18

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

19

Female Terminal

515175941

$2.69

20

Tie-Rap 180 mm

414115200

$0.11

21

Tie Wrap 142 mm

293750002

$1.25

22

Male Terminal Housing, 8 Circuits

515175817

$8.79

23

Male Terminal Housing, 6 Circuits

515175662

$8.79

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

Male Terminal

515175232

$1.58

26

LH SWITCH HOUSING - Call your local BRP dealership

515176015

Unavailable

27

Switch Housing Plate

515175926

$20.99

28

Torx Screw #8-18

250000263

$1.04
