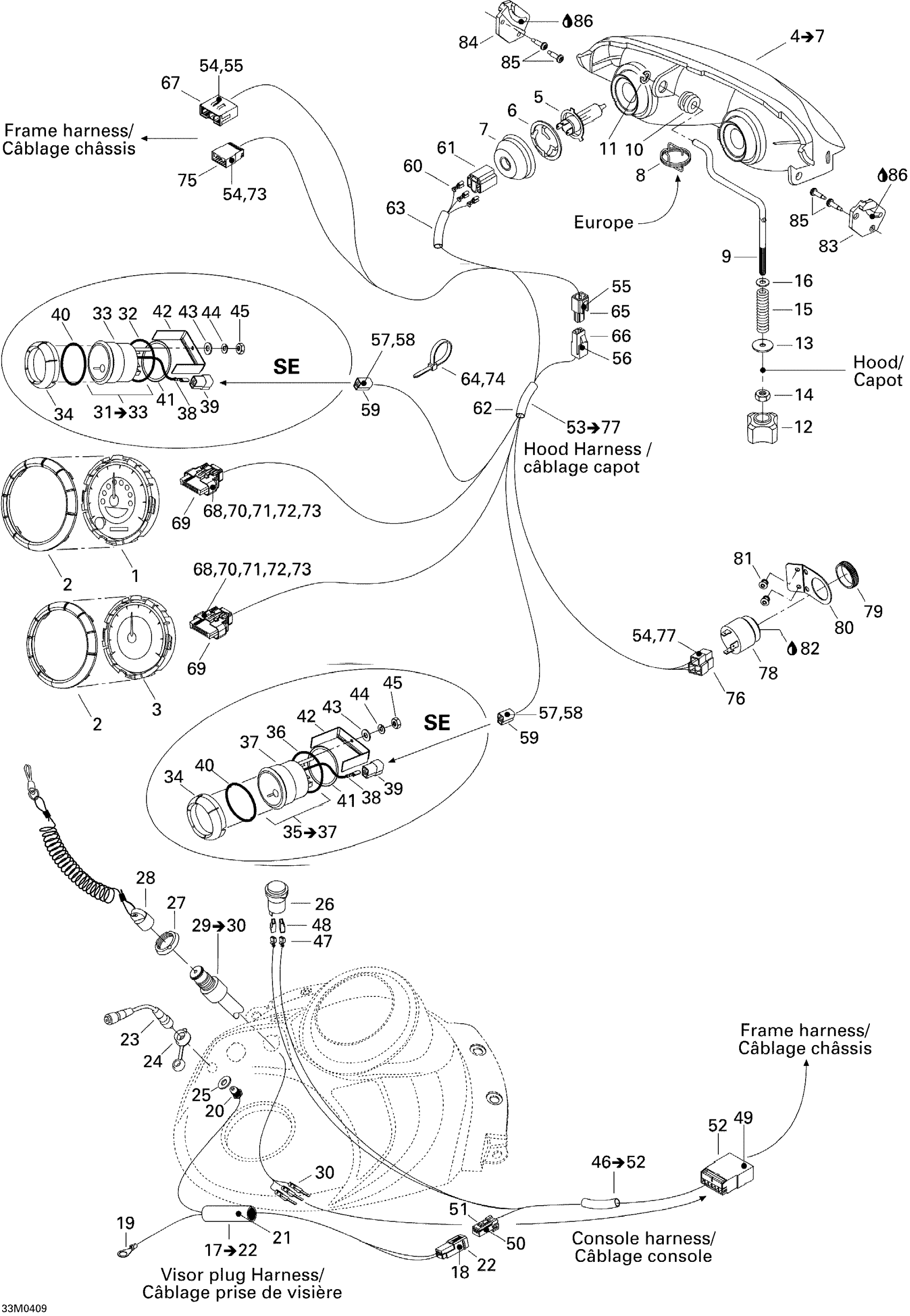

Ski-Doo Legend V-1000, 2004 10- Electrical system Diagram

#

Description
Price

1

Speedometer

515176012

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

Tachometer

515176072

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

9

Adjuster Rod

515175920

Unavailable

10

Grommet - Call your local BRP dealership

415100800

Unavailable

11

Push Nut

732610072

$2.19

12

Handle - Call your local BRP dealership

515175548

Unavailable

13

Washer

224060251

$0.58

14

Elastic Stop Nut M6

232561414

$0.55

15

SPRING - Call your local BRP dealership

415100600

Unavailable

16

Flat Washer 6 mm

234061410

$1.36

17

Visor Plug Harness | Includes items 17 to 22

515175964

Unavailable

18

Male Terminal

515175232

$1.58

19

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

20

Visor Plug

415096100

Unavailable

21

Tape

293740005

Unavailable

22

Male Terminal Housing, 2 Circuits

515175654

$9.12

23

EXTENSION - Call your local BRP dealership

515175971

Unavailable

24

Cap

572103300

$10.49

25

Washer

503175800

$3.28

26

Outlet Power Kit, 12 Volts

861507200

$36.99

27

Safety Nut (DESS Switch)

278002963

$3.28

28

DESS

515178284

$84.99

29

Dess Switch | Includes items 29 to 30

515175913

Unavailable

30

Male Terminal

515175232

$1.58

31

Temperature Gauge

515175601

Unavailable

32

O-RING - Call your local BRP dealership

414807200

Unavailable

33

Case Holder | SE Models

414806600

Unavailable

34

RING GAUGE - Call your local BRP dealership

515175711

Unavailable

35

FUEL GAUGE - Call your local BRP dealership

515175529

Unavailable

36

O-RING - Call your local BRP dealership

414807200

Unavailable

37

Case Holder | SE Models

414806600

Unavailable

38

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

39

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

40

O-RING - Call your local BRP dealership

414807200

Unavailable

41

WASHER - Call your local BRP dealership

517258600

Unavailable

42

Case Holder | SE Models

414806600

Unavailable

43

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

44

Lock Washer | SE Models

414833700

Unavailable

45

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

46

Console Harness | Includes 46 to 52

515176028

Unavailable

47

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

48

Female Terminal Housing, 1 Circuit

409010400

$7.62

49

Male Terminal

515175232

$1.58

50

Female Terminal

515175231

$4.39

51

Female Housing, 2 Circuits

515175658

$16.18

52

Male Terminal Housing, 6 Circuits

515175662

$8.79

53

CAB WIRING HARNESS - Call your local BRP dealership | Includes 53 to 77

515175984

Unavailable

54

Male Terminal

515175232

$1.58

55

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

56

Female Terminal

515175282

$7.86

57

Female Terminal

561503100

$2.41

58

Female Terminal

561503100

$2.41

59

Female Housing

409204300

Unavailable

60

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

61

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

62

Tubing 16 Mm 1000Mm Long

219704408

$7.49

63

Tubing 10 MM 1000MM Long

219704407

$2.79

64

Tie Wrap 94 mm | 4X4

293750001

$1.03

65

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

66

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

67

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

68

Plug

515175812

$2.19

69

Female Housing, 24 Circuits

515175801

$9.59

70

Retainer Block

515175802

$11.49

71

Wire Seal

515175803

$2.99

72

BLOCK - Call your local BRP dealership

515175804

Unavailable

73

Female Terminal

515175806

$0.99

74

Tie-Rap 180 mm

414115200

$0.11

75

Male Terminal Housing, 10 Circuits

415128526

Unavailable

76

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

77

Female Terminal

515176071

Unavailable

78

HORN - Call your local BRP dealership

515176035

Unavailable

79

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

80

PLATE - Call your local BRP dealership

515175688

Unavailable

81

Pop Rivet 3/16"

390402200

$0.35

82

Silicone Sealant 51388, 300 ml

296000309

$36.99

83

RH Support

517289300

Unavailable

84

LH Support

517289400

Unavailable

85

Headlamp Screw

732601315

Unavailable

86

Grease Tube Lmz, 400 G

413707500

Unavailable
