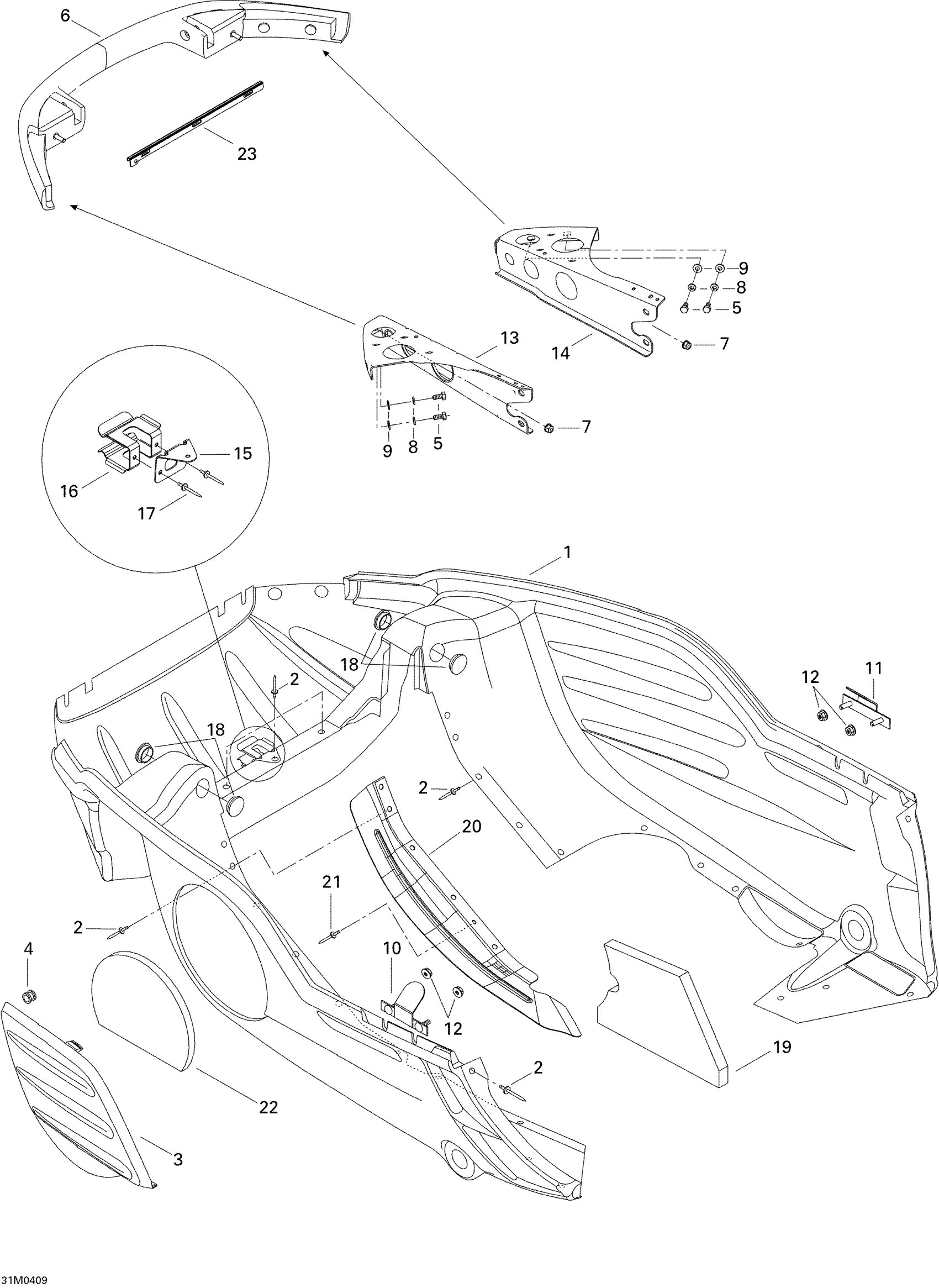

Ski-Doo Legend V-1000, 2004 09- Bottom Pan Diagram

#

Description
Price

1

Deep Black, Bottom Pan

502006633

Unavailable

2

Pop Rivet 3/16”

293150108

$1.19

3

BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership

502006506

Unavailable

4

Grommet

414036300

$2.79

5

Hex. Screw M6 X 14

207161444

$0.58

6

Bumper, Black

502006719

$101.49

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Lock Washer M6, Black

234161471

$0.53

9

Flat Washer

224061121

$0.53

10

LH Bracket

502006645

Unavailable

11

RH Bracket

502006685

Unavailable

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

LH SUPPORT - Call your local BRP dealership

502006597

Unavailable

14

RH Support

502006602

Unavailable

15

Belt Support

502006599

Unavailable

16

Bracket

517281905

$18.49

17

Pop Rivet 3/16"

390402400

$0.35

18

Black, Nylon Cap

414916600

$4.69

19

Bottom Foam

502006558

Unavailable

20

Bottom Pan Protector | 700 / WITH GRILL

502006593

Unavailable

21

Pop Rivet 3/16"

390402200

$0.35

22

Bottom Pan Door Foam

502006559

Unavailable

23

Bottom Pan Reinforcement

502006647

Unavailable
