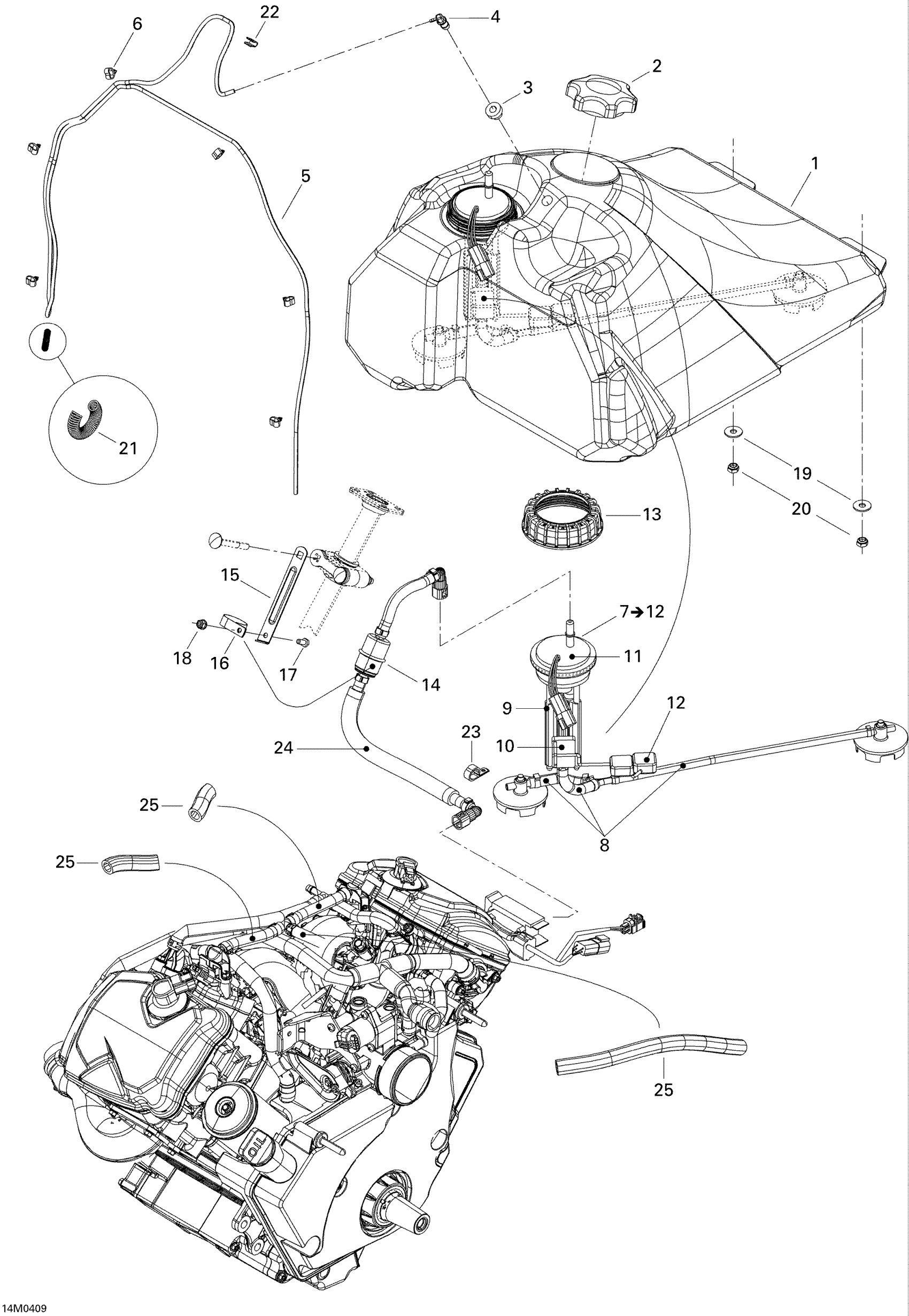

Ski-Doo Legend V-1000, 2004 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033005

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

Fuel Tank Cap

513033025

$24.49

3

Grommet

513032908

$10.49

4

Male Connector

414814100

$2.22

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

Fuel Pump Module | Includes 7 to 12

513033101

Unavailable

8

Fuel Hose Kit

861302300

Unavailable

9

Pump Kit

861302000

Unavailable

10

Resistor Card Kit

861301800

Unavailable

11

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

12

Float Lever Kit

861301900

Unavailable

13

Nut, Fuel Pump Module

513033040

$29.99

14

Fuel Filter Ass’Y

513033078

Unavailable

15

Filter Support

513033057

Unavailable

16

Open Clamp

513033047

$5.19

17

Hex. Screw M6 X 14

207161444

$0.58

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Flat Washer 8 mm

234082410

$1.47

20

Hex. Elastic Stop Nut M8

232581414

$0.56

21

SPRING - Call your local BRP dealership

414818200

Unavailable

22

Clip

414479100

$1.90

23

Open Clamp

513033082

Unavailable

24

Tubing 16 mm

513033083

Unavailable

25

Tubing 16 Mm 1000Mm Long

219704408

$7.49
