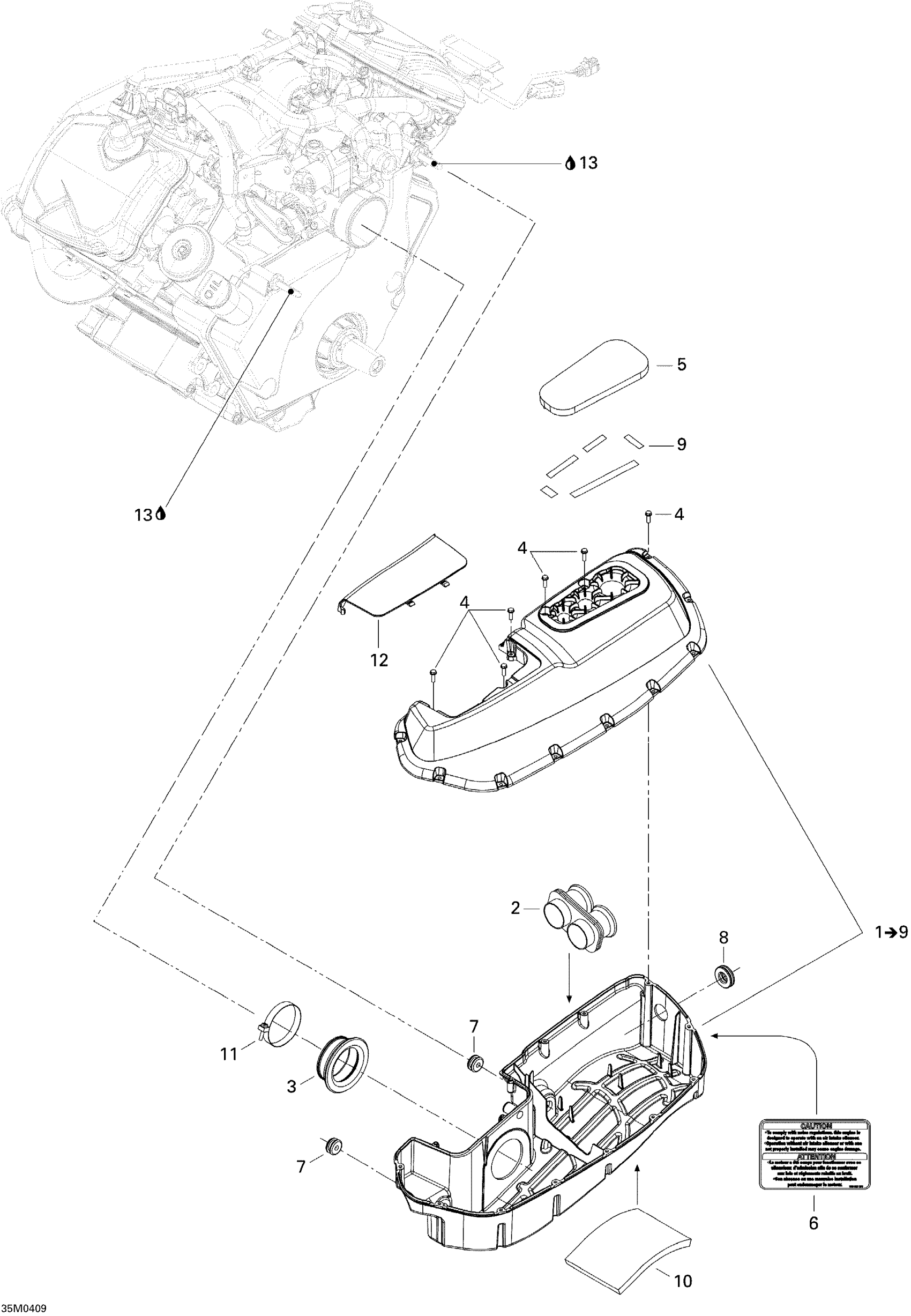

Ski-Doo Legend V-1000, 2004 02- Air Intake Diagram
#
Description
Price
1
AIR INTAKE ASS?Y - Call your local BRP dealership | Includes 1 to 9
508000315
Unavailable
2
Inlet Tube
273000107
Unavailable
3
INTAKE ADAPTATOR - Call your local BRP dealership
508000254
Unavailable
5
AIR FILTER - Call your local BRP dealership
508000251
Unavailable
6
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
7
Grommet
508000331
Unavailable
8
GROMMET - Call your local BRP dealership
570065500
Unavailable
9
VELCRO 1/2? - Call your local BRP dealership
415110900
Unavailable
10
Inferior Foam
508000250
Unavailable
11
GEMI CLAMP - Call your local BRP dealership
508000382
Unavailable
12
Door
508000253
Unavailable
