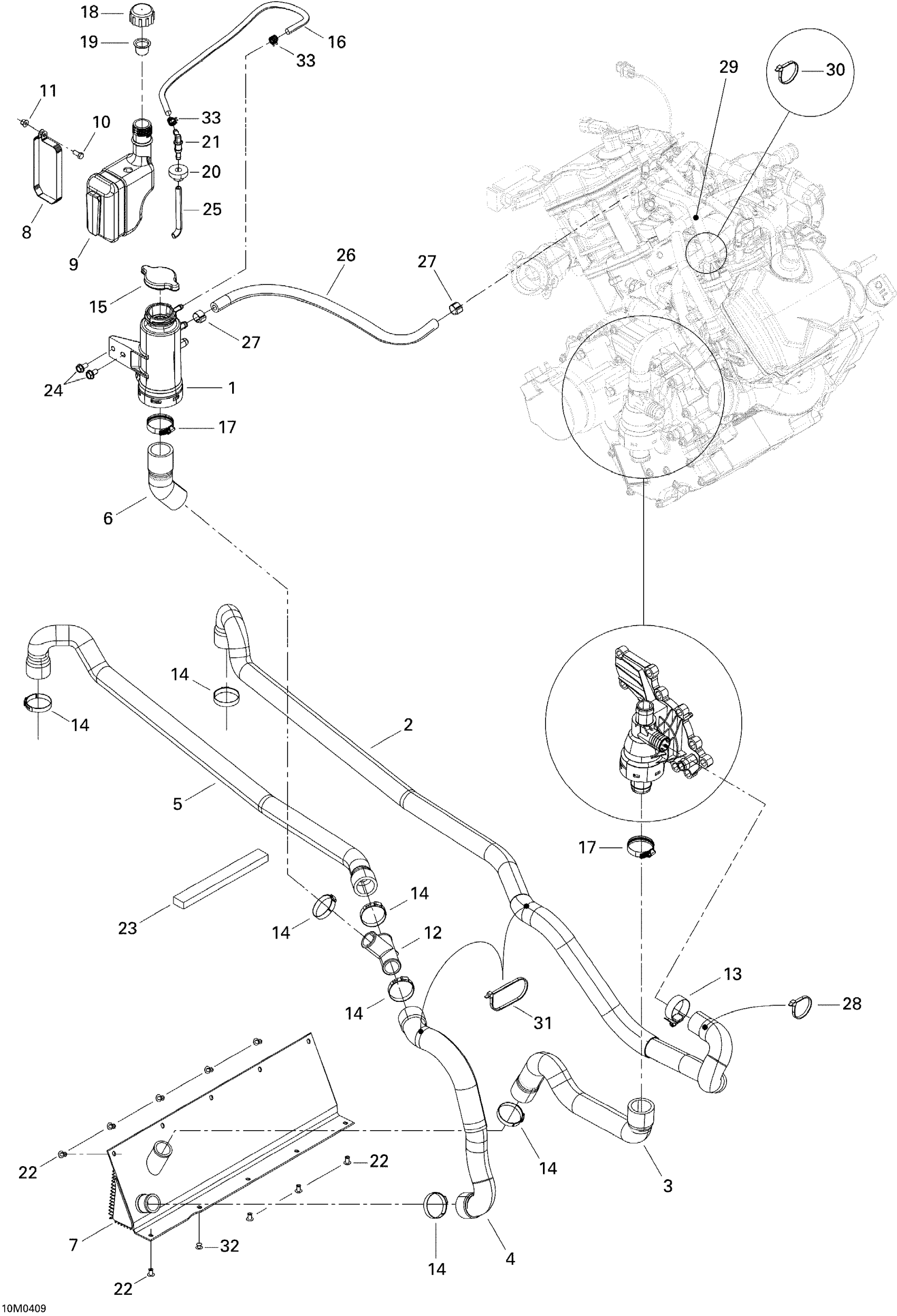

Ski-Doo Legend V-1000, 2004 Cooling System Diagram

#

Description
Price

1

FILLER NECK ASS'Y - Call your local BRP dealership

509000176

Unavailable

2

OUTLET HOSE - Call your local BRP dealership

509000103

Unavailable

3

INLET HOSE - Call your local BRP dealership

509000104

Unavailable

4

Front Hose Radiator

509000193

Unavailable

5

REAR HOSE RADIATOR - Call your local BRP dealership

509000105

Unavailable

6

Tank Hose

509000195

Unavailable

7

Front Radiator

509000146

Unavailable

8

COOLANT TANK SUPPORT - Call your local BRP dealership

509000191

Unavailable

9

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

10

Hex. Screw M5 X 12

207151244

$0.74

11

Hex. Flange Elastic Nut M5

233251414

$1.66

12

T-Fitting

509000219

$15.35

13

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

14

Oetiker Gear Clamp 36.1MM

509000045

$3.55

15

Radiator Pressure Cap

509000180

$11.69

16

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

17

Tridon Gear Clamp

293650045

$4.51

18

TANK CAP - Call your local BRP dealership

709200009

Unavailable

19

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

20

Grommet

709200285

$7.09

21

Elbow Male Connector

414580600

$3.50

22

Pop Rivet 3/16"

390402200

$0.26

23

Neoprene Seal (1PAC=3M)

219704364

$22.72

24

Hex. Flange Screw M6 X 12

210261250

$1.56

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

26

RETURN HOSE - Call your local BRP dealership

509000304

Unavailable

27

Oetiker Clamp

293650125

$2.69

28

Tie-Rap 180 mm

414115200

$0.09

29

Tubing 16 Mm 1000Mm Long

219704408

$6.23

30

Tie Wrap 142 mm

293750002

$0.88

31

Tie Wrap 368 mm

293750008

$0.85

32

Pop Rivet 3/16"

390402400

$0.25

33

Spring Clamp

414554800

$0.83
