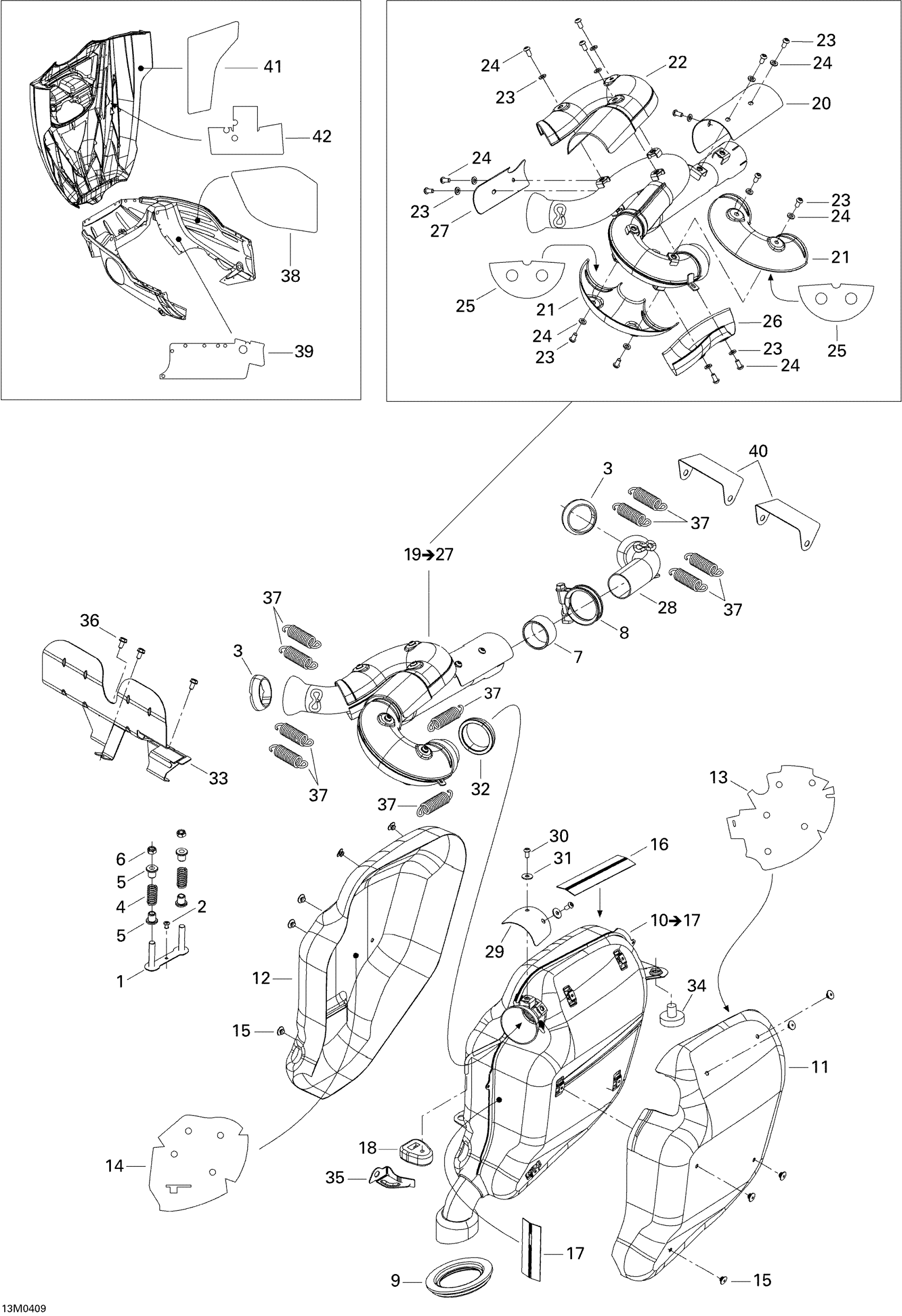

Ski-Doo Legend V-1000, 2004 Exhaust System Diagram
#
Description
Price
1
Muffler Bracket
514053263
Unavailable
6
Lock Spring Nut M8
233481413
Unavailable
8
Gear Clamp Norma
514053521
Unavailable
9
Exhaust Grommet
514053064
Unavailable
10
Muffler Ass’Y | Includes 10 to 17
514053457
Unavailable
11
RH Heat Shield
514053661
Unavailable
13
RH Wooll Insulating
514053705
Unavailable
14
LH Wooll Insulating
514053295
Unavailable
16
Upper Deflector
514053659
Unavailable
17
Rear Deflector
514053660
Unavailable
19
Muffler Pipe Ass’Y | Includes 19 to 27
514053707
Unavailable
20
Heat Shield
514053529
Unavailable
21
Heat Shield
514053530
Unavailable
22
Heat Shield
514053531
Unavailable
23
Socket Screw Button Head M6 X 10 | DS 650
250000436
Unavailable
24
Flat Washer M6, Stainless
234062600
Unavailable
25
Wooll Insulating
514053625
Unavailable
26
Shield Heat
514053626
Unavailable
27
Shield Heat
514053701
Unavailable
28
Front Pipe
514053528
Unavailable
29
Heat Shield
514053706
Unavailable
30
Socket Screw Button Head M6 X 10 | DS 650
250000436
Unavailable
31
Flat Washer M6, Stainless
234062600
Unavailable
33
Shield Heat
514053583
Unavailable
39
REFLECTIVE SHEET - Call your local BRP dealership
514053390
Unavailable
40
Front Deflector
514053620
Unavailable
41
Reflective Sheet
514053627
Unavailable
42
Reflective Sheet
514053662
Unavailable
