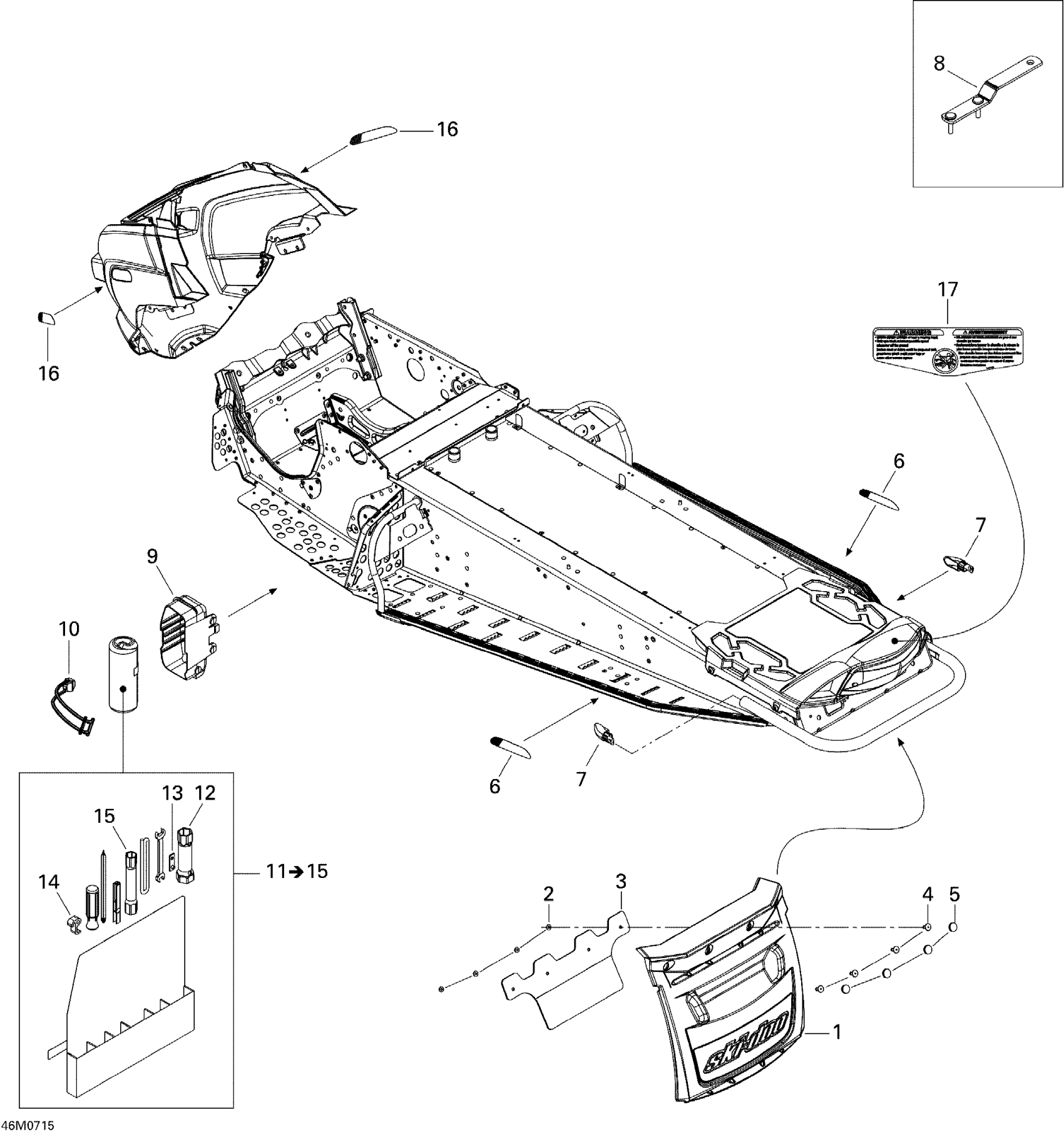

Ski-Doo Legend Trail V800, 2007 09- Utilities Trail Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership

520000531

Unavailable

2

Flat Washer

517225900

$0.18

3

Reinforcement

520000636

Unavailable

4

Pop Rivet 3/16”

293150087

$0.93

5

Black, Cap

277000203

$9.39

6

REFLECTOR - Call your local BRP dealership

520000523

Unavailable

7

CAP - Call your local BRP dealership

520000272

Unavailable

8

Adjustment Wrench | LT

520000126

$1.49

9

TRUNK - Call your local BRP dealership

520000322

Unavailable

10

Latch

520000528

$7.69

11

TOOL KIT - Call your local BRP dealership | Includes 9 to 13

529000025

Unavailable

12

Socket Wrench 21/26 mm

529014800

Unavailable

13

ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14

529024400

Unavailable

14

Starter Grip

529000060

$14.15

15

Socket Wrench 16/18 mm

295000175

Unavailable

16

REFLECTOR - Call your local BRP dealership

520000525

Unavailable

17

WARNING LABEL, TRACK SECURITY - Call your local BRP dealership

516003034

Unavailable
