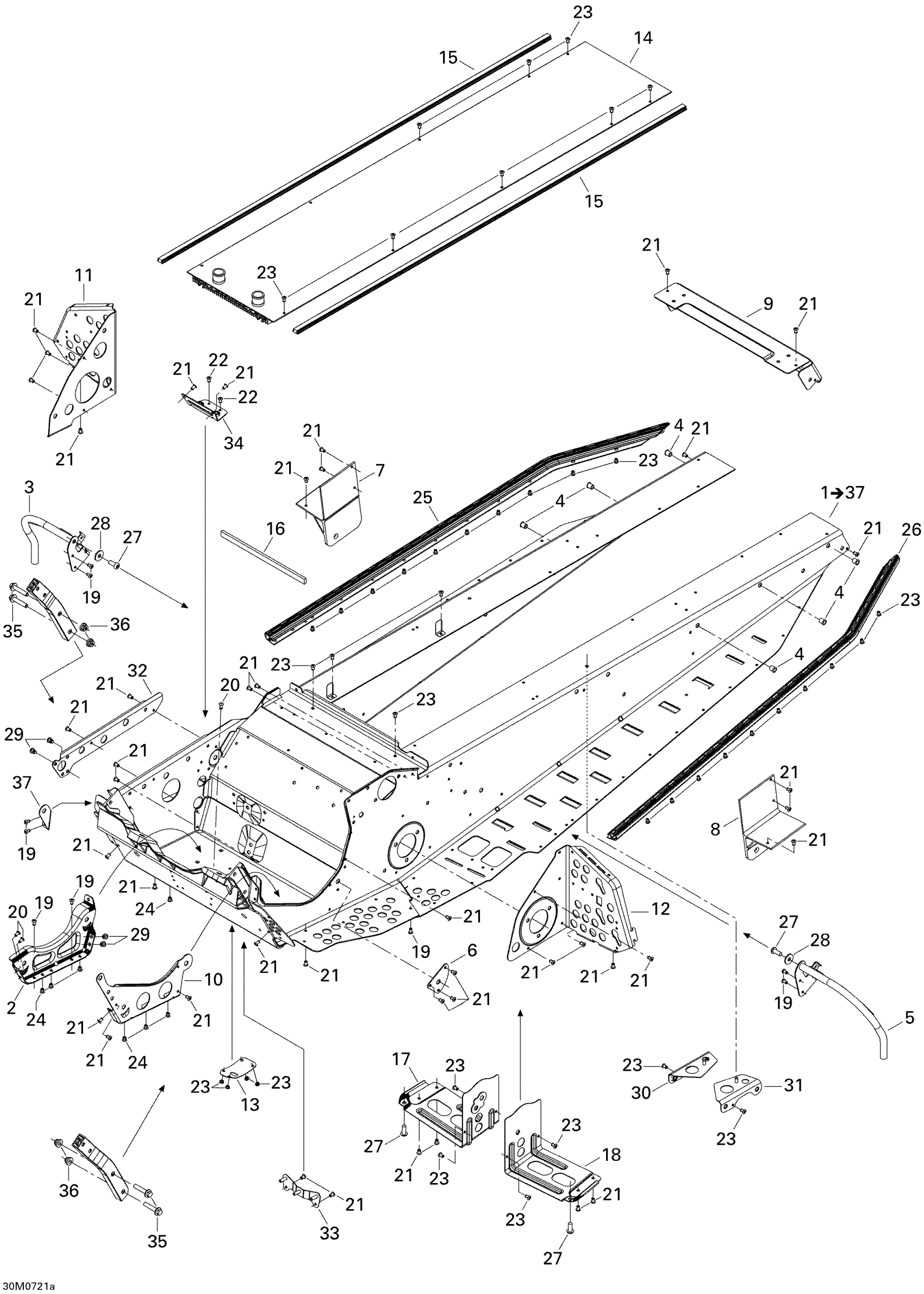

Ski-Doo Legend Trail V800, 2007 Frame Trail Diagram

#

Description
Price

1

Frame 121" | Includes 1 to 37

415129227

Unavailable

2

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

$12.65

3

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

$36.12

4

Insert

293450275

$9.89

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

$8.77

7

RH Slide Bracket

518325340

Unavailable

8

LH Slide Bracket

518325341

Unavailable

9

REAR CAP - Call your local BRP dealership

518325101

$17.40

10

INNER REINFORCEMENT - Call your local BRP dealership

518323995

$15.02

11

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518325196

$26.12

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

$17.66

13

PLATE - Call your local BRP dealership

518324169

$5.57

14

Not Available As Spare Parts

XXX

Unavailable

15

RADIATOR PROTECTOR - Call your local BRP dealership | Formula III 600 LT.

415012300

Unavailable

16

GASKET - Call your local BRP dealership

293200104

$1.57

17

RH Footrest Reinforcement, Black

518325334

Unavailable

18

LH FOOTREST REINFORCEMENT, BLACK - Call your local BRP dealership

518325335

$18.43

19

Avex Rivet

390909200

$0.29

20

Avex Rivet

390909100

$0.29

21

Pop Rivet 3/16"

390402200

$0.26

22

Pop Rivet 3/16"

390402300

$0.75

23

Pop Rivet 3/16"

390402400

$0.25

24

HENROB RIVET - Call your local BRP dealership

390910300

$0.54

25

RH ROLLER - Call your local BRP dealership

518324957

$62.28

26

LH ROLLER - Call your local BRP dealership

518324958

$66.89

27

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

$1.94

28

Flat Washer 8 mm

234082410

$1.11

29

Hemlock Rivet, 6.5 mm

293150096

$3.17

30

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

$11.97

31

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

$11.97

32

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

$8.86

33

Holder

518324599

Unavailable

34

HOLDER PLATE - Call your local BRP dealership

518324207

$12.77

35

Hex. Flange Screw M8 X 40

207684044

$1.25

36

Hex. Flange Elastic Nut M8

233281414

$1.14

37

RH SUPPORT - Call your local BRP dealership

518324906

$8.77
