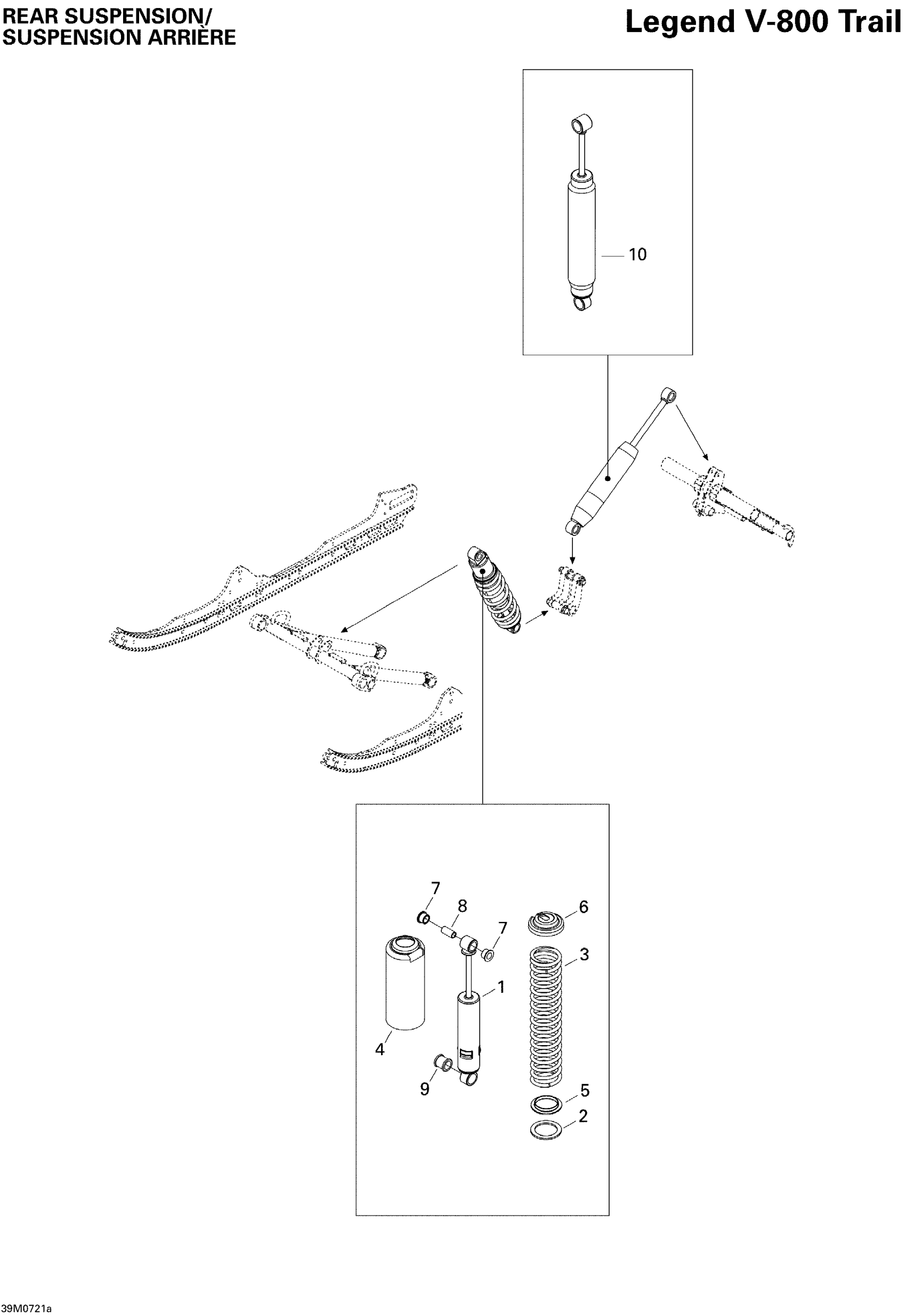

Ski-Doo Legend Trail V800, 2007 Rear Suspension Shocks Trail Diagram

#

Description

Price

1

CENTER SHOCK - Call your local BRP dealership

503191521

Unavailable

2

WASHER - Call your local BRP dealership

503184400

Unavailable

3

SPRING - Call your local BRP dealership

503189325

Unavailable

4

Protector

503193663

$34.30

5

SPRING GUIDE - Call your local BRP dealership

505071954

Unavailable

6

Spring Stopper

706200881

$11.82

7

Urethane Bushing

503189117

$6.67

8

Bushing | Includes 240d to 240d1

503189282

$4.06

9

Bushing

503189271

$10.15

10

REAR SHOCK - Call your local BRP dealership

503191522

Unavailable
