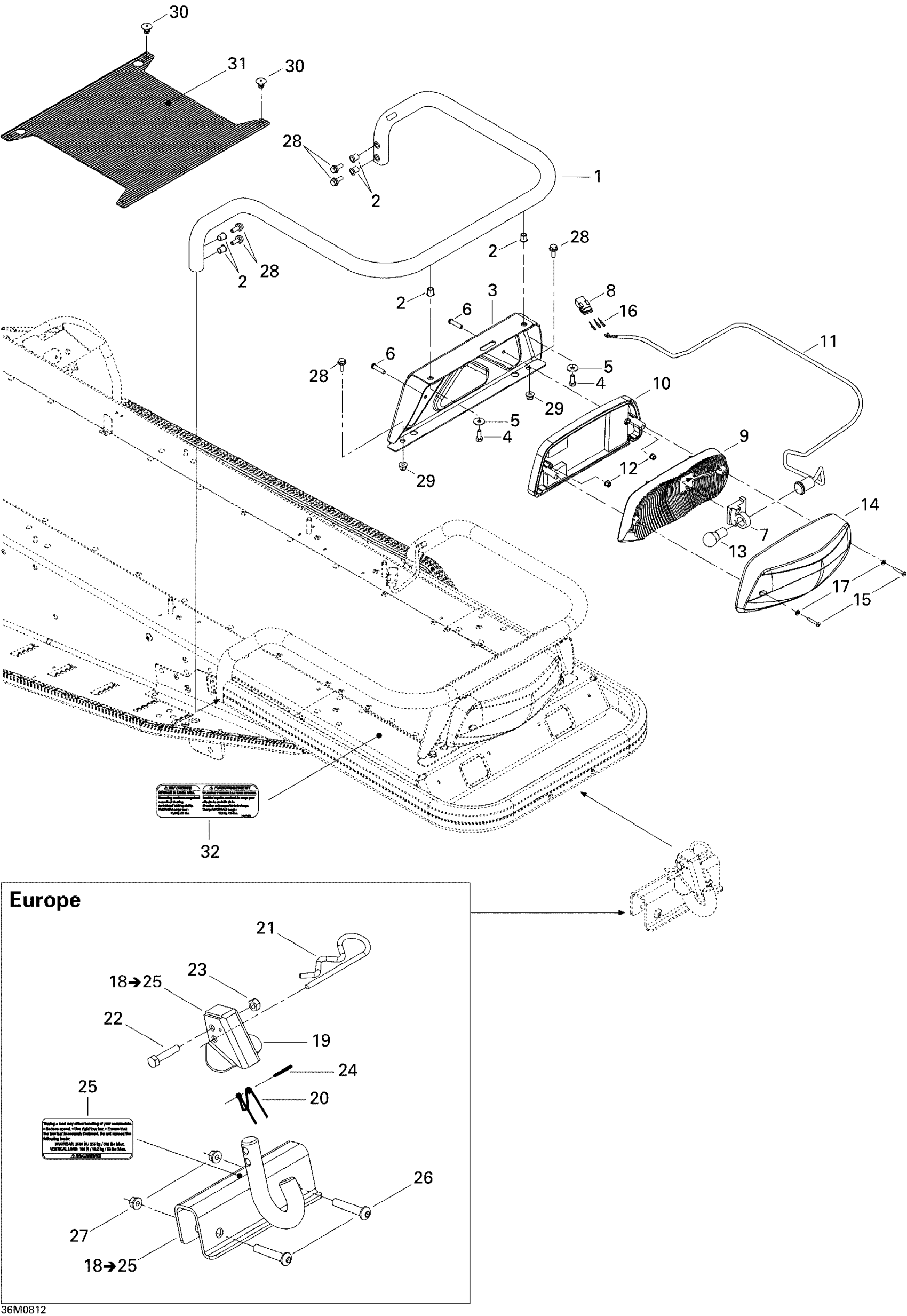

Ski-Doo Legend Touring V800, 2008 09- Luggage Rack Diagram

#

Description
Price

1

LUGGAGE RACK - Call your local BRP dealership

511000422

Unavailable

2

Insert

293450275

$12.99

3

REAR LIGHT SUPPORT - Call your local BRP dealership

511000187

Unavailable

4

Hex. Screw M6 X 16

207161644

$0.74

5

Flat Washer

250200082

$0.42

6

SOCKET SCREW M5 X 25 - Call your local BRP dealership

205452560

Unavailable

7

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

8

Male Housing, 3 Circuits

515175494

$16.18

9

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

10

REAR LIGHT HOUSING - Call your local BRP dealership

515176272

Unavailable

11

BULB SOCKET - Call your local BRP dealership

511000448

Unavailable

12

Hex. Flange Elastic Nut M5

233251414

$1.04

13

Bulb

520000758

$9.10

14

Lens

511000315

$36.99

15

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

16

Male Terminal

515175232

$1.58

17

Washer - Call your local BRP dealership

414516400

Unavailable

18

HITCH ASS'Y - Call your local BRP dealership | Includes 17 to 23, Europe

511000509

Unavailable

19

PAWL - Call your local BRP dealership | Europe

511000514

Unavailable

20

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

21

Hair Pin

114045200

$11.11

22

Hex. Flange Screw M6 X 35

207063544

$1.37

23

Elastic Stop Nut M6

232561414

$0.55

24

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

25

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

26

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

27

Hex. Flange Elastic Nut M8

233281414

$1.47

28

Hex. Flange Screw M6 X 20

207662044

$2.00

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Pop Rivet 3/16"

293150103

$0.55

31

ANTI SLIP MAT - Call your local BRP dealership

511000495

Unavailable

32

MAXIMUM CARGO LOAD LABEL - Call your local BRP dealership

516003039

Unavailable
