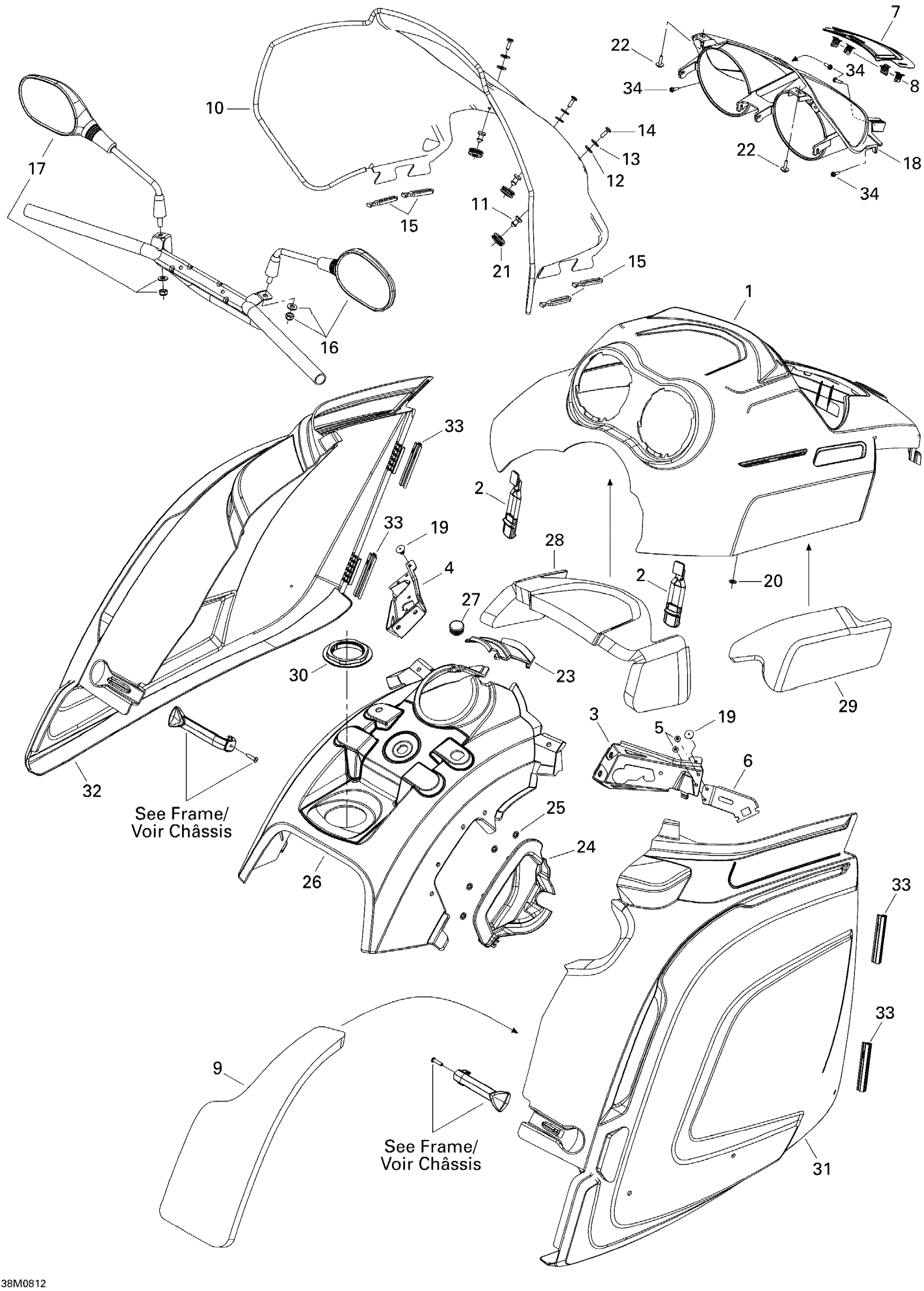

Ski-Doo Legend Touring V800, 2008 09- Hood Diagram

#

Description
Price

1

HOOD - Call your local BRP dealership

517303844

Unavailable

2

Latch

517303518

$12.99

3

RH Bracket

517303662

Unavailable

4

LH Bracket

517303663

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

BRACKET - Call your local BRP dealership

517303517

Unavailable

7

Center Hood Grille

517303331

Unavailable

8

Edge Clip

517302785

$0.88

9

RH PANEL FOAM, REAR - Call your local BRP dealership

517303457

Unavailable

10

Windshield, High

517303440

$143.49

11

Knob

517303439

$4.55

12

Rubber Washer 5 mm

250200024

$2.19

13

Washer M5

250200025

$0.74

14

Torx Screw K50 X 16

250000720

$1.69

15

Windshield Latch

570023800

$4.49

16

RH MIRROR ASS'Y - Call your local BRP dealership

517303629

Unavailable

17

LH MIRROR ASS'Y - Call your local BRP dealership

517303630

Unavailable

18

Headlight Moulding

517303390

Unavailable

19

Pop Rivet 3/16"

293150103

$0.55

20

Push Nut

732610072

$2.19

21

Grommet

517302841

$7.89

22

Screw M4 X 16

250000725

$3.49

23

CONSOLE CAP - Call your local BRP dealership

517303458

Unavailable

24

RH CONSOLE - Call your local BRP dealership

517303589

Unavailable

25

Push Nut

732610072

$2.19

26

CENTER CONSOLE - Call your local BRP dealership

517303641

Unavailable

27

CAP - Call your local BRP dealership

706200474

Unavailable

28

Hood Foam

517303664

Unavailable

29

RH Hood Foam

517303486

Unavailable

30

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

31

RH Panel

517303644

Unavailable

32

LH PANEL - Call your local BRP dealership

517303633

Unavailable

33

Hinge Lock

517302823

$13.99

34

Hex. Tapping Screw #8 X 5/8"

250000068

$1.90
