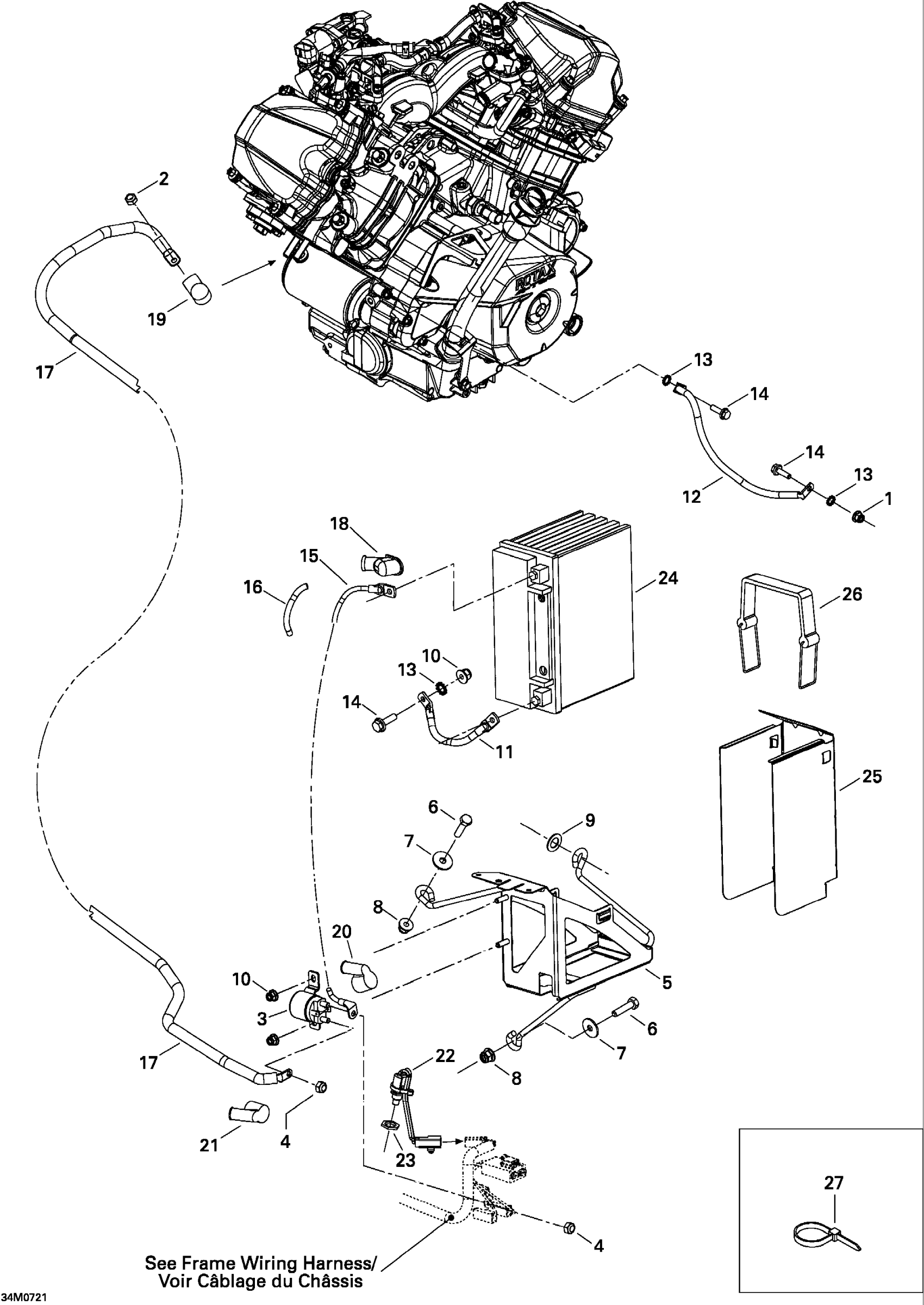

Ski-Doo Legend Touring V800, 2007 10- Battery And Starter Diagram

#

Description
Price

1

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2

Elastic Stop Nut M6

232561414

$0.55

3

Starter Relay

515176011

$62.49

4

Elastic Stop Nut M6

232561414

$0.55

5

BATTERY SUPPORT - Call your local BRP dealership

515176401

Unavailable

6

Hex. Screw M6 X 25

207162544

$1.15

7

Flat Washer

224061201

$1.37

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Washer

503175800

$3.28

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Ground Wire

515175749

$20.99

12

Ground Wire

515176407

Unavailable

13

External Serrated Lock Washer 6 mm

234461608

$1.15

14

Hex. Flange Screw M6 X 20

207662044

$2.00

15

Battery Wire

515175904

$19.99

16

Was 409901700 Tubing (9 mm)

219704399

$84.99

17

Battery Wire

515176392

Unavailable

18

Protector Cap

710000495

$10.99

19

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

20

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

21

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

22

Switch Ass'y

515176472

$72.99

23

BRASS NUT - Call your local BRP dealership

250100012

Unavailable

24

Battery, 12 Volts, 21 Amperes

410922962

$194.99

25

DEFLECTOR - Call your local BRP dealership

515175616

Unavailable

26

Battery Strap This part replaces 515175955.

605356180

$27.99

27

Tie-Rap 180 mm

414115200

$0.11

27

Tie Wrap 368 mm

293750008

$1.04

27

Tie Wrap 142 mm

293750002

$1.25

27

Tie-Rap 173 mm

293750009

$1.04
