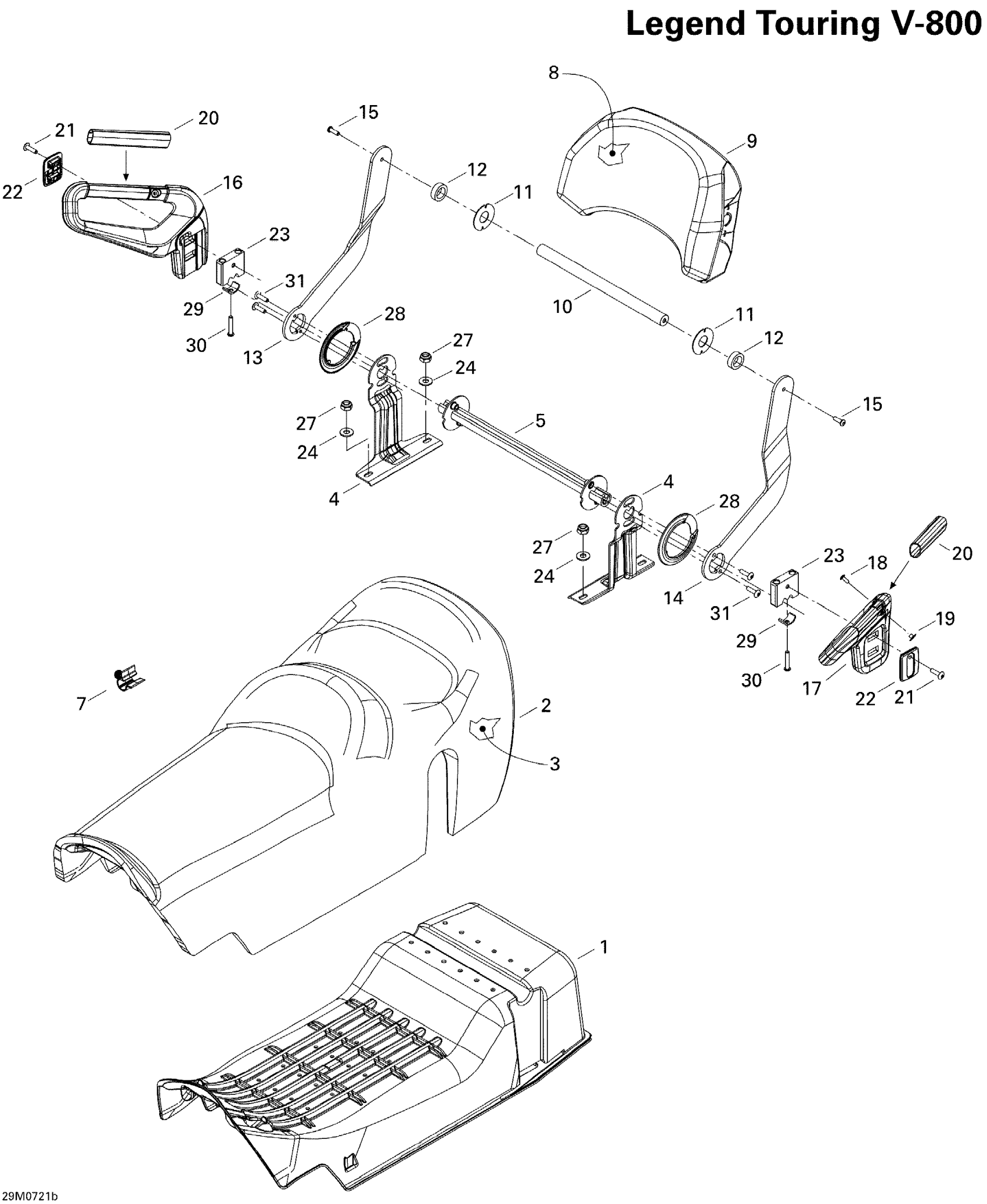

Ski-Doo Legend Touring V800, 2007 Seat Touring Diagram

#

Description
Price

1

Seat Base

510004668

Unavailable

2

SEAT COVER - Call your local BRP dealership

510004669

Unavailable

3

Foam

510004670

Unavailable

4

T PLATE - Call your local BRP dealership

510004662

Unavailable

5

CROSS MEMBER - Call your local BRP dealership

510004663

Unavailable

7

Hose Retainer

275500528

Unavailable

8

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

9

BACKRESS COVER - Call your local BRP dealership

510004761

Unavailable

10

Upper Backrest Axle

510004377

$44.00

11

Washer

510004379

$8.69

12

Rubber Shim

510004378

$8.36

13

RH ARM, BLACK - Call your local BRP dealership

510004373

Unavailable

14

LH ARM, BLACK - Call your local BRP dealership

510004375

Unavailable

15

SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership

205982586

Unavailable

16

RH HANDLE - Call your local BRP dealership

510005865

Unavailable

17

LH Handle

510005862

$117.13

18

Torx Truss Screw M6 X 16

250000721

$1.60

19

Nut Welded, M6

293100003

$7.25

20

Handle Grip

510004449

$10.33

21

Hex Torx Truss M8 X30

250000745

$2.96

22

Passenger Handle Trim

510006602

$11.36

23

HANDLE LINK - Call your local BRP dealership

510004530

Unavailable

24

Flat Washer 8 mm

234082410

$1.27

27

Hex. Elastic Stop Nut M8

232581414

$0.54

28

SPACER - Call your local BRP dealership

510004713

Unavailable

29

HANDLE CLAMP - Call your local BRP dealership

510004565

Unavailable

30

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000220

Unavailable

31

Hex Torx Truss M8 X30

250000745

$2.96
