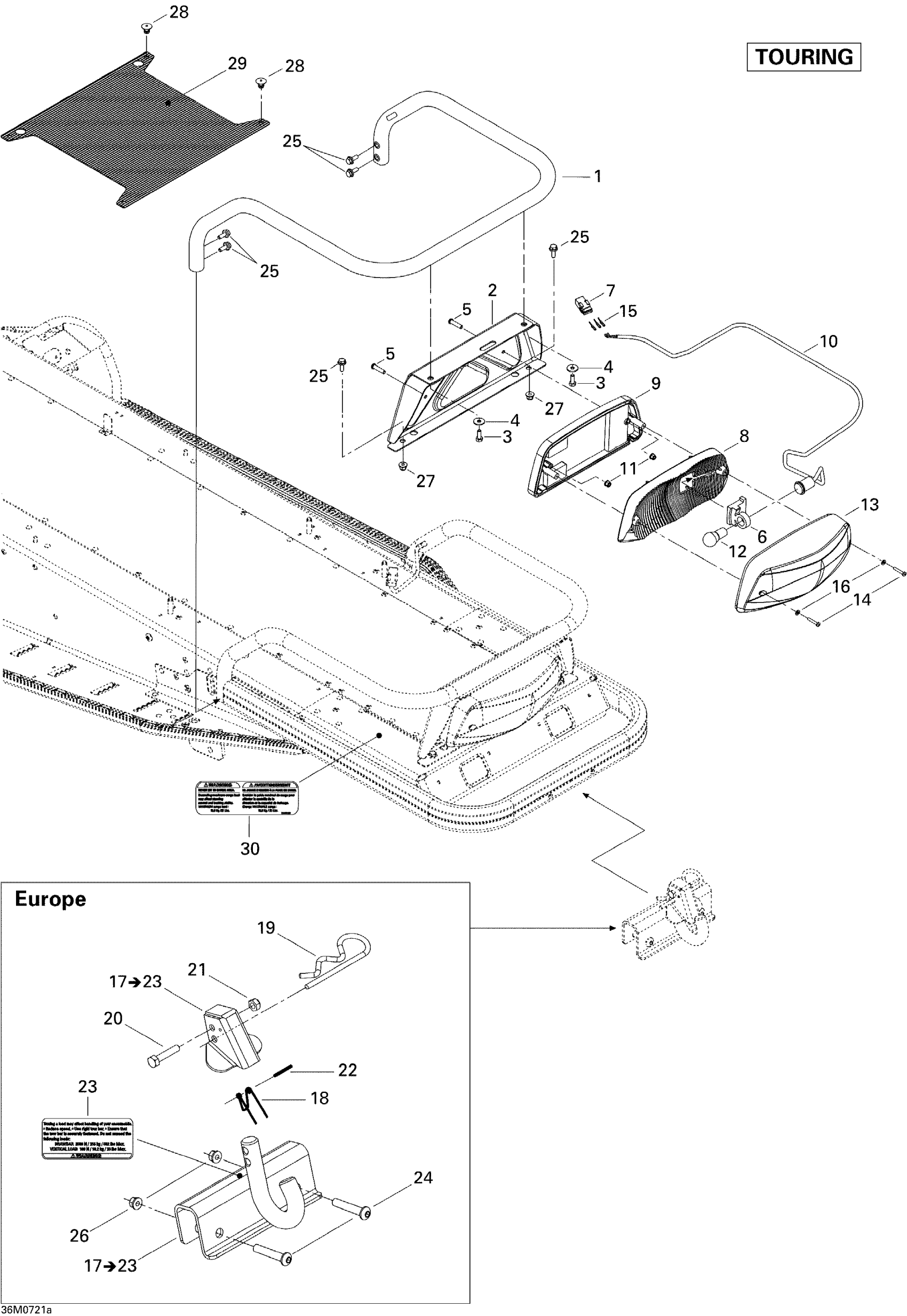

Ski-Doo Legend Touring V800, 2007 09- Luggage Rack Touring Diagram

#

Description
Price

1

LUGGAGE RACK - Call your local BRP dealership

511000422

Unavailable

2

REAR LIGHT SUPPORT - Call your local BRP dealership

511000187

Unavailable

3

Hex. Screw M6 X 16

207161644

$0.74

4

Flat Washer

250200082

$0.42

5

SOCKET SCREW M5 X 25 - Call your local BRP dealership

205452560

Unavailable

6

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

7

Male Housing, 3 Circuits

515175494

$16.18

8

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

9

REAR LIGHT HOUSING - Call your local BRP dealership

515176272

Unavailable

10

BULB SOCKET - Call your local BRP dealership

511000448

Unavailable

11

Hex. Flange Elastic Nut M5

233251414

$1.04

12

Bulb

520000758

$9.10

13

Lens

511000315

$36.99

14

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

15

Male Terminal

515175232

$1.58

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

HITCH ASS'Y - Call your local BRP dealership | Includes 17 to 23, Europe

511000509

Unavailable

18

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

19

Hair Pin

114045200

$11.11

20

Hex. Flange Screw M6 X 35

207063544

$1.37

21

Elastic Stop Nut M6

232561414

$0.55

22

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

23

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

24

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

25

Hex. Flange Screw M6 X 20

207662044

$2.00

26

Hex. Flange Elastic Nut M8

233281414

$1.47

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

Pop Rivet 3/16"

293150103

$0.55

29

ANTI SLIP MAT - Call your local BRP dealership

511000495

Unavailable

30

MAXIMUM CARGO LOAD LABEL - Call your local BRP dealership

516003039

Unavailable
