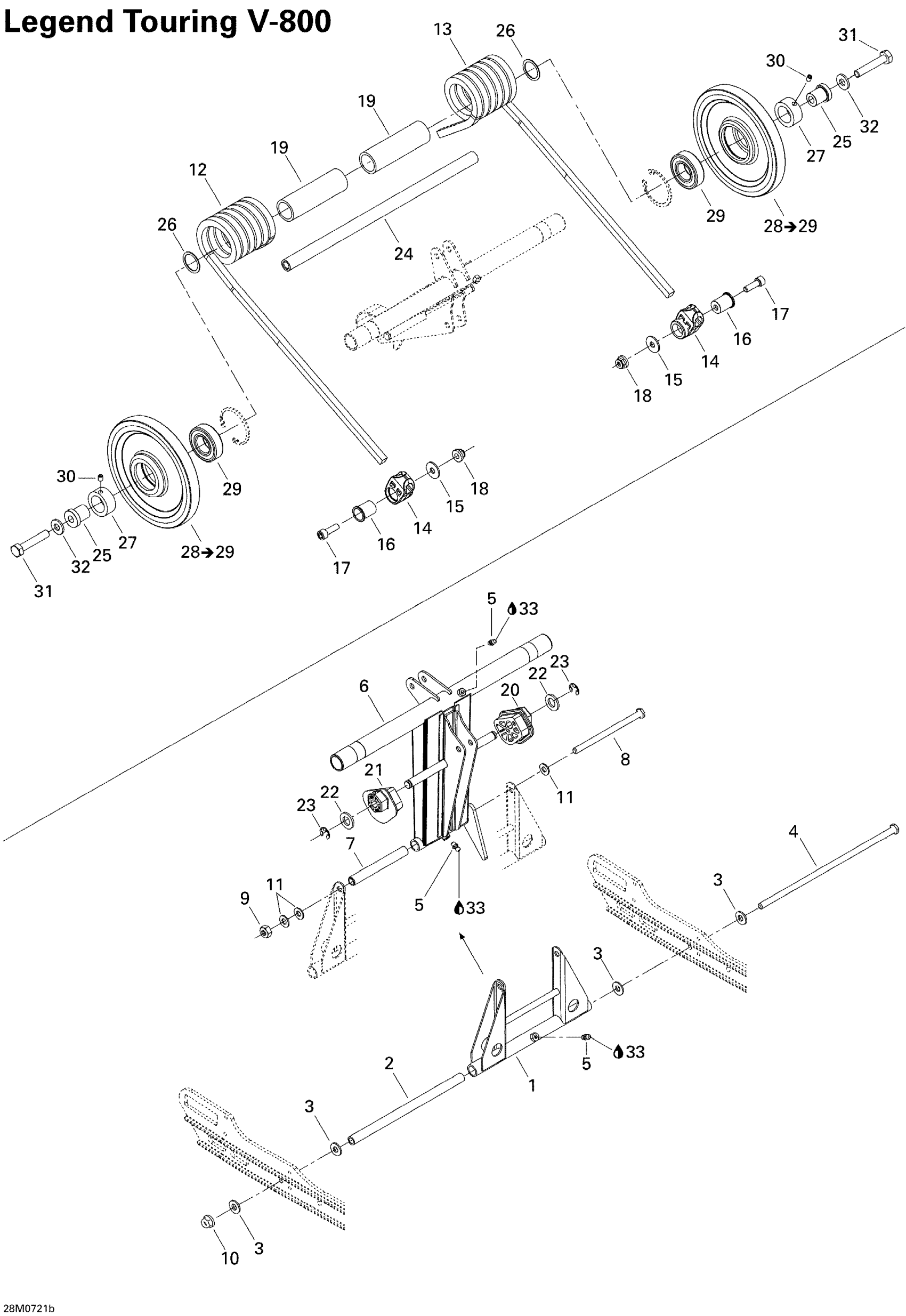

Ski-Doo Legend Touring V800, 2007 08- Rear Arm Touring Diagram

#

Description
Price

1

PIVOT ARM - Call your local BRP dealership

503191372

Unavailable

2

Pivot Arm Axle

503189156

$21.99

3

Washer

503189157

$3.28

4

Bolt M8 X 248mm

503192440

$30.49

5

Grease Fitting

408200700

$3.49

6

Rear Arm

503191057

Unavailable

7

Upper Axle, Pivot Arm

503144300

$11.65

8

Bolt M8, Short

732601197

$15.36

9

Hex. Elastic Stop Nut M8

232581414

$0.56

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Flat Washer 8 mm

234081410

$0.83

12

RH Spring | Except Europe

503191251

$79.49

13

LH Spring | Except Europe

503191253

$79.49

14

SPRING SUPPORT - Call your local BRP dealership

503191539

Unavailable

15

Flat Washer 8 mm

234082410

$1.47

16

Spring Support Kit

861805547

$10.49

17

Socket Head Screw M8 X 25

205082544

$1.15

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

BUSHING - Call your local BRP dealership

503190333

Unavailable

20

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

21

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

22

Washer | 7415/7416. 7417/7418.

503189148

$2.85

23

E-Circlip

293370013

$0.65

24

SHAFT - Call your local BRP dealership

503190387

Unavailable

25

BUSHING - Call your local BRP dealership

503190422

Unavailable

26

Washer

503190328

$12.65

27

Retaining Ring

503168800

$14.99

28

WHEEL 165 - Call your local BRP dealership | Includes 28 to 29

503191359

Unavailable

29

Ball Bearing

503193548

$17.99

30

Socket Set Screw M6 X 8

206260844

$1.48

31

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

32

Washer

732900049

$0.58

33

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
