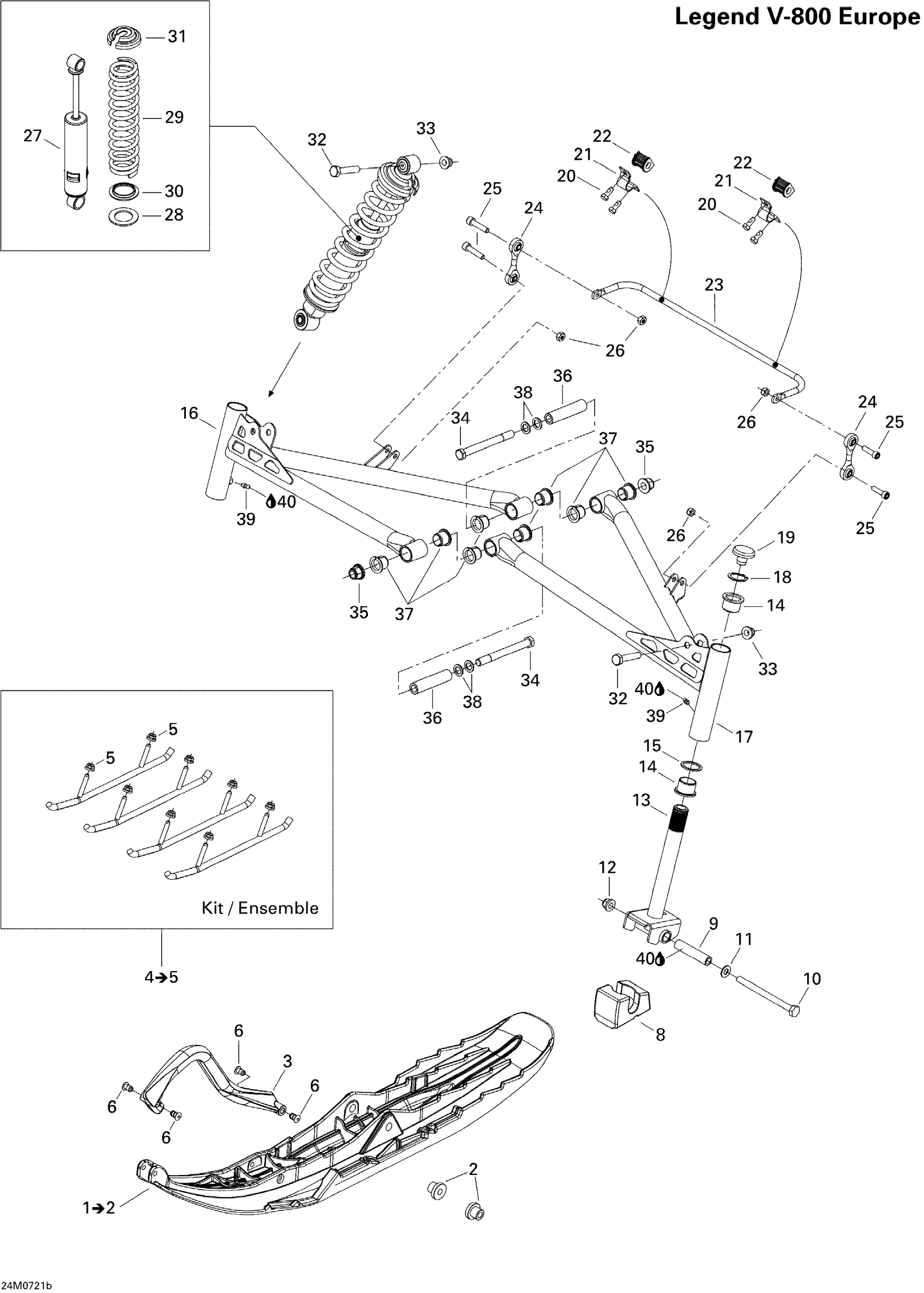

Ski-Doo Legend Touring V800, 2007 07- Front Suspension And Ski EUR Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$179.99

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$179.99

2

Ski Bushing

505071781

$16.18

3

Black, Handle

505070963

$35.99

4

Square Carbide Runner Kit | Includes 5 to 6

860511800

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Retainer 17mm long

505071812

$5.95

8

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

9

Spacer

506133300

$23.99

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

11

Flat Washer 10 mm

234001410

$1.26

12

Hex. Flange Elastic Nut M10

233201414

$1.58

13

SKI LEG - Call your local BRP dealership

505072001

Unavailable

14

Cushion

505070003

$9.23

15

WASHER - Call your local BRP dealership

505070004

Unavailable

16

RH LOWER ARM - Call your local BRP dealership

505071739

Unavailable

17

LH LOWER ARM - Call your local BRP dealership

505071740

Unavailable

18

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

19

Cap

572091300

$12.99

20

SCREW-HEX.CAP WITH NYLON PATCH - Call your local BRP dealership

250000281

Unavailable

21

CLAMP - Call your local BRP dealership

506095800

Unavailable

22

TORSION BUSHING - Call your local BRP dealership

505072225

Unavailable

23

STABILISATOR - Call your local BRP dealership

505072226

Unavailable

24

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

25

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

26

Hex. Elastic Stop Nut M8

232581414

$0.56

27

Front Shock

505071487

Unavailable

28

WASHER - Call your local BRP dealership

503184400

Unavailable

29

YELLOW SPRING - Call your local BRP dealership

505072234

Unavailable

30

SPRING GUIDE - Call your local BRP dealership

505071954

Unavailable

31

Spring Stopper

706200881

$12.99

32

Hex. Screw M10 X 55

207005544

$2.22

33

Hex. Flange Elastic Nut M10

233201414

$1.58

34

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

35

Hex. Flange Elastic Nut M12

233221414

$7.69

36

BUSHING - Call your local BRP dealership

505071366

Unavailable

37

BUSHING - Call your local BRP dealership

505072094

Unavailable

38

Washer

503189276

$3.28

39

Grease Fitting

408200700

$3.49

40

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
