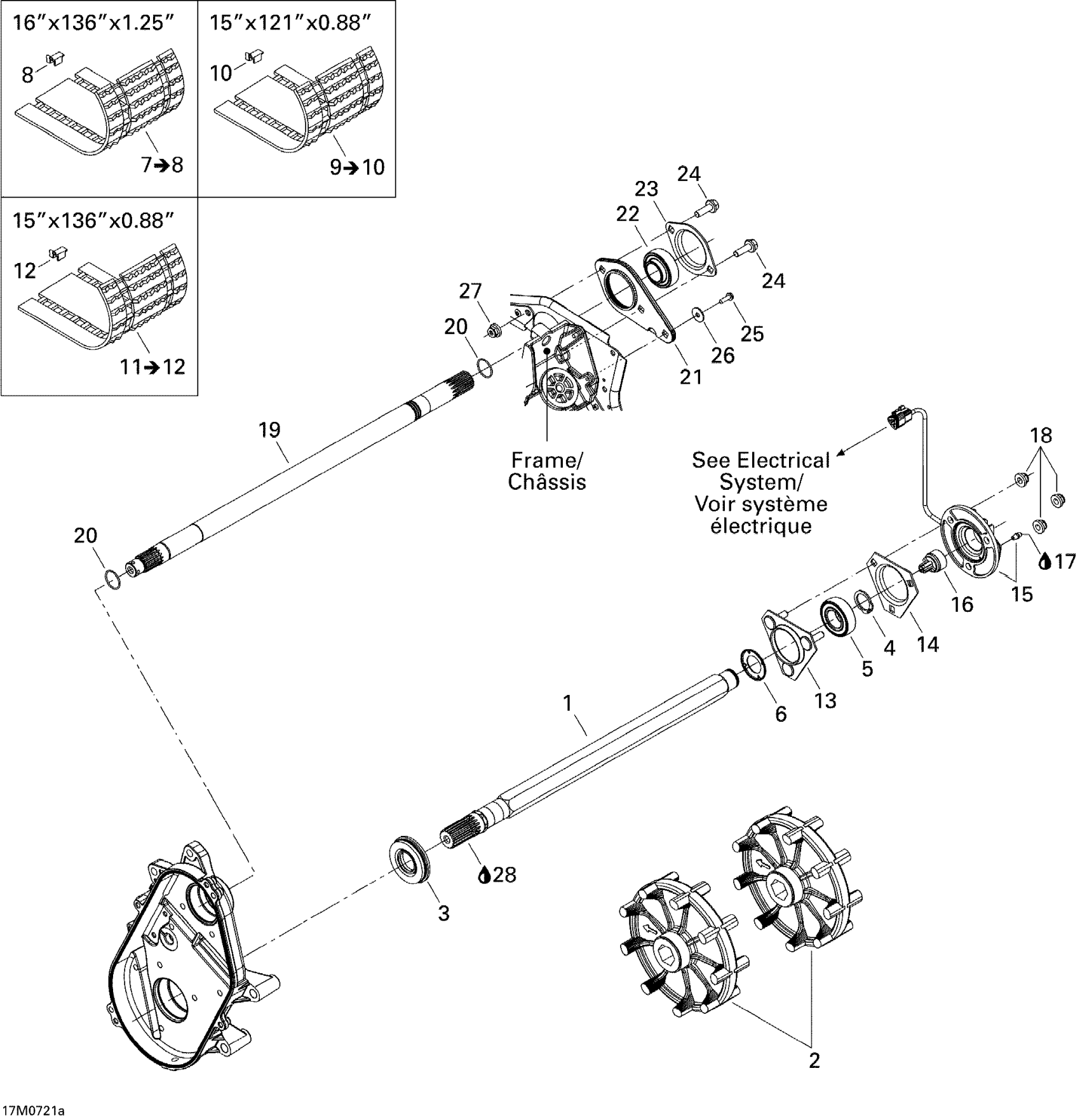

Ski-Doo Legend Touring V800, 2007 05- Drive System 1 Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

Oil Seal Ass'y

504151918

$20.49

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track 16" X 136" X 1.25" Ass'y | Includes 7 to 9

504152456

$899.99

8

Track Guide | Track Width 16''

415129528

$3.29

9

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

$719.99

10

Track Guide | Track Width 16''

415129528

$3.29

11

Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.

504152455

$799.99

12

Track Guide | Track Width 16''

415129528

$3.29

13

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

14

FLANGE - Call your local BRP dealership

501025000

Unavailable

15

Rotation Sensor

504152345

$71.99

16

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

17

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

COUNTER SHAFT - Call your local BRP dealership

504152292

Unavailable

20

Circlip

371910000

$1.19

21

SPACER - Call your local BRP dealership

504151968

Unavailable

22

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

23

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

25

Hex. Flange Screw, Scotch Grip

207551634

$2.00

26

Flat Washer

224061201

$1.37

27

Hex. Flange Elastic Nut M8

233281414

$1.47

28

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
