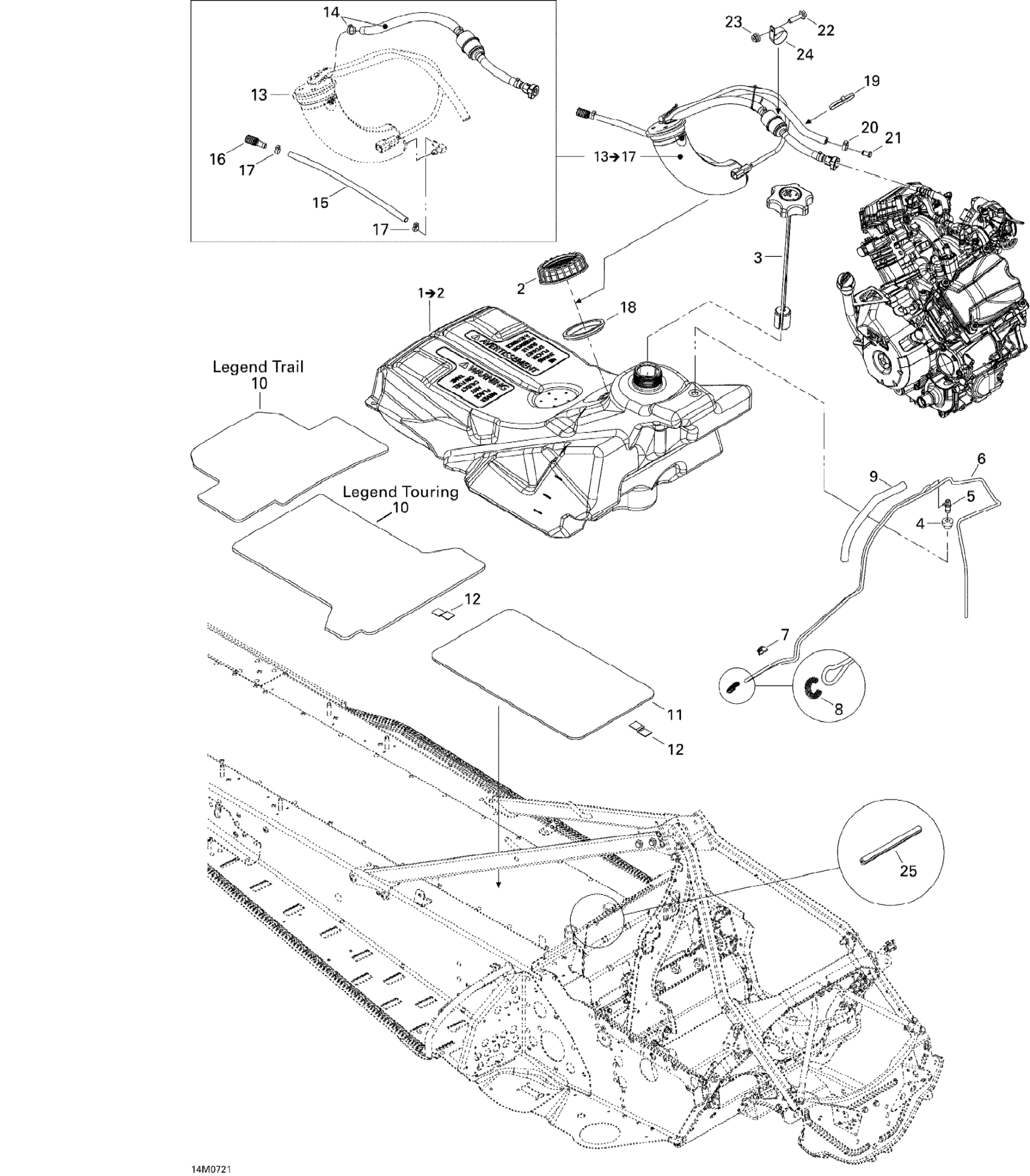

Ski-Doo Legend Touring V800, 2007 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership | Includes 1 to 2

513033181

Unavailable

2

Nut, Fuel Pump Module

513033040

$29.99

3

Fuel Tank Cap

513033361

$59.99

4

Grommet

513032908

$10.49

5

Male Connector

414814100

$2.22

6

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

7

Clip

414227300

$1.67

8

SPRING - Call your local BRP dealership

414818200

Unavailable

9

Tubing 10 MM 1000MM Long

219704407

$2.79

10

ANTI SLIP MAT - Call your local BRP dealership | Legend Trail

511000498

Unavailable

10

ANTI SLIP MAT - Call your local BRP dealership

511000499

Unavailable

11

RADIATOR COVER SHIM - Call your local BRP dealership

511000500

Unavailable

12

Tape

293740005

Unavailable

13

Fuel Pump Module | Includes 13 to 17

513033145

Unavailable

14

FUEL FILTER - Call your local BRP dealership

415129208

Unavailable

15

Hose

513033070

$14.99

16

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

17

Norma Spring Clamp

513033010

$9.69

18

SEAL - Call your local BRP dealership

513033039

Unavailable

19

Tie-Rap 180 mm

414115200

$0.11

20

Crimp Clamp, 15.3-706R

293650047

$3.29

21

PLUG, 8 MM - Call your local BRP dealership

293000107

Unavailable

22

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Open Clamp

513033047

$5.19

25

TRIM - Call your local BRP dealership

509000263

Unavailable
