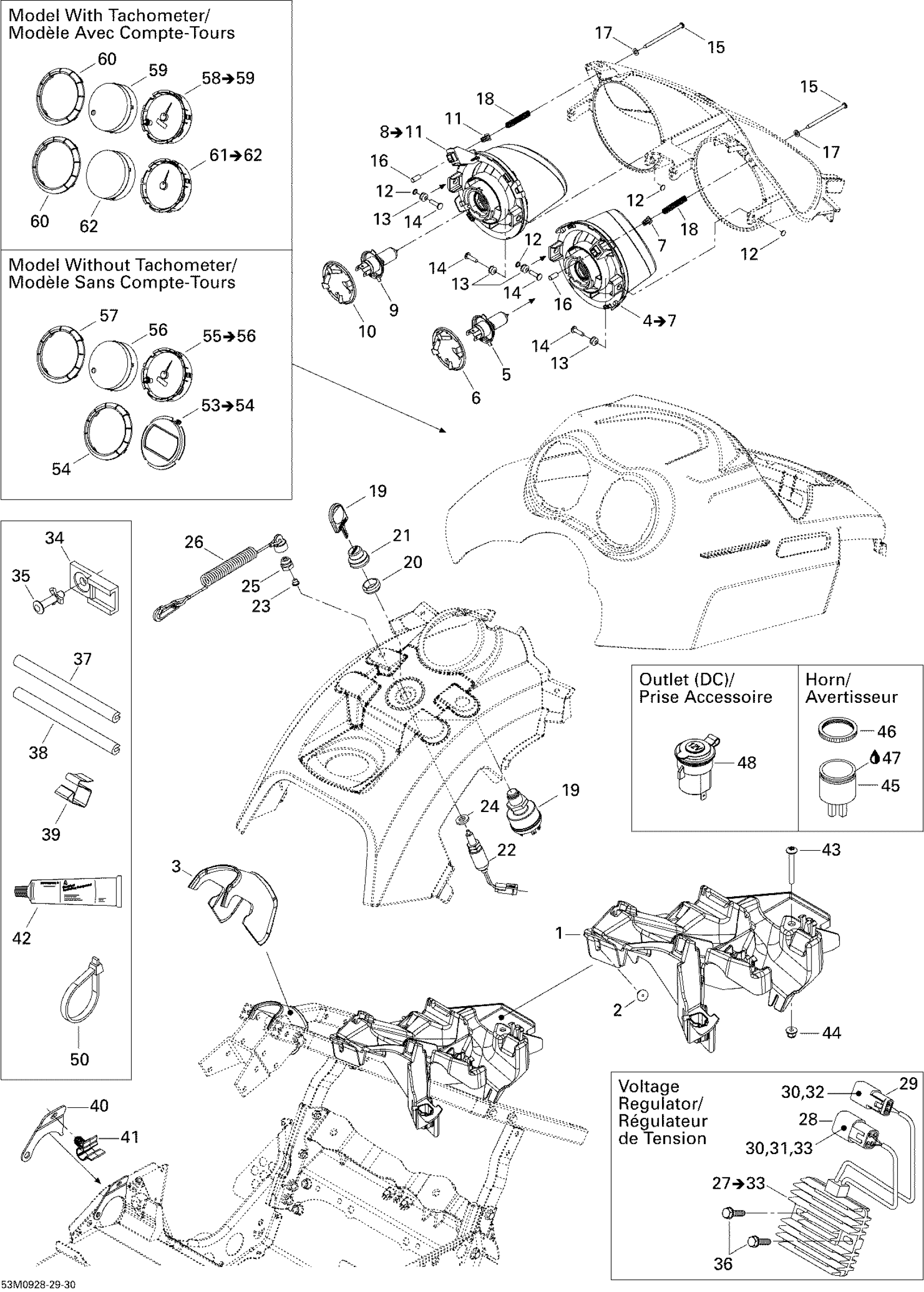

Ski-Doo Legend Touring, 2009 10- Electrical Accessories Diagram

#

Description
Price

1

PLATE - Call your local BRP dealership

515176336

Unavailable

2

Pop Rivet 3/16"

293150103

$0.55

3

PROTECTOR - Call your local BRP dealership

515176321

Unavailable

4

RH HEADLAMP ASS'Y - Call your local BRP dealership | Includes 8 to 11

515176168

Unavailable

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

Plastic Insert

515176339

Unavailable

8

LH HEADLAMP ASS'Y - Call your local BRP dealership | Includes 8 to 11

515176169

Unavailable

9

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

10

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

11

Plastic Insert

515176339

Unavailable

12

Push Nut

389804300

$0.53

13

HEADLAMP BUSHING - Call your local BRP dealership

515176289

Unavailable

14

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

15

PHILLIPS SCREW #8 X 3 - Call your local BRP dealership

250000244

Unavailable

16

Cap

515176370

$4.69

17

Flat Washer M5, Stainless

234051600

$0.77

18

SPRING - Call your local BRP dealership

515176353

Unavailable

19

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

20

FACE NUT - Call your local BRP dealership

410112100

Unavailable

21

Switch Boot

570013700

$11.49

22

Brake Switch

515175653

$19.49

23

Plunger Cap

570151100

$9.85

24

WASHER - Call your local BRP dealership

503183500

Unavailable

25

Switch Nut

515145900

$12.12

26

Cap Ass'y

515178283

$38.99

27

Voltage Regulator

515175968

$238.49

28

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

29

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

30

Male Terminal

515175568

$9.12

31

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

32

Male Lock, 2 Circuits

278001672

$3.49

33

Sealing Cap

293000052

$3.19

34

Clip

270000141

$11.49

35

Avdel Rivet 3/16"

293150037

$0.56

36

Hexagonal Head Screw

210262050

$2.11

37

TRIM - Call your local BRP dealership

509000263

Unavailable

38

Was 271000110 Protection Trim

219704353

$15.99

39

Clip

414227300

$1.67

40

PLATE - Call your local BRP dealership

515176465

Unavailable

41

Hose Retainer

275500528

Unavailable

42

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

43

Torx Truss Screw M6 X 50

250000749

$3.17

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

45

HORN - Call your local BRP dealership

515176035

Unavailable

46

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

47

Silicone Sealant 51388, 300 ml

296000309

$36.99

48

Not Available As Spare Parts

XXX

Unavailable

50

Tie-Rap 180 mm

414115200

$0.11

50

Tie Wrap 368 mm

293750008

$1.04

50

Tie Wrap 142 mm

293750002

$1.25

50

Tie-Rap 173 mm

293750009

$1.04

53

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

Not Available As Spare Parts

XXX

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

Not Available As Spare Parts

XXX

Unavailable

58

SPEEDOMETER - Call your local BRP dealership | Includes 1a

515176477

Unavailable

59

LENS - Call your local BRP dealership

415129319

Unavailable

60

Gauge Ring This part replaces 515176242.

515179005

$13.99

61

TACHOMETER - Call your local BRP dealership

515176478

Unavailable

62

Lens

415129320

$24.49
