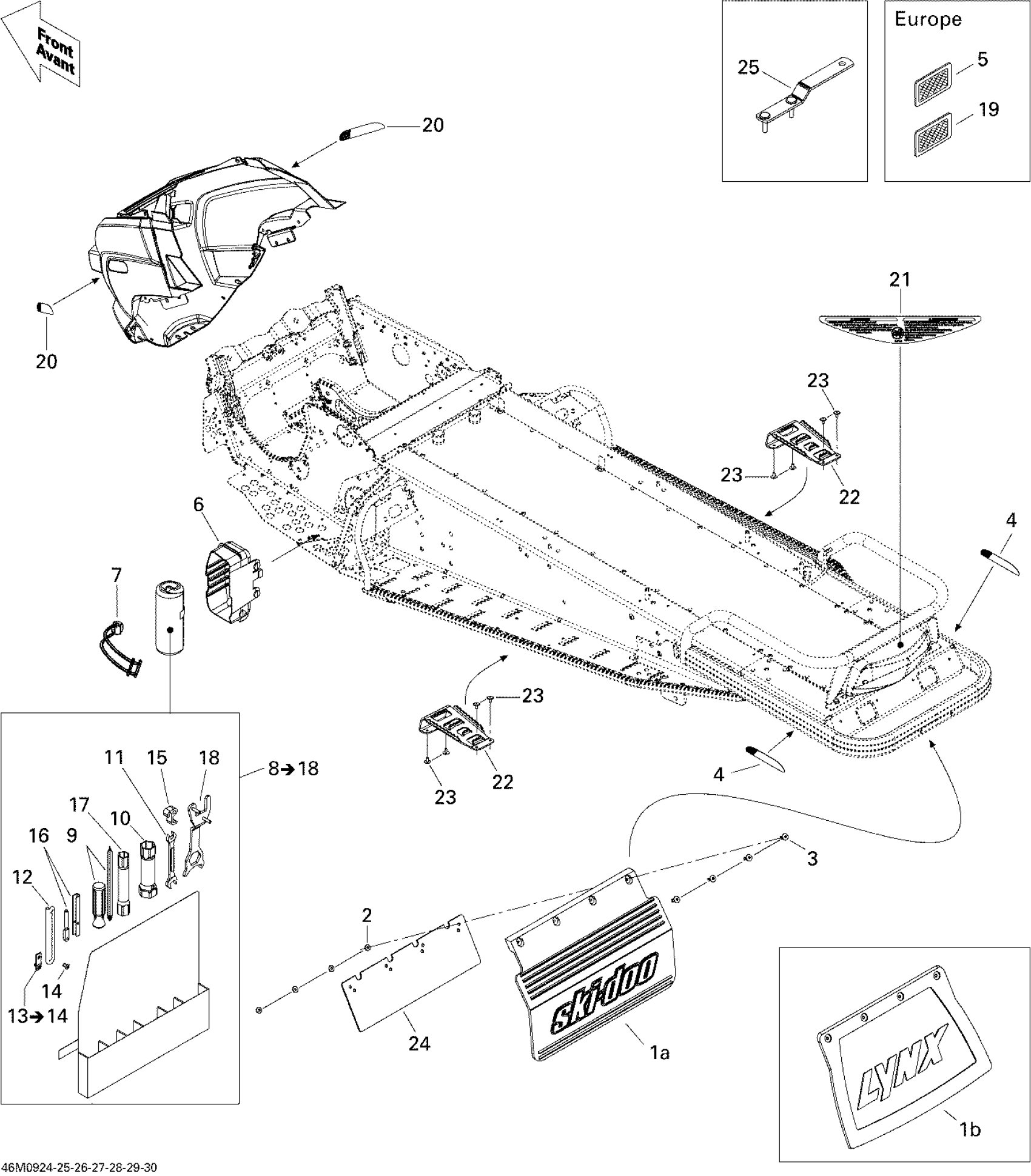

Ski-Doo Legend Touring, 2009 09- Utilities Diagram

#

Description
Price

1a

SNOW GUARD - Call your local BRP dealership

520000606

Unavailable

1b

Not Available As Spare Parts

XXX

Unavailable

2

Flat Washer

517225900

$0.18

3

Pop Rivet 3/16"

293150100

$1.09

4

REFLECTOR - Call your local BRP dealership

520000523

Unavailable

4

REFLECTOR - Call your local BRP dealership

520000525

Unavailable

5

Amber, Reflector

520000271

$19.99

6

TRUNK - Call your local BRP dealership

520000322

Unavailable

7

Latch

520000528

$7.69

8

TOOL KIT - Call your local BRP dealership | Includes 8 to 18

529000041

Unavailable

9

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

10

Socket Wrench 21/26 mm

529014800

Unavailable

11

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

12

Was 412500100 Rope-Starter

219704403

$158.99

13

ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14

529024400

Unavailable

14

Pop Rivet 3/16"

390402200

$0.35

15

Starter Grip

529000060

$14.15

16

Spacing Tool

529035501

$4.72

17

Not Available As Spare Part - Friction Washer

Unavailable

18

WRENCH - Call your local BRP dealership

520000721

Unavailable

19

White, Reflector

415037900

$22.99

20

REFLECTOR - Call your local BRP dealership

520000525

Unavailable

21

SECURITY LABEL - Call your local BRP dealership

520000611

Unavailable

22

Footrest

520000492

$19.99

23

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

24

Not Available As Spare Parts

XXX

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable
