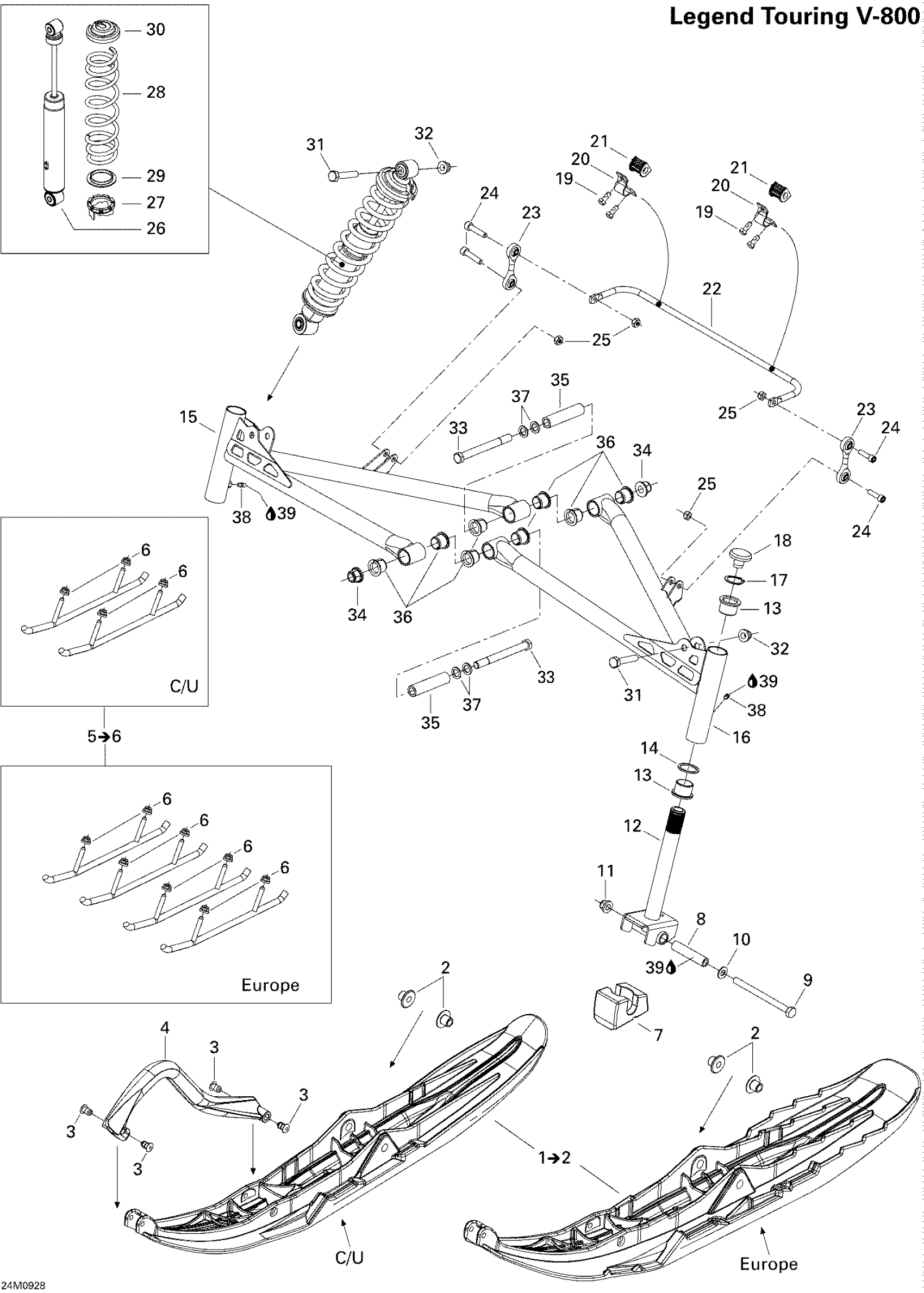

Ski-Doo Legend Touring, 2009 07- Front Suspension And Ski Diagram

#

Description
Price

1

RH Pilot Ski 5.7, Black

505072478

Unavailable

1

LH Pilot Ski 5.7, Black

505072479

Unavailable

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$179.99

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$179.99

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

Black, Handle

505070963

$35.99

5

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$92.99

5

Ens.Lisse Exten*Rev Pilot Extender | Includes 5 to 6 This part replaces 860200123.

860200145

$92.99

6

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

8

Spacer

506133300

$23.99

9

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

10

Flat Washer 10 mm

234001410

$1.26

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

SKI LEG - Call your local BRP dealership

505072001

Unavailable

13

Cushion

505070003

$9.23

14

WASHER - Call your local BRP dealership

505070004

Unavailable

15

RH LOWER ARM - Call your local BRP dealership

505071739

Unavailable

16

LH LOWER ARM - Call your local BRP dealership

505071740

Unavailable

17

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

18

Cap

572091300

$12.99

19

SCREW-HEX.CAP WITH NYLON PATCH - Call your local BRP dealership

250000281

Unavailable

20

CLAMP - Call your local BRP dealership

506095800

Unavailable

21

TORSION BUSHING - Call your local BRP dealership

505072225

Unavailable

22

STABILISATOR - Call your local BRP dealership

505072226

Unavailable

23

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

24

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

25

Hex. Elastic Stop Nut M8

232581414

$0.56

26

FRONT SHOCK - Call your local BRP dealership | Except Europe

505072258

Unavailable

26

FRONT SHOCK - Call your local BRP dealership

505072191

Unavailable

27

Adjustment Cam

505073625

$12.99

27

Adjustment Cam

505073625

$12.99

28

FULL MOON SPRING - Call your local BRP dealership

505071849

Unavailable

29

Spring Guide

503187500

$10.49

29

Spring Guide

503191872

$2.29

30

Spring Stopper

706200881

$12.99

31

Hex. Screw M10 X 55

207005544

$2.22

32

Hex. Flange Elastic Nut M10

233201414

$1.58

33

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

34

Hex. Flange Elastic Nut M12

233221414

$7.69

35

BUSHING - Call your local BRP dealership

505071366

Unavailable

36

BUSHING - Call your local BRP dealership

505072094

Unavailable

37

Washer

503189276

$3.28

38

Grease Fitting

408200700

$3.49

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
