Description

Price

1

AIR INTAKE SILENCER ASS'Y - Call your local BRP dealership | Includes 1 to 7

508000579

Unavailable

2

AIR INTAKE ADAPTOR - Call your local BRP dealership

508000491

Unavailable

3

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

4

Warning Label

516003292

Unavailable

5

Air Filter

508000508

Unavailable

6

Grommet | Europe

707800347

$10.49

7

Elbow Fitting

414523600

$4.86

8

Panel Latch

517302448

$14.99

9

Pop Rivet 3/16”

293150108

$1.19

10

CRANKASE VENT HOSE - Call your local BRP dealership

508000578

Unavailable

11

Insulating Tube | Engine 1200 4-TEC

508000582

$15.99

12

Tie Rap

509000165

$2.11

13

Norma Clamp

293650110

$4.54

14a

Support | Except Europe

508000584

Unavailable

14b

SUPPORT - Call your local BRP dealership | Eruope

509000495

Unavailable

15

Pop Rivet 3/16"

390402200

$0.35

16

Hose Retainer

275500528

Unavailable

17

Gemi Clamp

508000346

$10.33

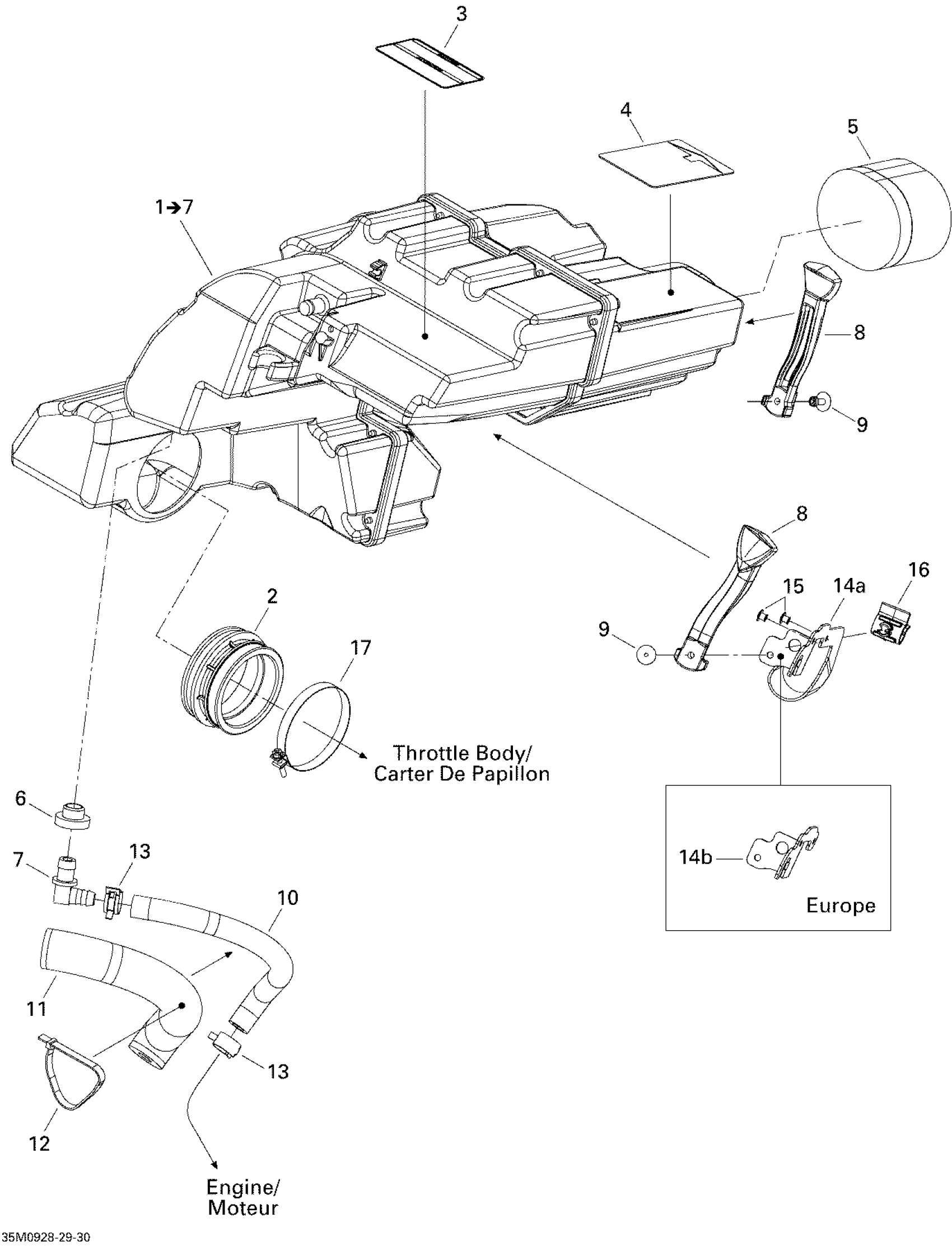

Ski-Doo Legend Touring, 2009 02- Air Intake System Diagram

AIR INTAKE SILENCER ASS'Y - Call your local BRP dealership | Includes 1 to 7

AIR INTAKE ADAPTOR - Call your local BRP dealership

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

Warning Label

Air Filter

Grommet | Europe

Elbow Fitting

Panel Latch

Pop Rivet 3/16”

CRANKASE VENT HOSE - Call your local BRP dealership

Insulating Tube | Engine 1200 4-TEC

Tie Rap

Norma Clamp

Support | Except Europe

SUPPORT - Call your local BRP dealership | Eruope

Pop Rivet 3/16"

Hose Retainer

Gemi Clamp
