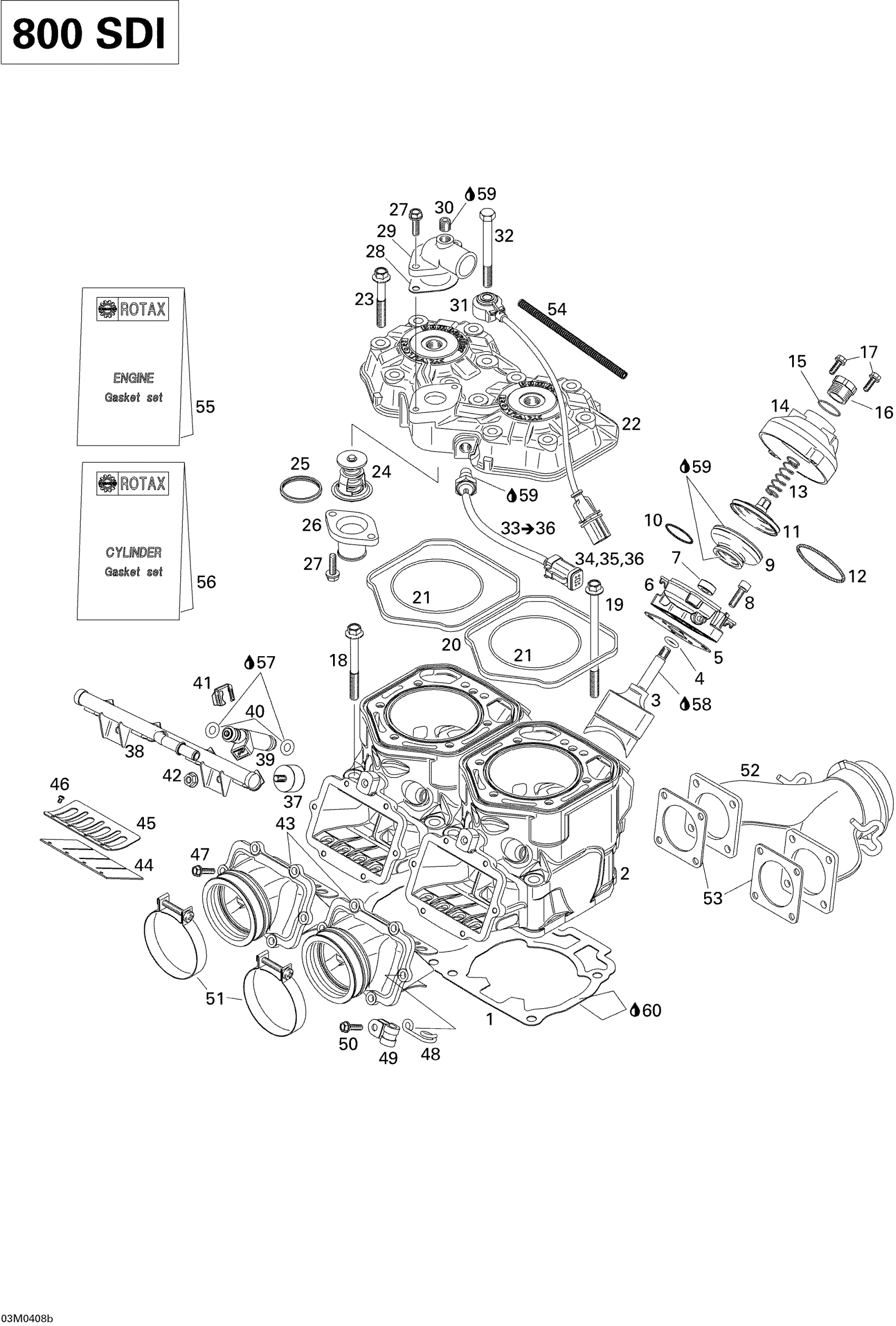

Ski-Doo Legend 800 SDI, 2004 01- Cylinder, Exhaust Manifold, Reed Valve (800) Diagram

#

Description
Price

1

GASKET 0.5 - Call your local BRP dealership

420931838

Unavailable

GASKET 0.6 - Call your local BRP dealership

420931837

Unavailable

GASKET 0.7 - Call your local BRP dealership

420931964

Unavailable

GASKET 0.8 - Call your local BRP dealership

420931839

Unavailable

2

Cylinder-Nicasil

420923813

Unavailable

3

Exhaust Valve

420854660

Unavailable

4

O-Ring

420430110

$4.44

5

Gasket

420931542

$7.37

6

VALVE HOUSING - Call your local BRP dealership

420854454

Unavailable

7

Oil Seal | Included in gasket kit

420950732

$9.27

8

Socket Head Screw M6 X 25

205062544

$1.15

9

Bellows

420260729

$38.99

10

Hose Spring This part replaces 420838253.

420838255

$7.41

11

Exhaust Valve This part replaces 290253257.

420854449

$35.99

12

Hose Spring This part replaces 420239048.

420939281

$7.41

13

SPRING - Call your local BRP dealership

420239941

$6.99

14

Valve Cover This part replaces 420911558.

420911559

$29.49

15

O-Ring

420430220

$8.26

16

Adjuster Screw

420241221

$14.22

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

18

Hex. Collar Screw

420640524

$13.16

19

Hex. Collar Screw

420640534

$14.28

20

Rubber Ring

420931590

$6.19

21

O-Ring | Included in gasket kit

420931410

$3.39

22

Cylinder Head Cover, Silver

420923825

Unavailable

23

Hex. Screw M8 X 56.5

420941627

$8.57

24

Thermostat This part replaces 414834100.

420922519

$63.99

25

Sealing Ring

420931272

$15.89

26

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

27

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

28

Gasket

420850338

$11.60

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

30

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

31

Noise Sensor

270000484

$82.99

32

HEX. SCREW M8 X 80 - Call your local BRP dealership

420941221

Unavailable

33

Temperature Sensor This part replaces 515176043.

515177835

$92.99

34

Male Connector, 4 Circuits | CE

278000739

$19.49

35

Female Terminal

278000632

$2.09

36

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

37

STOPPER - Call your local BRP dealership

420960065

Unavailable

38

Fuel Rail Ass’Y

420874460

Unavailable

39

Fuel Injectors

420874485

$238.49

40

O-Ring

420631220

$14.28

41

CLIP - Call your local BRP dealership

420851800

Unavailable

42

NUT - Call your local BRP dealership

420442172

Unavailable

43

CARBURETOR SOCKET - Call your local BRP dealership

420867230

Unavailable

44

Reed Pedal

420924680

$38.99

45

Reed Pedal Stop

420924695

$15.28

46

Phillips Screw M3 X 5

420941215

$1.69

47

Taptite Screw M5 X 16

420941928

Unavailable

48

Bracket

420853640

Unavailable

49

Open Clamp

414176000

$1.99

50

Tapping Screw M5 X 22

420841550

$1.69

51

CLAMP - Call your local BRP dealership

420851810

Unavailable

52

Exhaust Manifold | 800 SDI

420673245

Unavailable

53

Gasket

420931850

$12.17

54

TUBE - Call your local BRP dealership

420460010

Unavailable

55

Gasket Engine Kit

420888741

$285.99

56

CYLINDER GASKET - Call your local BRP dealership

420888745

$137.49

57

Dow Corning 111, 150 g

413707000

$59.99

58

Not Available As Spare Part - Friction Washer

Unavailable

59

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

60

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
