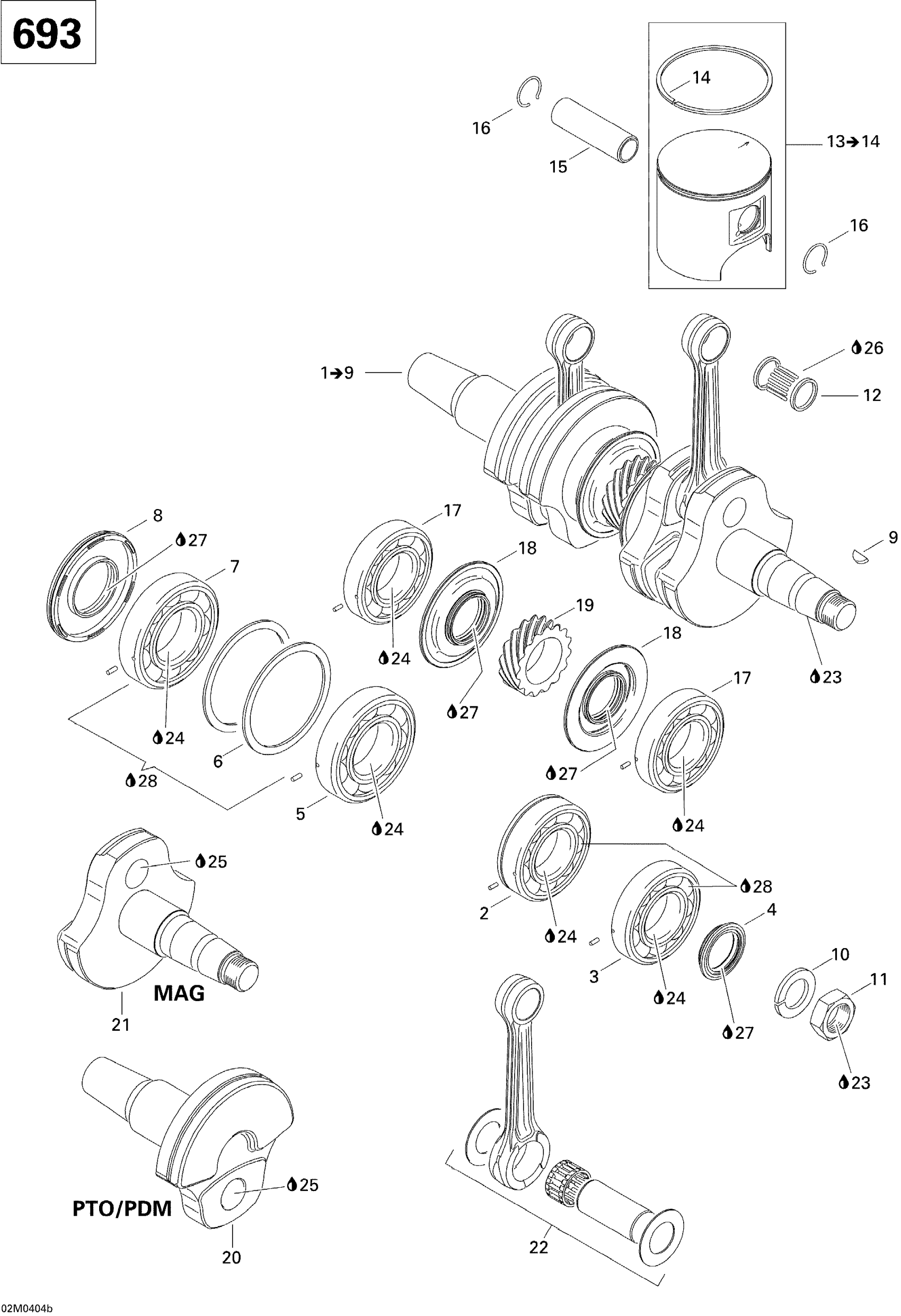

Ski-Doo Legend 700, 2004 01- Crankshaft And Pistons (693) Diagram

#

Description
Price

1

REBUILD-CRANKSHAFT 693/593HO - Call your local BRP dealership This part replaces 420889097.

421000609

Unavailable

1

REBUILD-CRANKSHAFT 693/593HO - Call your local BRP dealership This part replaces 420889097.

421000609

Unavailable

2

Ball Bearing Sealed, 6207

420832673

$101.49

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420931795

$17.63

5

Ball Bearing | With drive pin

420832602

$104.99

6

Washer

420926190

$11.63

7

Ball Bearing 6208 | With drive pin

420832600

$79.49

8

Oil Seal | Included in gasket kit

420931284

$23.49

9

Woodruff Key

420246015

$3.17

10

Lock Washer, 22 mm

420945759

$1.90

11

Hex. Nut, M22 X 1.5

420842239

$17.53

12

Needle Bearing

420832445

$27.49

13

Piston Ass’y, 1 Ring 77.88 mm | INCLUDES ITEMS 13 TO 14

420888298

Unavailable

14

SEMI-TRAPEZ RING - Call your local BRP dealership

420815226

Unavailable

15

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

16

Piston Circlip

420845106

$3.93

17

Ball Bearing 6207 | With drive pin

420832575

$52.99

18

Oil Seal

420931455

$35.99

19

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

20

CRANKSHAFT PTO - Call your local BRP dealership

420818709

Unavailable

21

CRANKSHAFT, MAG SIDE - Call your local BRP dealership

420818739

Unavailable

22

Rod Repair Kit, Mag Side

420889093

Unavailable

Rod Repair Kit, PTO Side

420889094

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$45.99

26

Dow Corning 111, 150 g

413707000

$59.99

27

Petamo Grease, GHY133N, 400 g

420899271

$67.99

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
