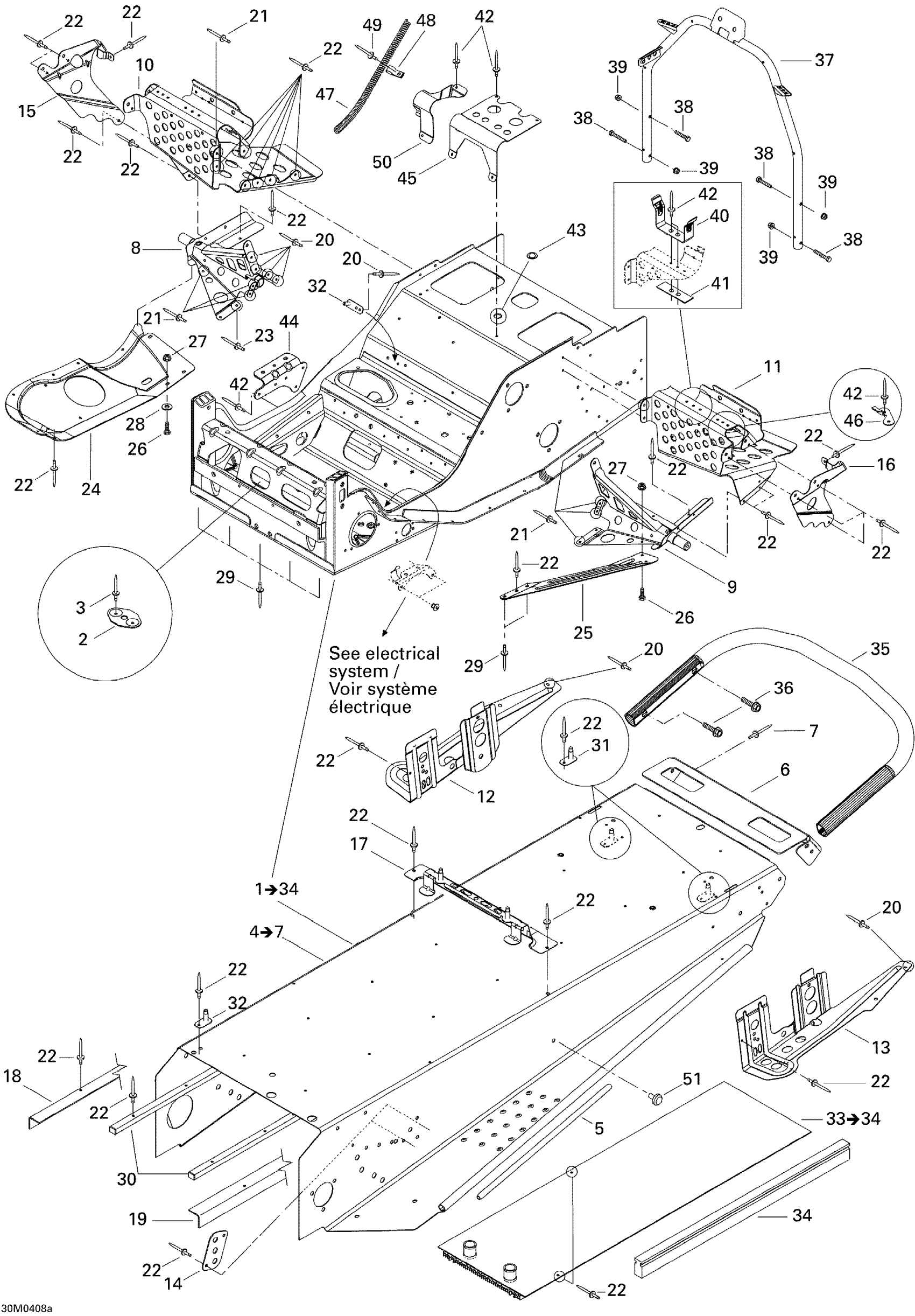

Ski-Doo Legend 600 HO SDI, 2004 09- Frame Diagram

#

Description
Price

1

Frame | 700 / INCLUDES ITEMS 1 TO 34

415128761

Unavailable

2

Plate Bracket

518201307

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

Forming Frame | Includes 2 to 5

415128763

Unavailable

5

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

6

REAR CAP - Call your local BRP dealership

518321303

Unavailable

7

Pop Rivet 3/16"

390402200

$0.35

8

RH Footrest Support

518320506

Unavailable

9

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

10

RH Footrest

518323563

Unavailable

11

LH FOOTREST - Call your local BRP dealership

518323564

Unavailable

12

RH SLIDE BRACKET - Call your local BRP dealership

518323315

Unavailable

13

LH SLIDE BRACKET - Call your local BRP dealership

518323318

Unavailable

14

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

15

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

16

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

17

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

18

RH Frame Reinforcement

518323193

Unavailable

19

LH Frame Reinforcement

518323195

Unavailable

20

Avex Rivet

390909200

$0.30

21

Avex Rivet

390909100

$0.30

22

Pop Rivet 3/16"

390402200

$0.35

23

Pop Rivet 3/16"

390402300

$0.75

24

RH BOTTOM PAN PLATE - Call your local BRP dealership

518322636

Unavailable

25

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

26

Hex. Screw M5 X 20

207152044

$0.90

27

Hex. Flange Elastic Nut M5

233251414

$1.04

28

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

29

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

30

Frame Protector

518321543

Unavailable

31

Seat Bracket

518323321

Unavailable

32

Double Bracket

518323173

Unavailable

33

REAR RADIATOR - Call your local BRP dealership | Includes 30 to 31

518323130

Unavailable

34

Radiator Protector

518321655

Unavailable

35

REAR BUMPER - Call your local BRP dealership

518322708

Unavailable

36

Hex. Flange Screw M8 X 20

207682044

$1.15

37

Handle Support

518322755

Unavailable

38

Hex. Flange Screw M6 X 35

207663544

$0.90

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Belt Guard Bracket

518202100

$17.49

41

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

42

Pop Rivet 3/16"

390402200

$0.35

43

CAP - Call your local BRP dealership

414859400

Unavailable

44

Muffler Support

518322635

Unavailable

45

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

46

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

47

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

48

Open Clamp

518321570

$7.69

49

Pop Rivet 3/16"

293150103

$0.55

50

Hose Support

518322699

Unavailable

51

Panel Fastener

518321954

$7.69
