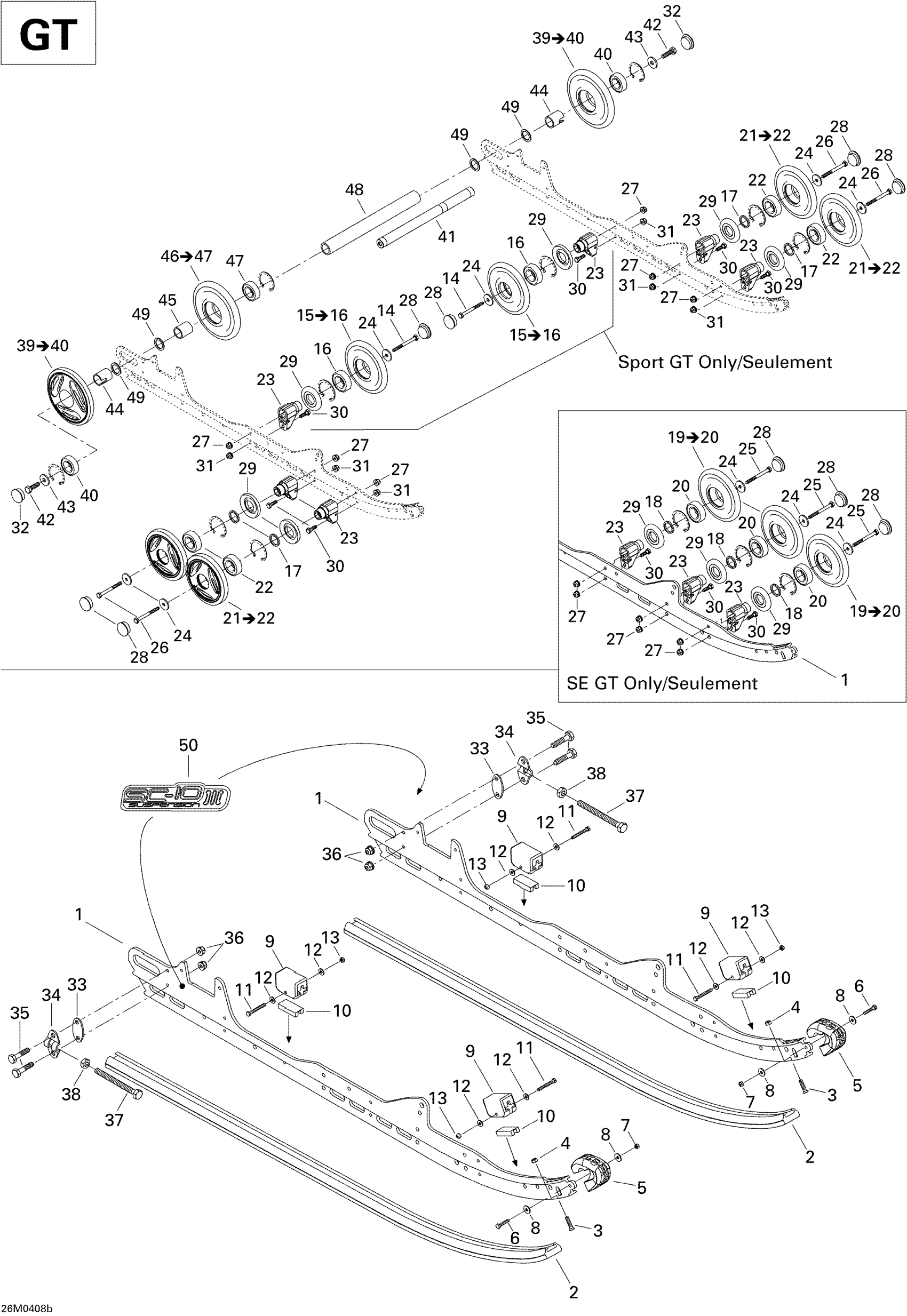

Ski-Doo Legend 600 HO SDI, 2004 Rear Suspension (GT) Diagram

#

Description
Price

1

Runner | Sport

503190253

Unavailable

1

Runner | SE

503190266

Unavailable

2

RUNNER SHOE - Call your local BRP dealership

503190257

Unavailable

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.82

8

Washer | DS 650 X

391301600

$0.46

9

Rubber Stopper

570063000

Unavailable

10

Reinforcement Stopper

572084800

$5.09

11

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

12

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

13

Elastic Stop Nut M5

232551414

$0.82

14

Hex. Screw M8 X 80

207088044

$1.54

15

Wheel 139 mm Ass'y

503190798

$31.31

16

Ball Bearing

293350115

$10.82

17

WASHER - Call your local BRP dealership

503173700

Unavailable

18

WASHER - Call your local BRP dealership

503173700

Unavailable

19

Wheel 139 Ass’Y, Full Moon | Includes items 18 to 19

503190211

Unavailable

20

Ball Bearing

293350115

$10.82

21

Wheel 139 Ass’Y, Full Moon | Includes items 18 to 19

503190211

Unavailable

22

Ball Bearing

293350115

$10.82

23

SUPPORT - Call your local BRP dealership

503190389

Unavailable

24

Washer

503183100

$2.99

25

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

26

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

27

Hex. Flange Elastic Nut M8

233281414

$1.31

28

Wheel Cap

570063600

$3.18

29

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

30

Hex. Screw M8 X 25

207182544

$0.85

31

Hex. Flange Elastic Nut M8

233281414

$1.31

32

Wheel Cap

570063600

$3.18

33

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

34

Tensioner

503155300

Unavailable

35

Hex. Screw M6 X 30

207063044

$1.12

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

38

Elastic Locking Nut M10 X 1.5

233601416

$1.63

39

Wheel 180 Ass’Y, Full Moon | Includes items 33 to 34

503190254

Unavailable

40

Ball Bearing

293350115

$10.82

41

Rear Axle

503167900

$125.34

42

Hex. Screw With Nylon

250000019

$1.63

43

Washer

503183300

$5.51

44

Outer Spacer

503189809

$14.90

45

Inner Spacer

503182900

$9.88

46

Wheel 180

503190799

$48.48

47

Ball Bearing

293350115

$10.82

48

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

49

Washer

503180400

$3.27

50

Suspension Decal

516001248

Unavailable
