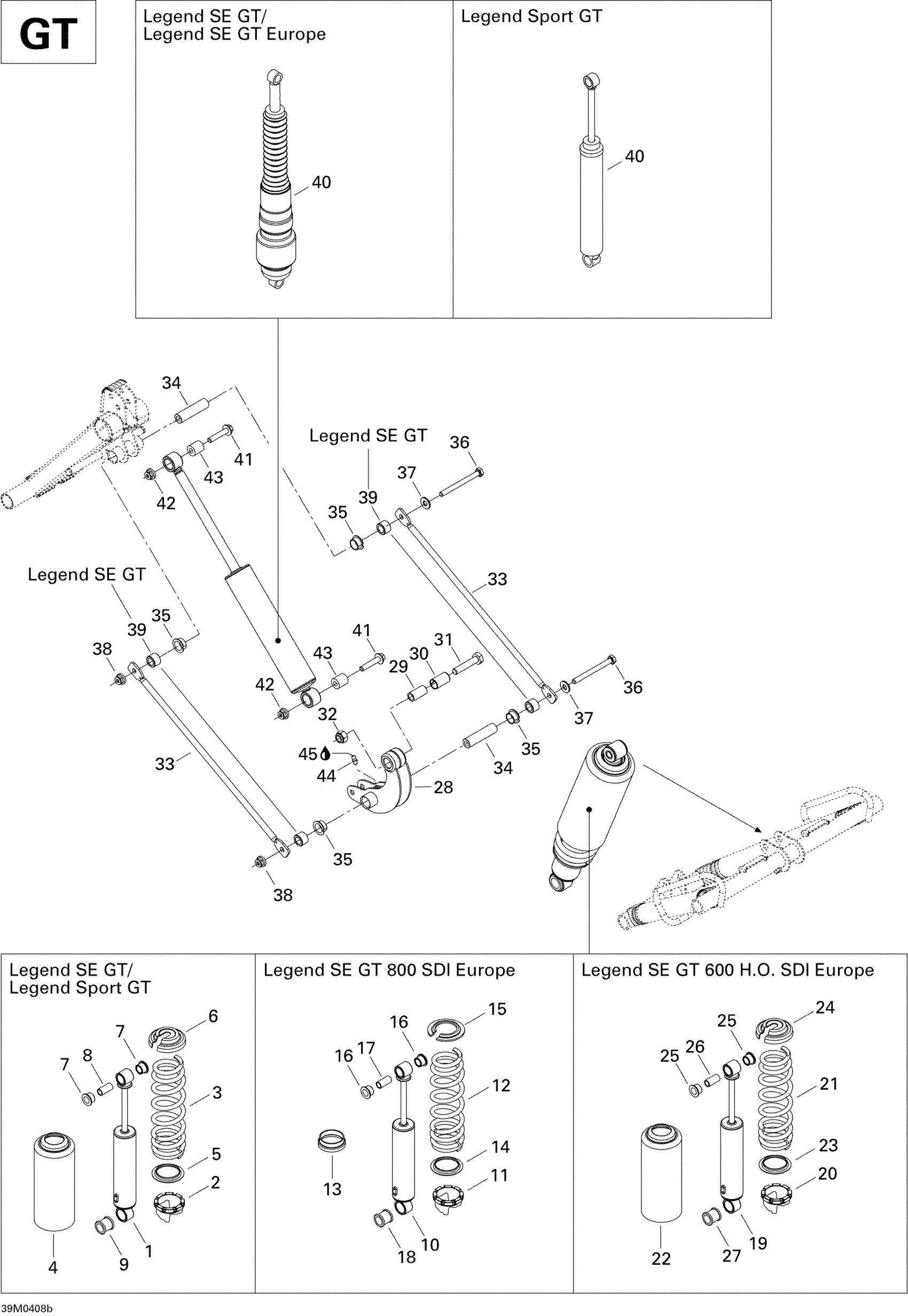

Ski-Doo Legend 600 HO SDI, 2004 Rear Shocks GT Diagram

#

Description
Price

1

Center Shock

503190026

Unavailable

2

Adjustment Cam

505073625

$12.18

3

SPRING - Call your local BRP dealership

503189659

Unavailable

4

Protector

503193663

$35.35

5

Spring Guide

503191872

$2.18

6

Spring Stopper

706200881

$10.30

7

Urethane Bushing

503189117

$6.88

8

Bushing | Includes 240d to 240d1

503189282

$4.18

9

Bushing

503189271

$10.46

10

Center Shock | Se Europe

503190452

Unavailable

11

Adjustment Cam

505073625

$12.18

12

SPRING - Call your local BRP dealership

503189659

Unavailable

13

PROTECTOR - Call your local BRP dealership

503190252

Unavailable

14

Spring Guide

503191872

$2.18

15

Spring Stopper

503189912

$16.89

16

Urethane Bushing

503189117

$6.88

17

Bushing | Includes 240d to 240d1

503189282

$4.18

18

Bushing

503189271

$10.46

19

Center Shock

503190026

Unavailable

20

Adjustment Cam

505073625

$12.18

21

SPRING - Call your local BRP dealership | Except Europe

503190546

Unavailable

22

Protector

503193663

$35.35

23

Spring Guide

503191872

$2.18

24

Spring Stopper

706200881

$10.30

25

Urethane Bushing

503189117

$6.88

26

Bushing | Includes 240d to 240d1

503189282

$4.18

27

Bushing

503189271

$10.46

28

Rocker

503189845

Unavailable

29

Rocker Axle

503189388

Unavailable

30

CUSHION - Call your local BRP dealership

503189626

Unavailable

31

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

32

Elastic Locking Nut M10 X 1.5

233601416

$1.68

33

THROTTLE ROD - Call your local BRP dealership

503190111

Unavailable

34

AXLE ROD - Call your local BRP dealership

503189815

Unavailable

34

Bar Axle (Short)

503190113

$37.66

35

Swivel Bushing

503191555

$5.71

36

Hex. Screw M8 X 90

207089044

$2.82

36

Hex. Screw M8 X 130

230083044

$7.23

37

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

38

Hex. Flange Elastic Nut M8

233281414

$1.14

39

Spacer

503190114

$15.35

40

Rear Shock | GTX Sport Europe

503190005

Unavailable

40

Rear Shock | GTX Sport Europe

503190005

Unavailable

40

Rear Shock | Sport

503190224

Unavailable

41

Hex. Flange Screw M8 X 40

207684044

$1.25

42

Hex. Flange Elastic Nut M8

233281414

$1.14

43

Bushing

414936000

$11.55

44

Grease Fitting

408200700

$2.80

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
