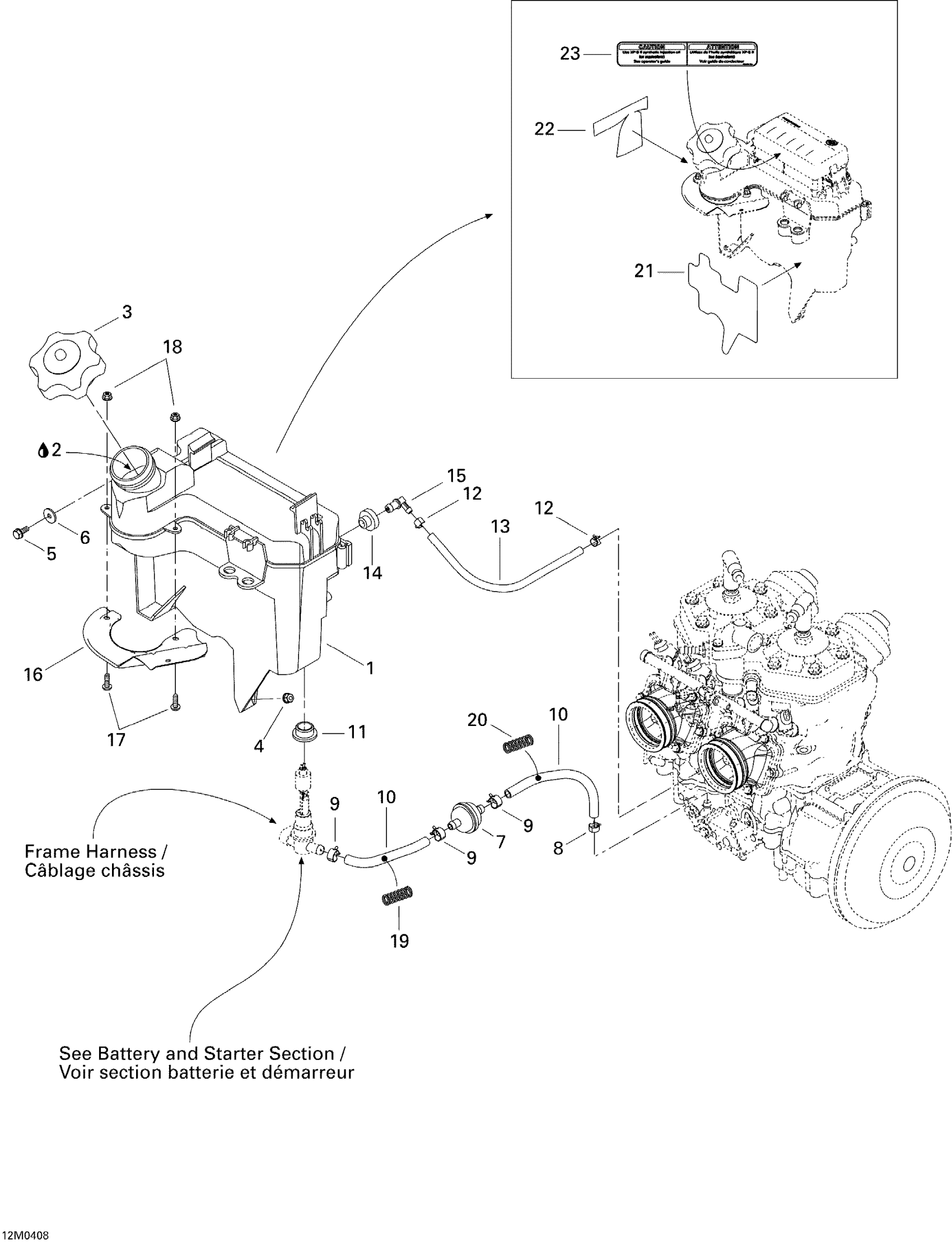

Ski-Doo Legend 600 HO SDI, 2004 02- Oil System Diagram

#

Description
Price

1

Oil Tank

519000049

Unavailable

2

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

3

CAP - Call your local BRP dealership

519000042

Unavailable

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Hex. Flange Screw M6 X 12

210261250

$1.90

6

Lock Washer Serrated M6

250200041

$1.15

7

Filter

414536500

$4.02

8

Spring Clamp

414420700

$0.72

9

Spring Clamp

414415200

$0.88

10

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

11

Insulating Ring

570023000

$5.61

12

Spring Clamp

414554800

$0.88

13

Polyurethane Hose 10000Mm Long

219704410

$56.99

14

Grommet

709200285

$9.69

15

Male Connector

414580700

$4.12

16

Deflector

519000043

Unavailable

17

Hex. Screw M5 X 16

208651641

Unavailable

18

Hex. Flange Elastic Nut M5

233251414

$1.04

19

Spring

519000062

Unavailable

20

SPRING - Call your local BRP dealership

519000063

Unavailable

21

REFLECTIVE SHEET - Call your local BRP dealership

519000059

Unavailable

22

REFLECTIVE SHEET - Call your local BRP dealership

519000051

Unavailable

23

Warning Decal

516001794

Unavailable
