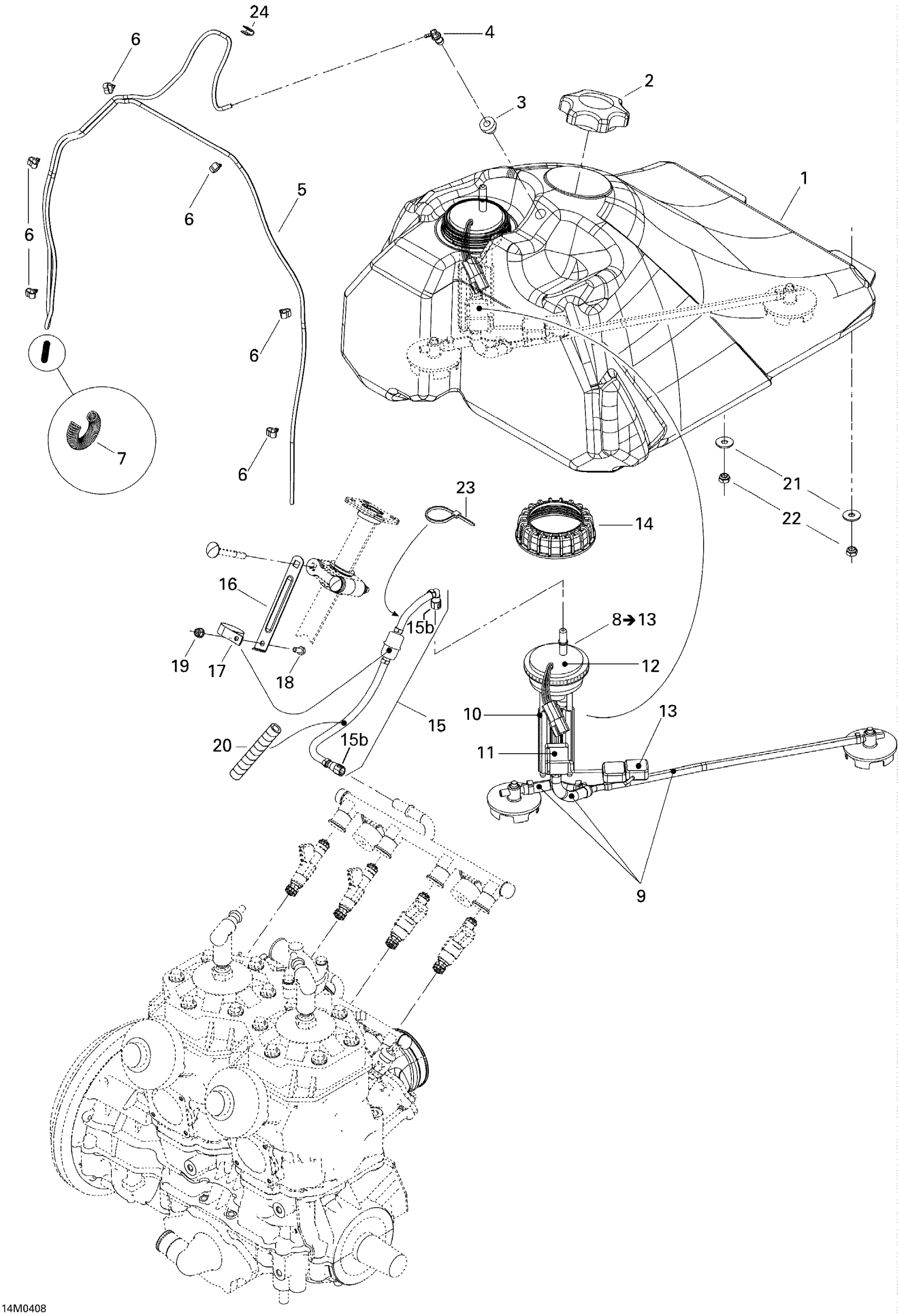

Ski-Doo Legend 600 HO SDI, 2004 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033005

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

Fuel Tank Cap 91 Octane

513033722

$22.49

Fuel Tank Cap

513033025

$24.49

3

Grommet

513032908

$10.49

4

Male Connector

414814100

$2.22

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Fuel Pump Module | Includes 7 to 12

513033101

Unavailable

9

Fuel Hose Kit

861302300

Unavailable

10

Pump Kit

861302000

Unavailable

11

Resistor Card Kit

861301800

Unavailable

12

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

13

Float Lever Kit

861301900

Unavailable

14

Nut, Fuel Pump Module

513033040

$29.99

15

Fuel Filter

513033106

Unavailable

15b

Locking Clip

513033135

$5.89

16

Filter Support

513033057

Unavailable

17

Open Clamp

513033047

$5.19

18

Hex. Screw M6 X 16

207161644

$0.74

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Tubing 16 Mm 1000Mm Long

219704408

$7.49

21

Flat Washer 8 mm

234082410

$1.47

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

Tie Wrap 368 mm

293750008

$1.04

24

Clip

414479100

$1.90
