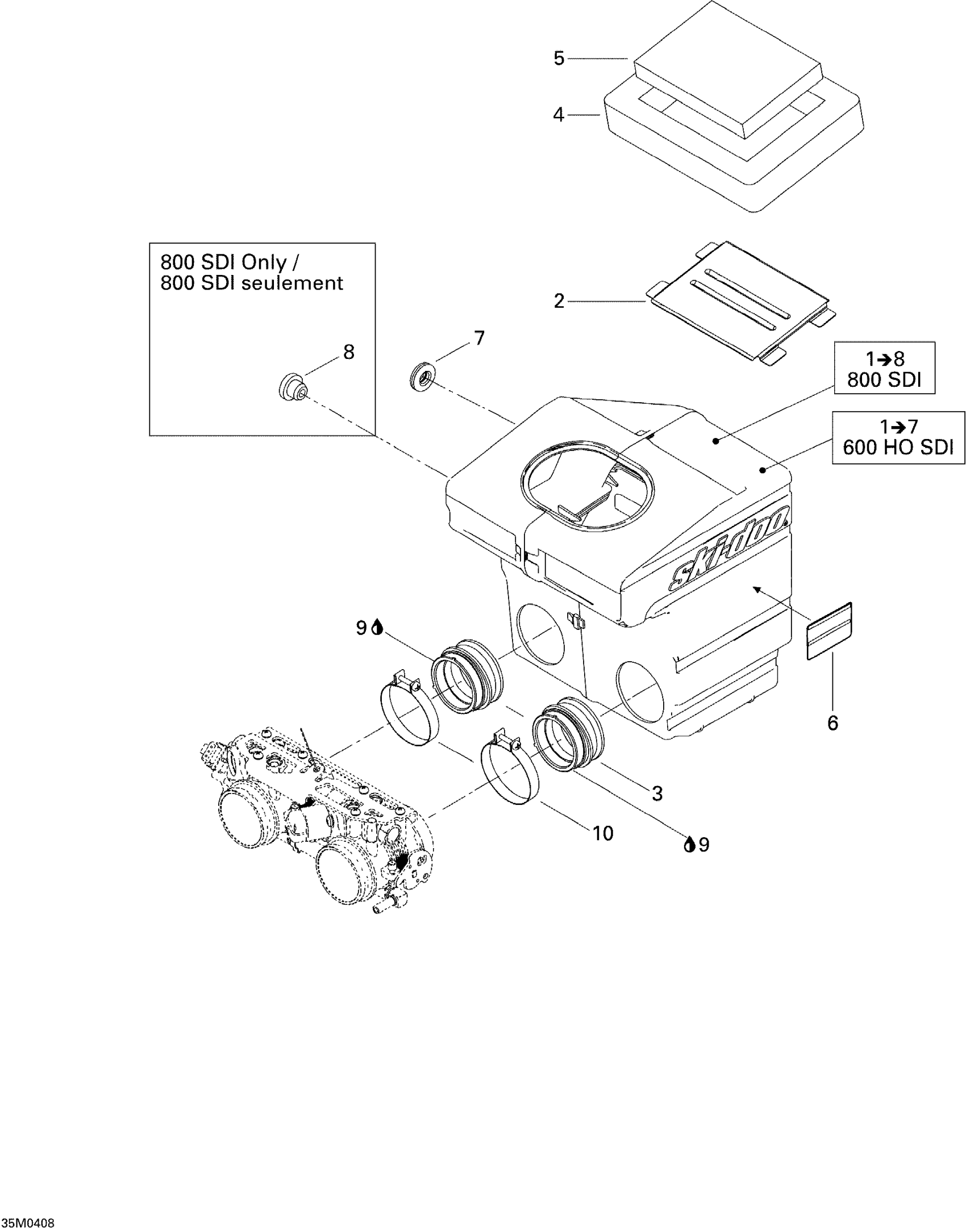

Ski-Doo Legend 600 HO SDI, 2004 02- Air Intake System Diagram

#

Description
Price

1

Air Intake Ass’Y | 800 SDI / INCLUDES 1 TO 8

508000202

Unavailable

1

Air Intake Ass’Y | 600 HO SDI / INCLUDES 1 TO 7

508000345

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor, 40 mm

508000092

Unavailable

4

Lower Foam

508000099

Unavailable

5

Air Filter

508000154

$23.49

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

GROMMET - Call your local BRP dealership

570065500

Unavailable

8

Grommet

513032908

$10.49

9

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable

10

Gemi Clamp

508000346

$10.33
