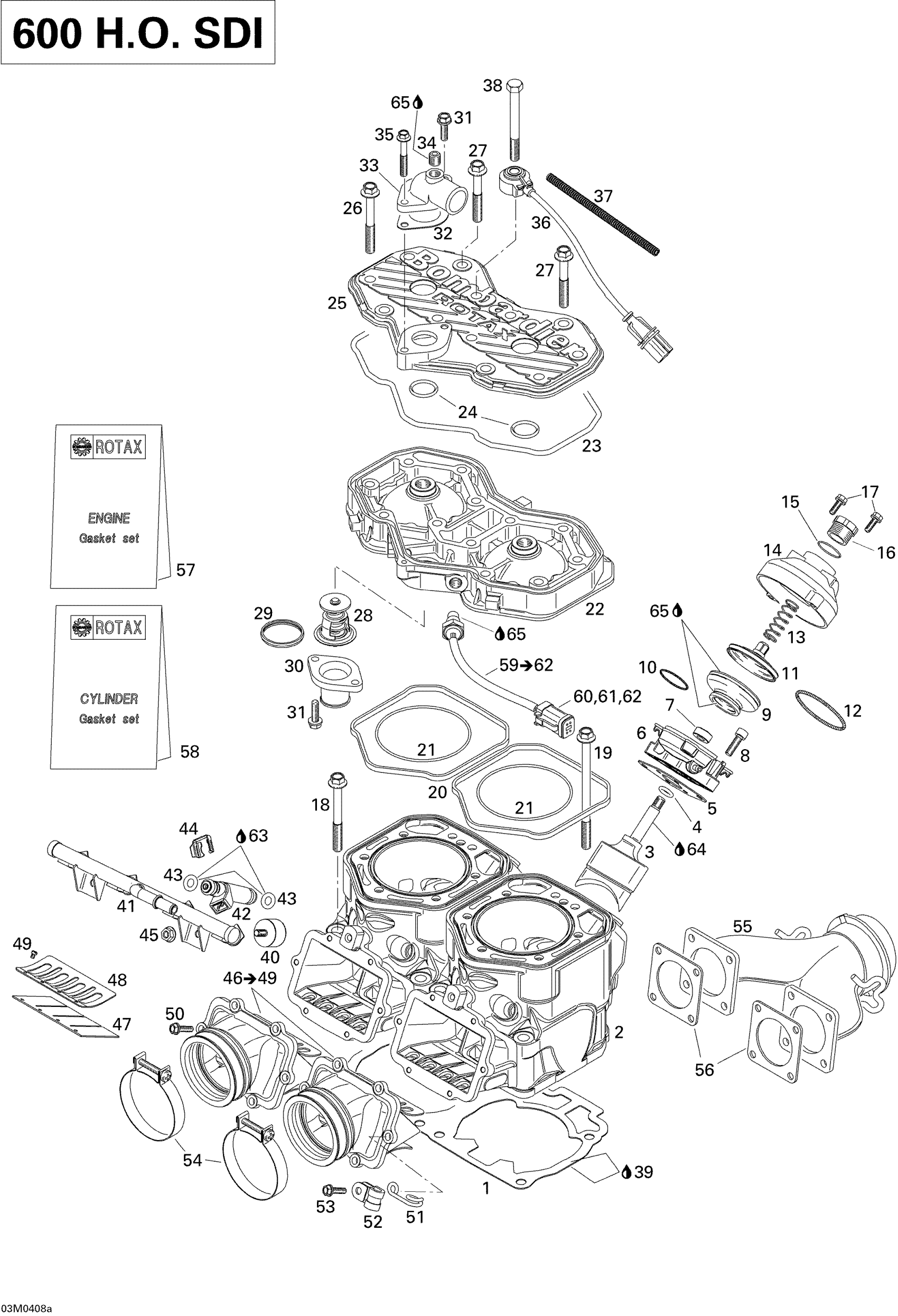

Ski-Doo Legend 600 HO SDI, 2004 01- Cylinder, Exhaust Manifold, Reed Valve (600) Diagram

#

Description
Price

1

Gasket 0.5 mm

420431160

$17.53

Gasket 0.6 mm

420431161

$23.49

Gasket 0.7 mm

420431162

$23.49

Double Gasket 0.8 mm

420431163

$23.49

2

CYLINDER H.O. SDI - Call your local BRP dealership

420613944

Unavailable

3

Exhaust Valve

420854650

$67.99

4

O-Ring

420430110

$4.44

5

Gasket

420931542

$7.37

6

VALVE HOUSING - Call your local BRP dealership

420854454

Unavailable

7

Oil Seal | Included in gasket kit

420950732

$9.27

8

Socket Head Screw M6 X 25

205062544

$1.15

9

Bellows

420260729

$38.99

10

Hose Spring This part replaces 420838253.

420838255

$7.41

11

Exhaust Valve This part replaces 290253257.

420854449

$35.99

12

Hose Spring This part replaces 420239048.

420939281

$7.41

13

SPRING - Call your local BRP dealership

420239942

Unavailable

14

Valve Cover This part replaces 420911558.

420911559

$29.49

15

O-Ring

420430220

$8.26

16

Adjuster Screw

420241221

$14.22

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

18

Hex. Collar Screw

420640524

$13.16

19

Hex. Collar Screw

420640534

$14.28

20

Rubber Ring

420931590

$6.19

21

O-Ring This part replaces 420850540.

293300026

$3.39

22

Cylinder Head

420613702

Unavailable

23

O-Ring This part replaces 290950320.

420950320

$14.28

24

O-Ring

420430782

$5.39

25

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

26

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

27

Hex. Screw M8 X 56.5

420941627

$8.57

28

Thermostat This part replaces 414834100.

420922519

$63.99

29

Sealing Ring

420931272

$15.89

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

31

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

32

Gasket

420850338

$11.60

33

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

34

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

35

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

36

Noise Sensor

270000484

$82.99

37

TUBE - Call your local BRP dealership

420460010

Unavailable

38

HEX. SCREW M8 X 80 - Call your local BRP dealership

420941221

Unavailable

39

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

40

STOPPER - Call your local BRP dealership

420960065

Unavailable

41

RAIL FUEL - Call your local BRP dealership

420874490

Unavailable

42

Fuel Injectors

420874485

$238.49

43

O-Ring

420631220

$14.28

44

CLIP - Call your local BRP dealership

420851800

Unavailable

45

NUT - Call your local BRP dealership

420442172

Unavailable

46

SOCKET CARBURETOR - Call your local BRP dealership | Includes 47 to 50

420867240

Unavailable

47

Reed Pedal

420924680

$38.99

48

Reed Pedal Stop

420924695

$15.28

49

Phillips Screw M3 X 5

420941215

$1.69

50

Taptite Screw M5 X 16

420941928

Unavailable

51

Bracket

420262800

Unavailable

52

Cable Clamp

517853412

Unavailable

53

Tapping Screw M5 X 22

420841550

$1.69

54

Clamp

420851065

$14.28

55

Exhaust Manifold

420973592

Unavailable

56

Gasket

420850552

$8.85

57

Gasket Set, Engine

420889931

$253.99

58

Gasket Set, Cylinder

420889936

$174.99

59

Temperature Sensor This part replaces 515176043.

515177835

$92.99

60

Male Connector, 4 Circuits | CE

278000739

$19.49

61

Female Terminal

278000632

$2.09

62

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

63

Dow Corning 111, 150 g

413707000

$59.99

64

Not Available As Spare Part - Friction Washer

Unavailable

65

Sealing Compound Loctite 5366 310Ml

420297907

$54.99
