Description

Price

1

Crankshaft Ass'y | Includes items 1 to 8

420889098

Unavailable

Crankshaft Ass'Y | Includes items 1 to 8 / 800 SDI

420684650

Unavailable

2

Crankshaft Ass'y | Includes 1 to 8

420890953

$1.00

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Oil Seal

420931795

$17.63

5

Ball Bearing | With drive pin

420832602

$104.99

6

Washer

420926190

$11.63

7

Ball Bearing | With drive pin

420832702

$89.99

8

Oil Seal | Included in gasket kit

420931284

$23.49

9

Lock Washer, 22 mm

420945759

$1.90

10

Hex. Nut, M22 X 1.5

420842239

$17.53

11

Woodruff Key

420246015

$3.17

12

Needle Bearing

420832445

$27.49

13

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

420892388

$228.99

Piston 81 | Includes 13 to 14 This part replaces 420889456.

420889457

$228.99

14

Semi-Trapez Ring

420815295

$63.99

SEMI-TRAPEZ RING - Call your local BRP dealership

420815360

Unavailable

15

Piston Pin

420916412

$30.99

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

16

Piston Circlip

420845106

$3.93

17

Ball Bearing 6207 | With drive pin

420832575

$52.99

18

Oil Seal

420931455

$35.99

19

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

20

CRANKSHAFT PTO - Call your local BRP dealership

420818709

Unavailable

CRANKSHAFT (PTO) - Call your local BRP dealership This part replaces 420819032.

420819030

Unavailable

21

Crankshaft, Mag Side

420819230

Unavailable

CRANKSHAFT (MAG SIDE) - Call your local BRP dealership | 800 SDI

420819067

Unavailable

22

KIT-ROD REPAIR MAG-SIDE - Call your local BRP dealership This part replaces 420684653.

420684080

Unavailable

KIT-ROD REPAIR PTO-SIDE - Call your local BRP dealership This part replaces 420684654.

420684081

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$45.99

26

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

27

Petamo Grease, GHY133N, 400 g

420899271

$67.99

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

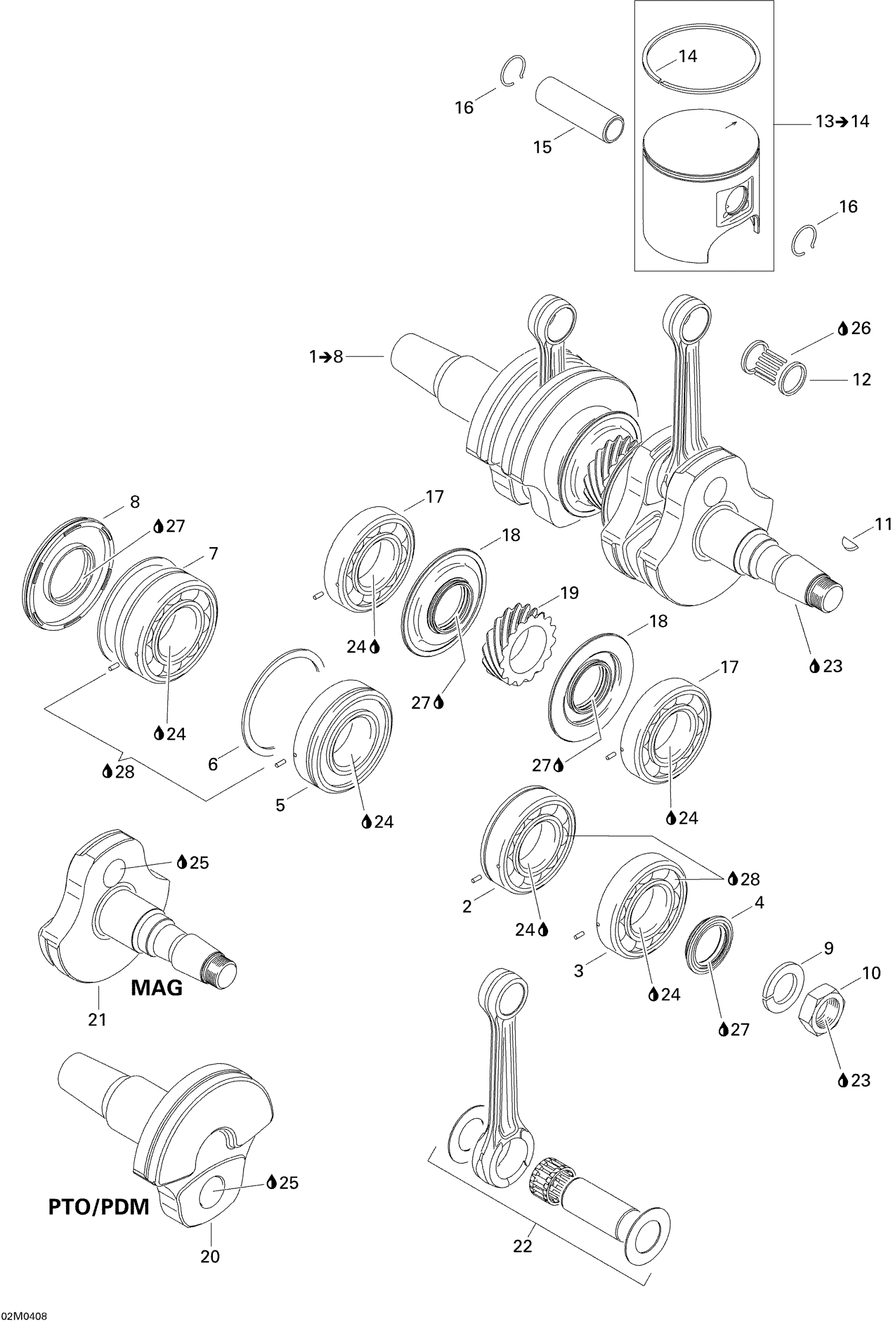

Ski-Doo Legend 600 HO SDI, 2004 01- Crankshaft And Pistons Diagram

Crankshaft Ass'y | Includes items 1 to 8

Crankshaft Ass'Y | Includes items 1 to 8 / 800 SDI

Crankshaft Ass'y | Includes 1 to 8

Ball Bearing 6207 | With drive pin

Oil Seal

Ball Bearing | With drive pin

Washer

Ball Bearing | With drive pin

Oil Seal | Included in gasket kit

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

Woodruff Key

Needle Bearing

Piston Ass'y With Rings, 71.87 mm | Includes 13 to 14

Piston 81 | Includes 13 to 14 This part replaces 420889456.

Semi-Trapez Ring

SEMI-TRAPEZ RING - Call your local BRP dealership

Piston Pin

GUDGEON PIN - Call your local BRP dealership

Piston Circlip

Ball Bearing 6207 | With drive pin

Oil Seal

CENTRAL GEAR - Call your local BRP dealership

CRANKSHAFT PTO - Call your local BRP dealership

CRANKSHAFT (PTO) - Call your local BRP dealership This part replaces 420819032.

Crankshaft, Mag Side

CRANKSHAFT (MAG SIDE) - Call your local BRP dealership | 800 SDI

KIT-ROD REPAIR MAG-SIDE - Call your local BRP dealership This part replaces 420684653.

KIT-ROD REPAIR PTO-SIDE - Call your local BRP dealership This part replaces 420684654.

Loctite 243, 10 ml

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Sealant Loctite 648

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

Petamo Grease, GHY133N, 400 g

Isoflex Grease, TOPAS NB52, 50 g
