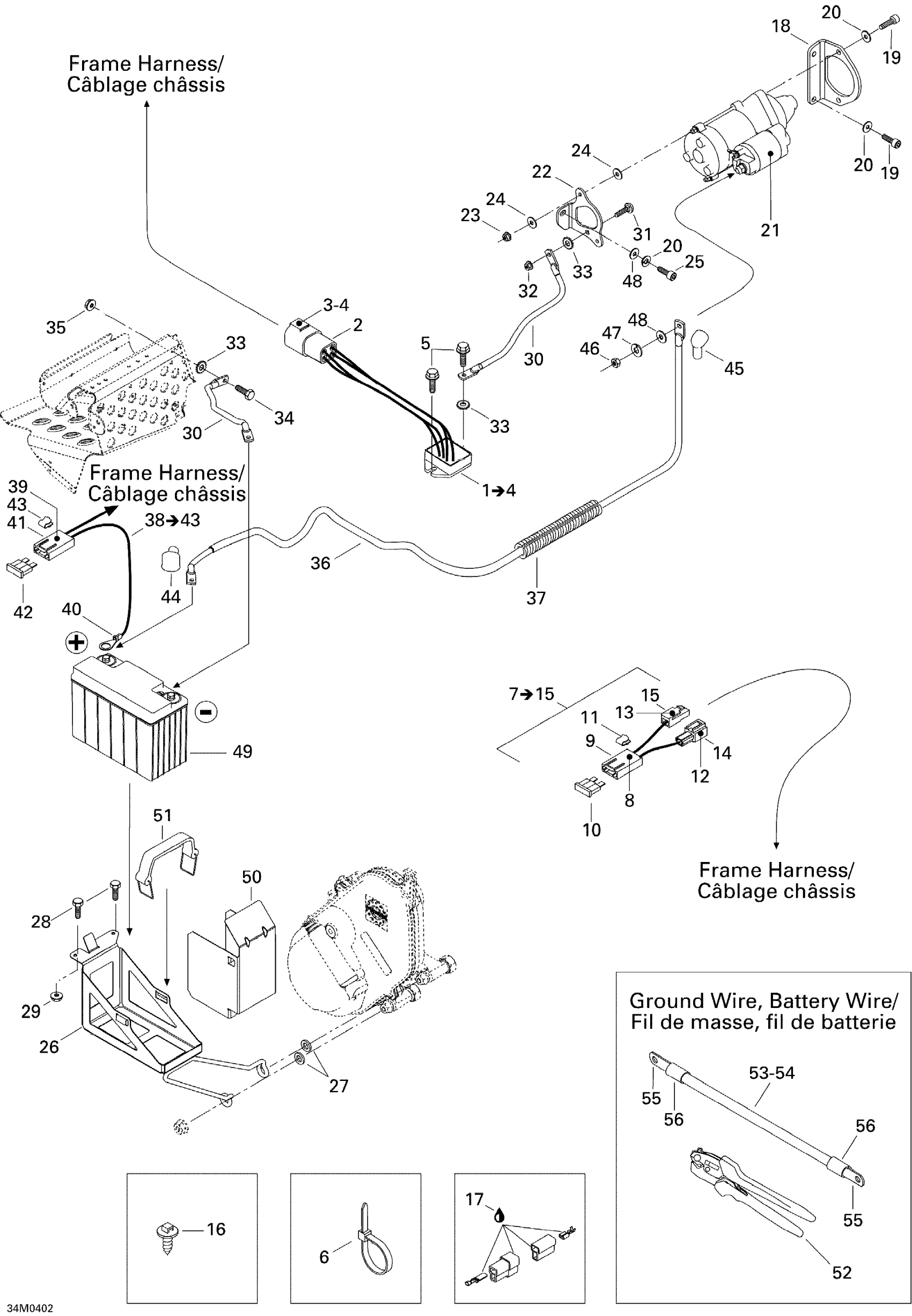

Ski-Doo Legend 550F, 2004 10- Battery, Starter (Legend 550F) Diagram

#

Description
Price

1

Voltage Regulator Ass'y

515175939

$209.99

2

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

3

Male Terminal

515175568

$9.12

4

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

5

Hex. Flange Screw M6 X 16

210261650

$1.67

6

Tie Wrap 94 mm | 4X4

293750001

$1.03

6

Tie-Rap 173 mm

293750009

$1.04

6

Tie-Rap 180 mm

414115200

$0.11

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Female Terminal

409011600

$5.39

9

Fuse Holder

409004000

$8.09

10

Fuse, 20 Amperes

409003900

$3.28

11

CLIP - Call your local BRP dealership

409014200

Unavailable

12

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

13

Female Terminal

515175282

$7.86

14

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

15

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

16

Mount Dart

293730040

$1.04

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

STARTER BRACKET - Call your local BRP dealership | Canada / U.S.A

515175652

Unavailable

19

Socket Head Screw M8 X 20

205082044

$1.15

20

Lock Washer 8 mm

234181401

$0.92

21

STARTER ASS'Y - Call your local BRP dealership | Canada / U.S.A

515175795

Unavailable

22

STARTER SUPPORT MAG SIDE - Call your local BRP dealership | Canada / U.S.A

515175633

Unavailable

23

Elastic Stop Nut M5

232551414

$0.87

24

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

25

Socket Head Screw M8 X 20

205082044

$1.15

26

Battery Support

515175718

Unavailable

27

Washer

503175800

$3.28

28

Hex. Screw M5 X 14

207151444

$0.87

29

Hex. Flange Elastic Nut M5

233251414

$1.04

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Lock Washer Serrated M6

250200041

$1.15

34

Hex. Screw M6 X 16

207161644

$0.74

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Was 409901700 Tubing (9 mm)

219704399

$84.99

38

Battery Fuse Wire | Includes 21 to 22

515175489

$16.86

39

Female Terminal

409004489

Unavailable

40

Open Barrel

278000992

$2.21

41

Fuse Holder

409004000

$8.09

42

Fuse, 30 Amperes

410917200

$3.28

43

CLIP - Call your local BRP dealership

409014200

Unavailable

44

Protection Cap

570151000

$21.99

45

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

46

Hex. Nut M8

232081414

$0.72

47

Lock Washer 8 mm

234181401

$0.92

48

Flat Washer 8 mm

234081410

$0.83

49

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

50

DEFLECTOR - Call your local BRP dealership

515175643

Unavailable

51

Battery Strap

515176044

$18.49

52

Crimp Plier

529035730

Unavailable

53

Ground Cable Battery, no 6, meter)

278001680

Unavailable

53

Ground Cable Battery, No. 4, Meter

278001681

Unavailable

54

Cable Battery, no 6, meter)

278001690

Unavailable

55

Terminal 45°, Small Hole

278001682

Unavailable

55

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

55

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

55

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

55

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

55

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

55

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

56

Was 710000483 Heat Shrink Tubing

219704447

$78.99
