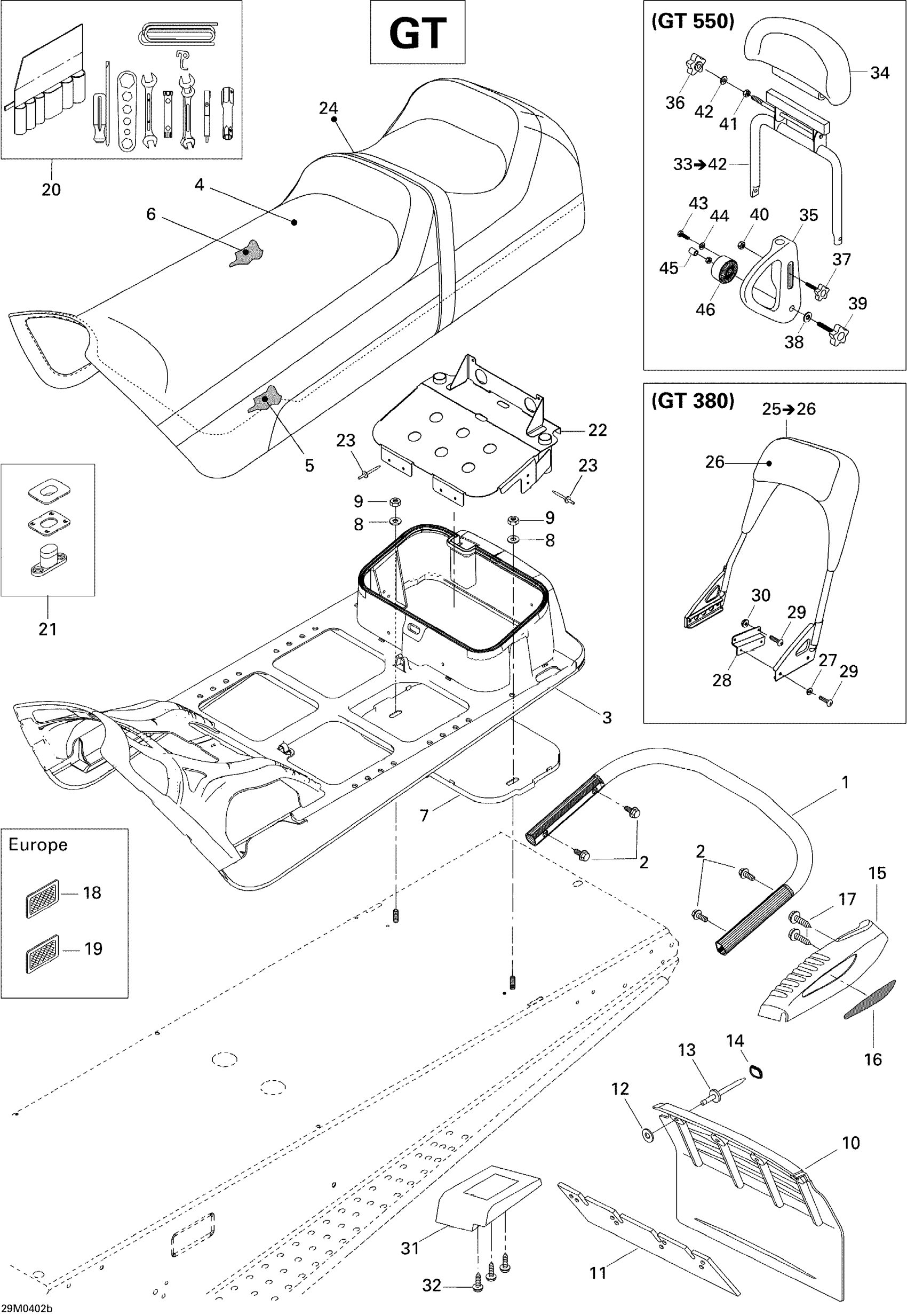

Ski-Doo Legend 550F, 2004 09- Seat (550F GT) Diagram
#
Description
Price
1
Rear Bumper
517243800
Unavailable
3
Sub-Seat
510003980
Unavailable
4
Seat Cover
510004070
Unavailable
5
SEAT FOAM - Call your local BRP dealership
510003944
Unavailable
6
Foam Seat
510004256
Unavailable
7
UNDER CHEST - Call your local BRP dealership
572107601
Unavailable
10
Snow Guard, Europe | SE GT Europe
520000228
Unavailable
11
REINFORCEMENT - Call your local BRP dealership
572108200
Unavailable
14
Cap
415073300
Unavailable
15
RH Moulding
861780300
Unavailable
15
LH Moulding
861780400
Unavailable
16
RH Reflector, Red
516000237
Unavailable
16
RH Reflector, Yellow, Europe | SE GT Europe
516000241
Unavailable
16
LH Reflector, Red
516000238
Unavailable
16
LH Reflector, Yellow, Europe | SE GT Europe
516000242
Unavailable
19
Tool Kit
529035881
Unavailable
21
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
22
Seat Painted Support
510003976
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Seat Belt
510004038
Unavailable
31
RH Footrest | Sport GT / SE GT
572088700
Unavailable
31
LH Footrest | Sport GT / SE GT
572088800
Unavailable
33
Backrest Ass’y | GT 550F, Includes Items 33 to 42
510004072
Unavailable
34
Cover | GT 550F
510004073
Unavailable
35
Arm RH | GT 550F
510003542
Unavailable
35
Arm LH | GT 550F
510003607
Unavailable
36
Fem. Handle M8 x 1.25 mm | GT 550F
510003532
Unavailable
38
WASHER - Call your local BRP dealership | GT 550F
732900050
Unavailable
39
Male Handle M12 x 50 mm | GT 550F
510003534
Unavailable
40
Hex. Nut | GT 550F
510003576
Unavailable
41
Hex. Nut | GT 550F
510003578
Unavailable
42
Lock Washer | GT 550F
510003584
Unavailable
45
Hose | GT 550F
510003628
Unavailable
46
Pivot (40 Tooth) | GT 550F
510003543
Unavailable
