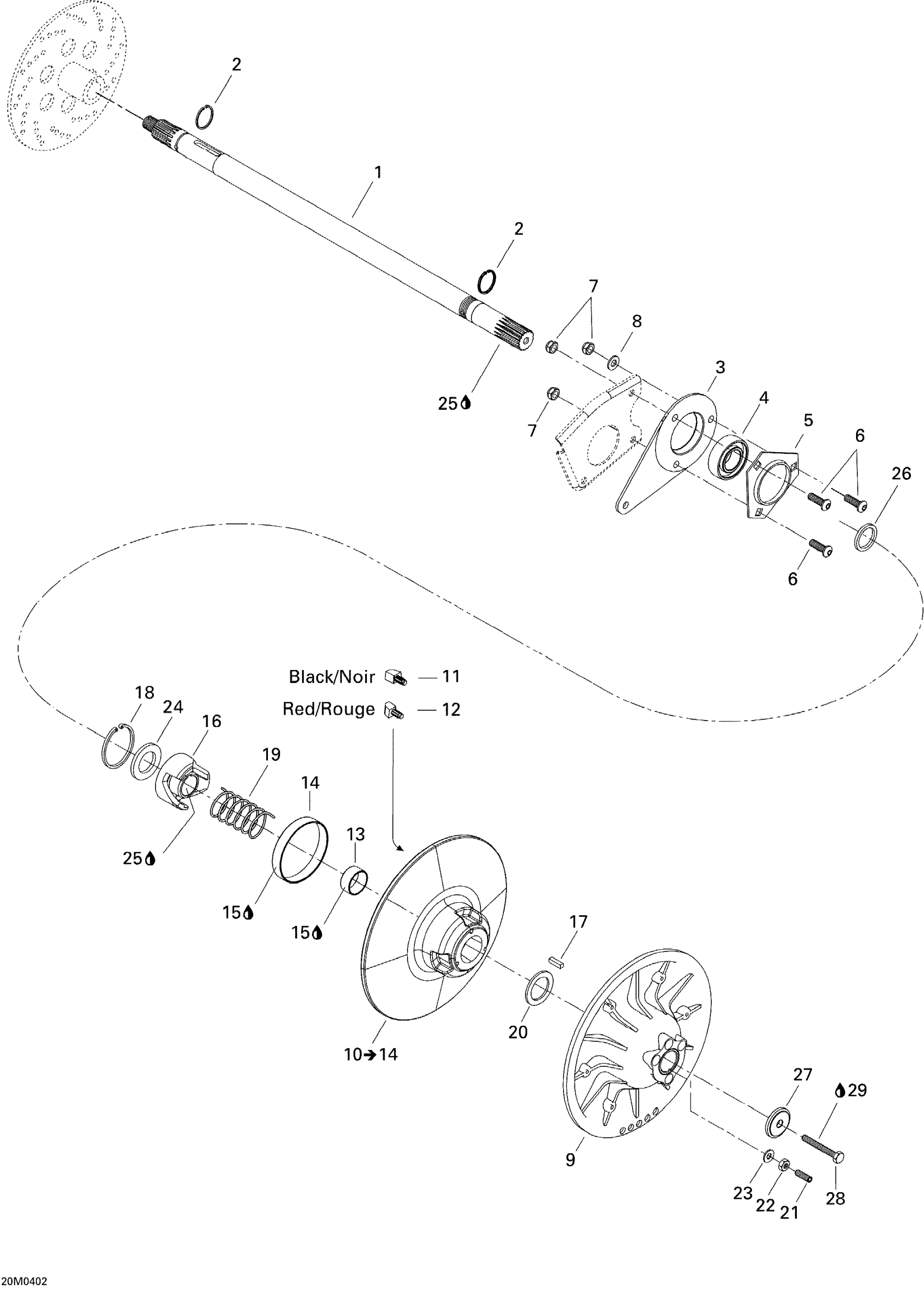

Ski-Doo Legend 550F, 2004 05- Driven Pulley (550F) Diagram
#
Description
Price
1
COUNTERSHAFT - Call your local BRP dealership | 550F
504151858
Unavailable
4
BALL BEARING - Call your local BRP dealership
504152008
Unavailable
5
FLANGE - Call your local BRP dealership
501025000
Unavailable
6
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership
205482546
Unavailable
9
Fixed Flange
417126663
Unavailable
10
Sliding Flange Ass’Y
417126550
Unavailable
11
Slider Shoe, Front
417126538
Unavailable
12
SLIDER SHOE, REAR - Call your local BRP dealership
417126539
Unavailable
13
CUSHION - Call your local BRP dealership
417126515
Unavailable
14
Bushing
417126562
Unavailable
16
Cam
417126680
Unavailable
17
Key
414820800
Unavailable
18
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
19
RELEASE SPRING, WHITE - Call your local BRP dealership
504152070
Unavailable
20
Thrust Washer
504141900
Unavailable
21
Socket Set Screw M6 X 30
206263044
Unavailable
23
WASHER - Call your local BRP dealership
420245370
Unavailable
24
Washer
417126555
Unavailable
25
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
28
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
